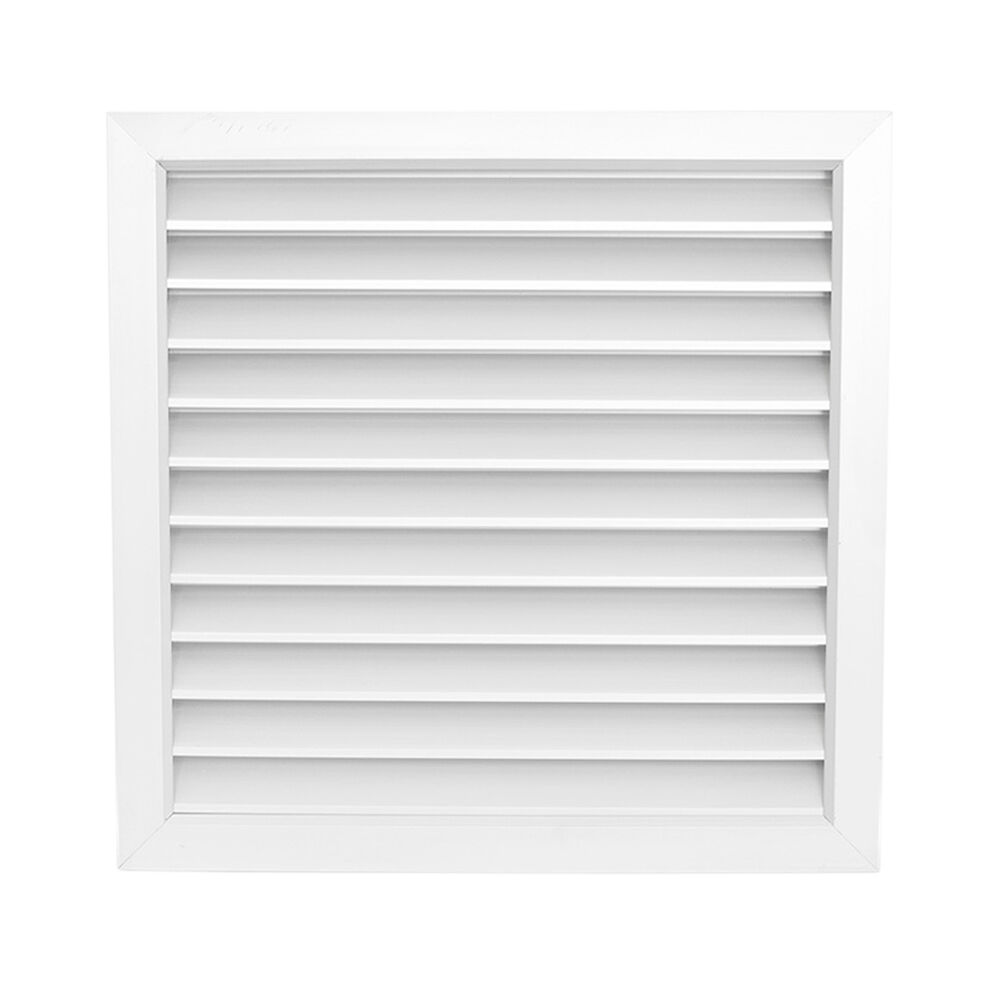

Airfoil DG Door Grille

Door Grille is commonly used in office, hospital, and commercial building doors to facilitate air transfer while preserving privacy

Door Grille Function - allows air to flow between rooms while maintaining privacy and minimizing noise through internal doors.

Features:

• Constructed from lightweight, corrosion-resistant anodised aluminum
• Inverted?V blades extruded at 22?mm centres, providing approximately 50?% free area for efficient airflow with low noise

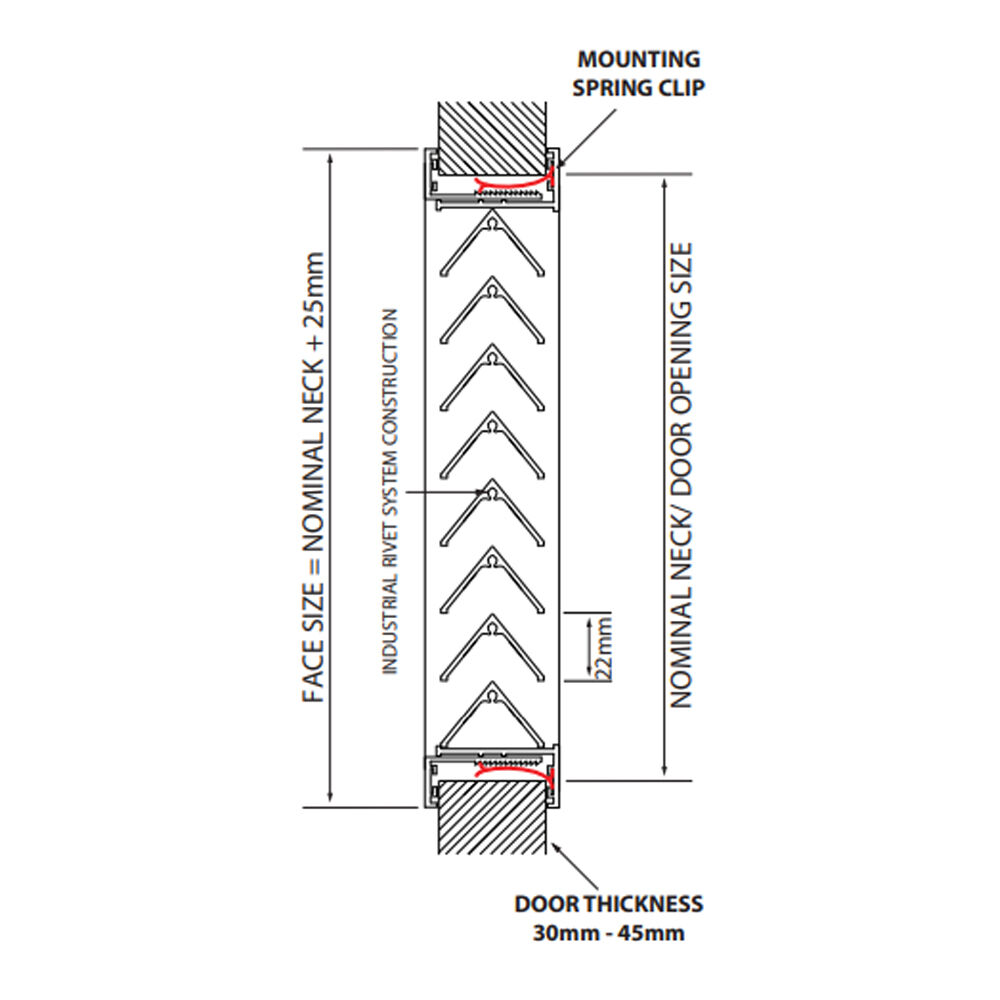

• Includes an adjustable telescopic backframe with spring-clip fittings for a flush, secure door installation
• Versatile application in doors, walls, or partitions, suitable for both commercial and residential settings

Specifications:

• Door Thickness: 30mm - 45mm
• Available Size (Nominal Neck):
  • 450mm x 150mm
  • 450mm x 450mm
  • 600mm x 150mm
  • 600mm x 200mm
  • 600mm x 250mm
  • 600mm x 300mm
  • 600mm x 350mm
  • 600mm x 400mm
  • 600mm x 450mm
  • 600mm x 500mm
  • 600mm x 600mm
• Spaced Center V Type Blades: 22mm
• Finish: Clear Anodised
