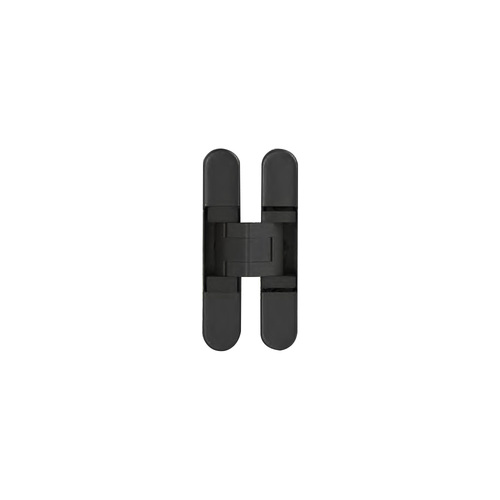

Bellevue Ceam 3D Concealed Cabinet Hinge
929BL

Concealed Cabinet Hinge - used on entry and interior doors for both their aesthetics and security, common in cabinetry and furniture.

Concealed Cabinet Hinge Function - Conceals the placement of the hinges by lying flush inside a cabinet door, to give a kitchen cabinet run a smooth finish on the outside.

Quick release: CEAM’s quick release system is revolutionary - once the hinge is installed, you never need touch the door or jamb again. The hinge sits within a cup, the cup is rebated and fixed to the door and jamb, the hinge is then fastened to the cup. As a result, if the door needs to come down, all you do is unscrew the locking bolts and remove the hinge from the cup. The door can be removed and reinstalled for painting and adjustments without damaging timber or paint work, saving time and money.

Features:

• 3D adjustable hinge for cupboards
• Ceam quick release system
• Suitable for high frequency opening doors

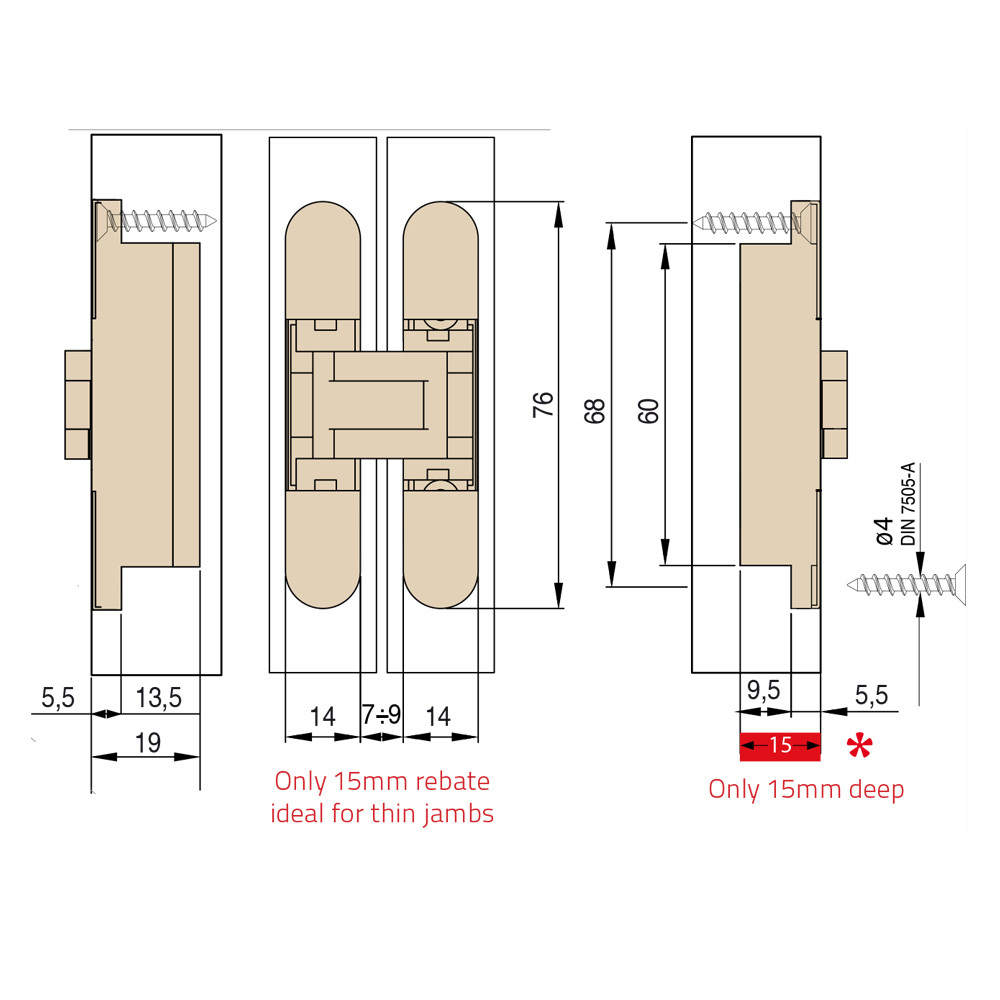

Specifications:

• Min. Door Thickness: 18mm
• Max. Door Weight: 24kg (subject to door size and weight)
• Narrow timber rebate: 15mm (ideal for thin jambs)
• Gap when closed: 2mm Working aperture 180 degrees
• Finish: Matt Black

Note: This product does not ship to New Zealand.
