Bellevue Ceam 3D Invisible Concealed Door Hinge 40kg White BAC1129WH
SKU : BELVBAC1129WH
PLEASE ALLOW FOR A HANDLING TIME OF 3-5 BUSINESS DAYS
YOU SAVE $6.60 (10%)

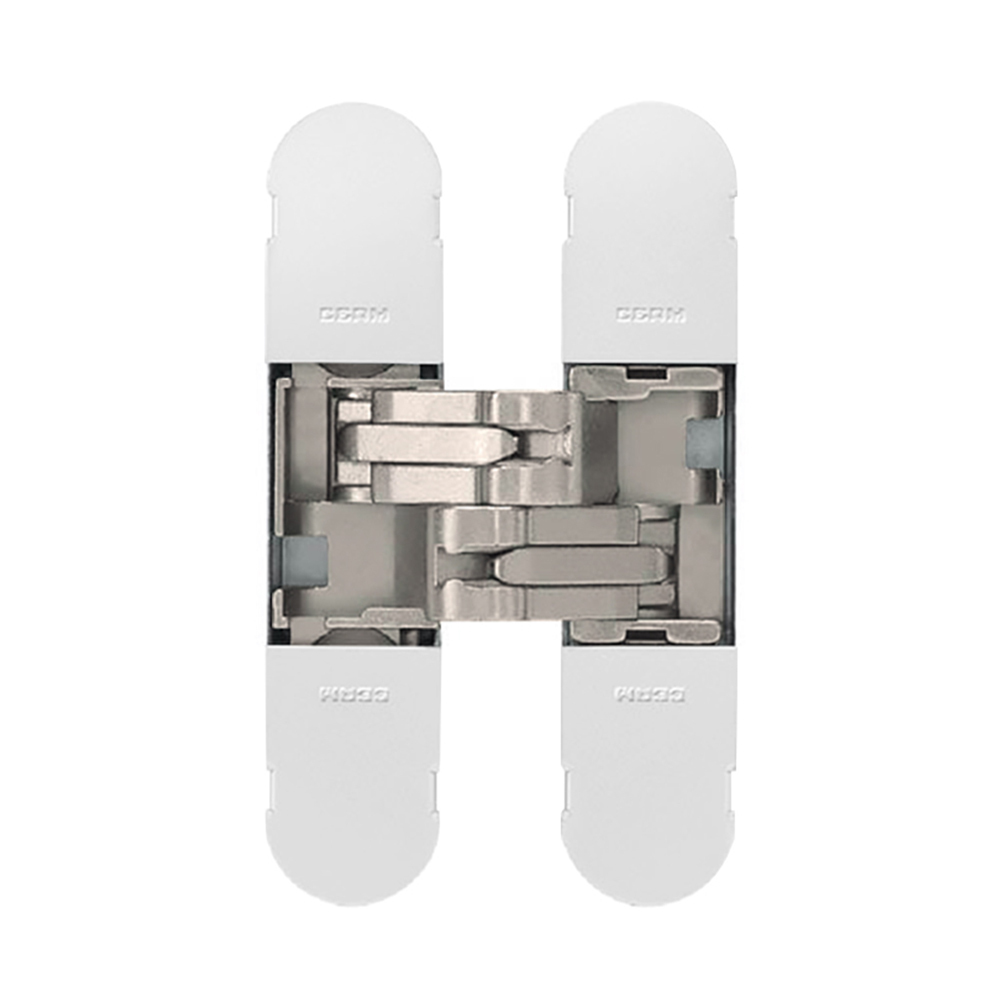

Bellevue Ceam 3D Invisible Concealed Door Hinge
BAC1129WH
Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.
Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.
Features:
- Load capacity up to 44kg @ 900mm wide doors
- Only 18mm deep (rebate ideal for cupboards & high frequency opening doors)
- Fully 3D adjustable system on three axis (S.T.A.R.S.)
- Ceam quick release system
- 100% made in Italy for over 50 years
- Router template available for easy installation and slot symmetry
- Suitable for internal & external (under cover) locations
- Suitable for residential, commercial & industrial locations

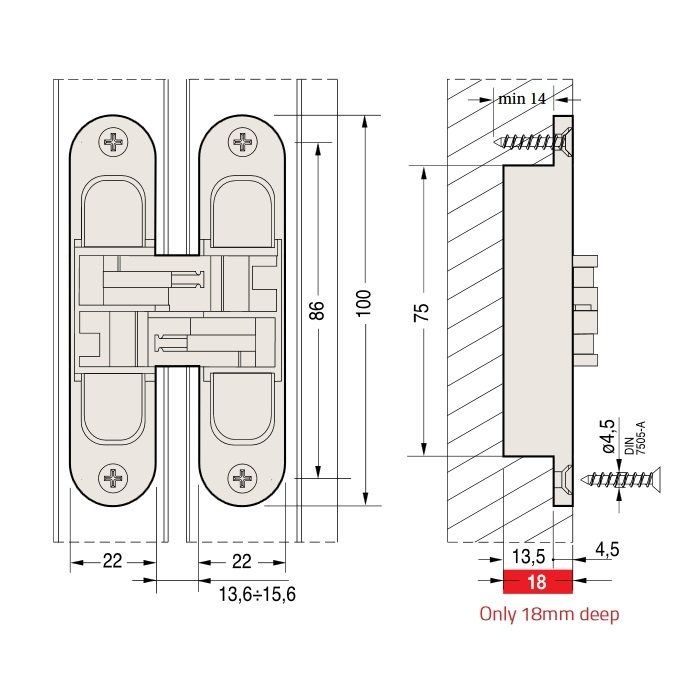

Specifications:
- Height: 100 mm
- Width: 22 mm
- Depth: 18 mm
- Suitable For Doors: Wood, Alluminium, Steel
- Minimum Door Thickness: 28mm
- 3D Adjustable: Yes
- Finish: White
- Sold as Single Hinge

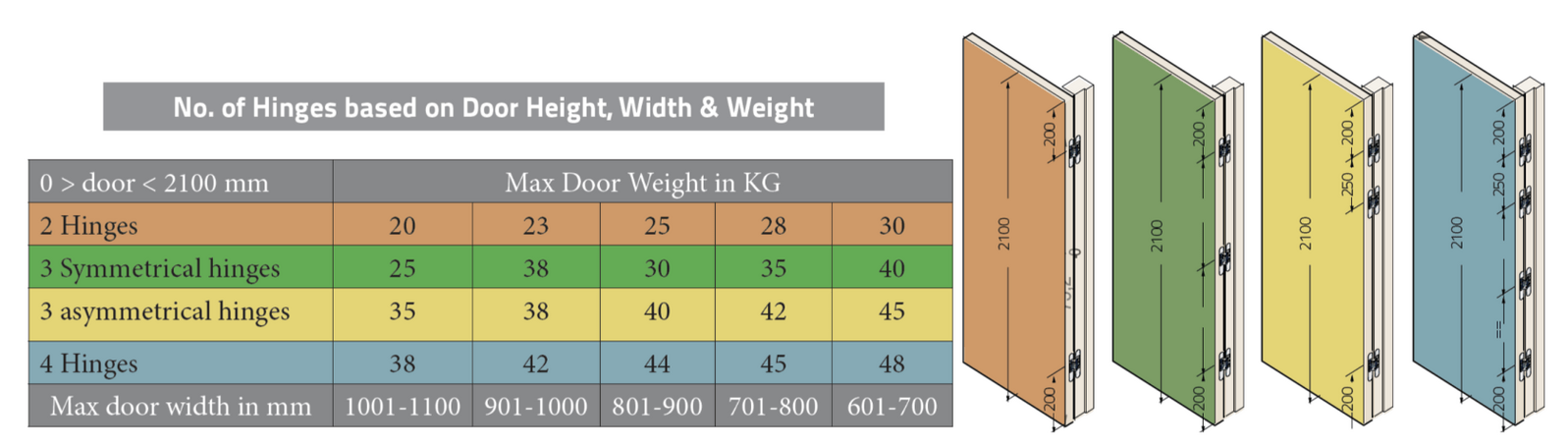

Load Capacity:
- Load capacity 2 hinges: 25 kg
- Load capacity 3 hinges: 30 kg
- Load capacity 3 hinges asymmetrical: 40 kg
- Load capacity 4 hinges: 44 kg
SKU | BELVBAC1129WH |
Brand | Bellevue |
