Brava Metro Glass Door Knob Set
EA3011SS70


BRAVA Metro EA3000 series commercial grade 70mm backset glass door knobset.

Glass door function:

  • Outside key locks and unlocks both knobs.
  • Inside key locks and unlocks both knobs.

Additional info:

  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinders.
  • Incorporates the popular PD 8221 barrels.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin stainless steel.

Features:

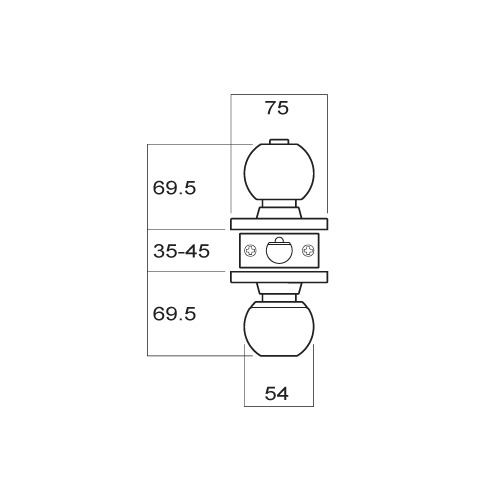

  • Door thickness: 35-45mm
  • Backset: 70mm
  • Max. knob projection: 69.5mm (distance may not include turnsnib)
  • Strike: 70mm x 27mm x 1.2mm
  • Latch: 70mm backset
  • Latch face plate: 57mm x 25mm
  • Cylinder: LW5 profile
  • Door handing: Non-handed knobs
  • Rose: 75mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

SKU LSCEA3011SS70
Brand Brava
