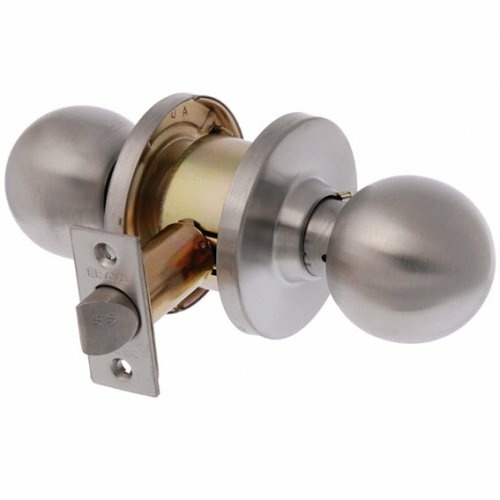

Brava Metro Passage Knob Set
EA3082SS70


BRAVA Metro EA3000 series commercial grade passage knobset 70mm backset.

Passage function:

  • Both outside and inside knobs are always free.

Additional info:

  • Cylindrical fixing.
  • Boxed and colour coded.
  • Finished in satin stainless steel.

Features:

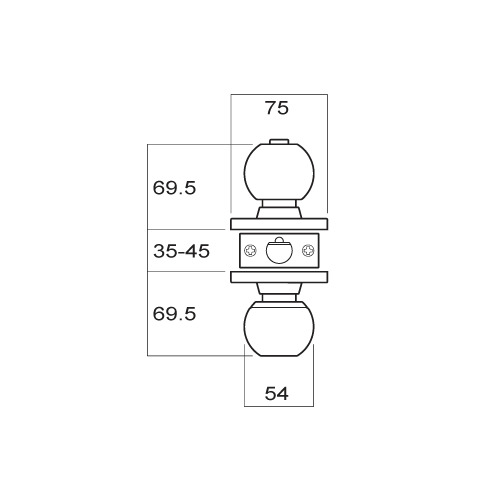

  • Door thickness: 35-45mm
  • Backset: 70mm
  • Max. knob projection: 69.5mm (distance may not include turnsnib)
  • Strike: 70mm x 27mm x 1.2mm
  • Latch: 70mm backset
  • Latch face plate: 57mm x 25mm
  • Door handing: Non-handed knobs
  • Rose: 75mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

SKU LSCEA3082SS70
Barcode # 9329673012648
Brand Brava
