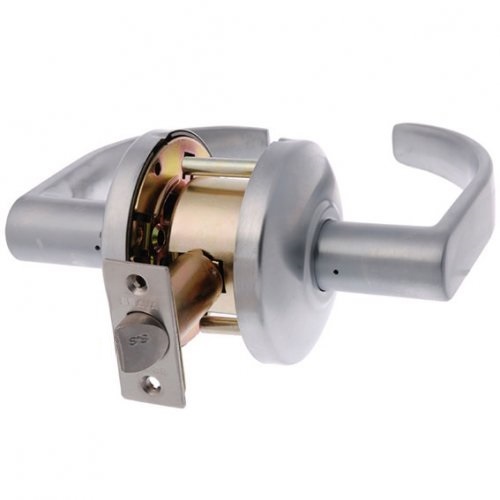

Brava Metro Passage Lever Set
EV8082SC70


BRAVA Metro EV8000 series commercial grade passage leverset with external clutching lever.

Passage function:

  • Both outside and inside levers are always free.

Additional info:

  • Screw post to prevent lock rotation are removable.
  • Carolina lever design.
  • Cylindrical fixing.
  • Boxed and colour coded.
  • Fire rated.
  • Finished in satin chrome.

Features:

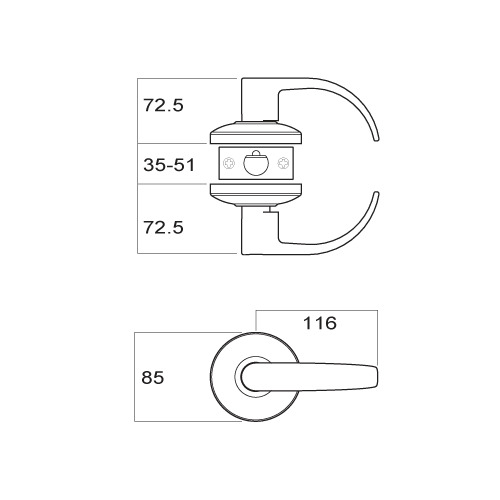

  • Door thickness: 35-51mm
  • Backset: 70mm
  • Max. knob projection: 72.5mm (distance may not include turnsnib)
  • Strike: 28mm x 70mm x 2mm
  • Latch: 70mm (12.7mm throw)
  • Latch face plate: 57mm x 25mm
  • Door handing: Non-handed levers
  • Rose: 85mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

SKU LSCEV8082SC70
Barcode # 9329673010408
Brand Brava
