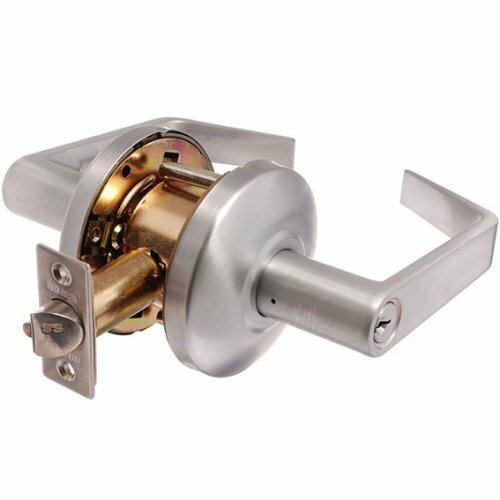

Brava Metro Storeroom Lever Set Keyed Alike
EV6062SC70


BRAVA Metro EV6000 series commercial grade storeroom leverset with external clutching lever.

Storeroom function:
  • Outside lever always clutching, key retracts the latch.
  • Inside lever free at all times.
Additional info:
  • Clutching lever feature to prevent forcing.
  • Screw post to prevent lock rotation are removable.
  • Charlotte lever design.
  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinder.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • Keyed alike.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin chrome.

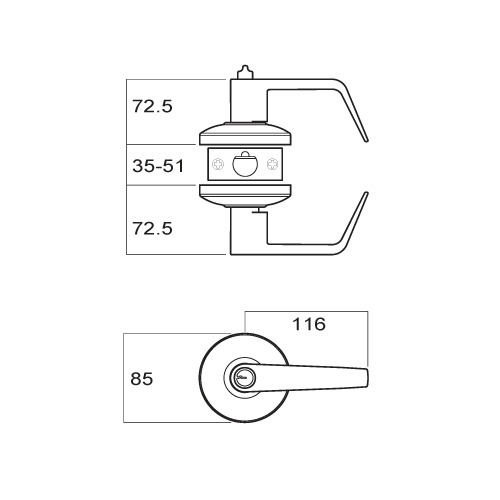

Features:
  • Door thickness: 35-51mm
  • Backset: 70mm
  • Max. knob projection: 72.5mm (distance may not include turnsnib)
  • Strike: 28mm x 70mm x 2mm
  • Latch: 70mm (12.7mm throw)
  • Latch face plate: 57mm x 25mm
  • Cylinder: LW5 profile
  • Door handing: Non-handed levers
  • Rose: 85mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Please note if buying more than 1 lock:
This listing is for 'keyed alike' (KA) locks, for example:
- if you buy 5 locks, all 5 locks can be opened with the 1 same key

If you need 'keyed to differ' (KD) locks, please search for our other listing with 'KD' or 'keyed to differ' in the title.
SKU LSCEV6062SC70KA
Brand Brava
