Brio Quick Run 120 Door Track Kit Set
QR120Z-C30F/1

Top Track Sliding Door incredibly popular because they are stylish and efficient as space-saving doors for separating rooms or partitioning huge work spaces in homes and offices.

Top Track Sliding Door  Function - doors have rollers attached at the top, you lift them up and place them in the track. The guide on the floor then keeps the door in line as you slide it from one side to the other. Both doors are offset and slide, so one is in front of the other.

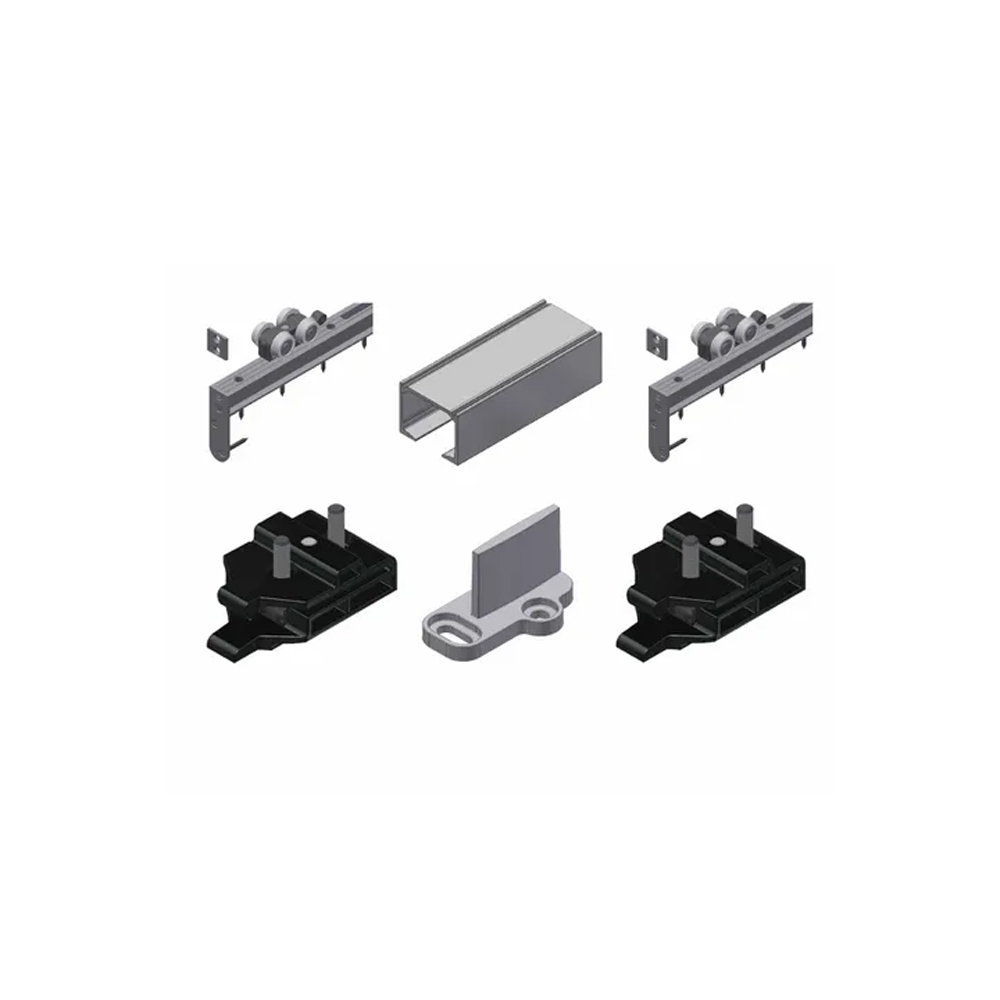

Includes:

  • 1 x Comprises 3000m 120F track
  • 2 x QRZC Door hangers
  • 2 x Clip Stops
  • 1 x Saw cut guide

Features:

  • Widely used in internal residential and commercial applications
  • To accommodate different building designs, panels can slide to one or both sides
  • For ease of operation it is recommended that the panel width should not exceed 75% of panel height
  • Timber panels for interior use can be of flush construction or glazed
  • Timber panels for industrial applications should be framed, ledged and braced
  • Metal panels should be constructed of box section, channel or angle framing, well braced and clad with flat or corrugated sheets

Specifications:

  • Size: 3000mm
  • Maximum Panel Weight: 120kg
  • Minimum Panel Thickness: 32mm
  • Maximum Panel Width: 950mm
SKU BROQR120ZC30F1
Barcode # 9312574248926
Brand Brio
