Briton Floor Spring
BNT-5004/90

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

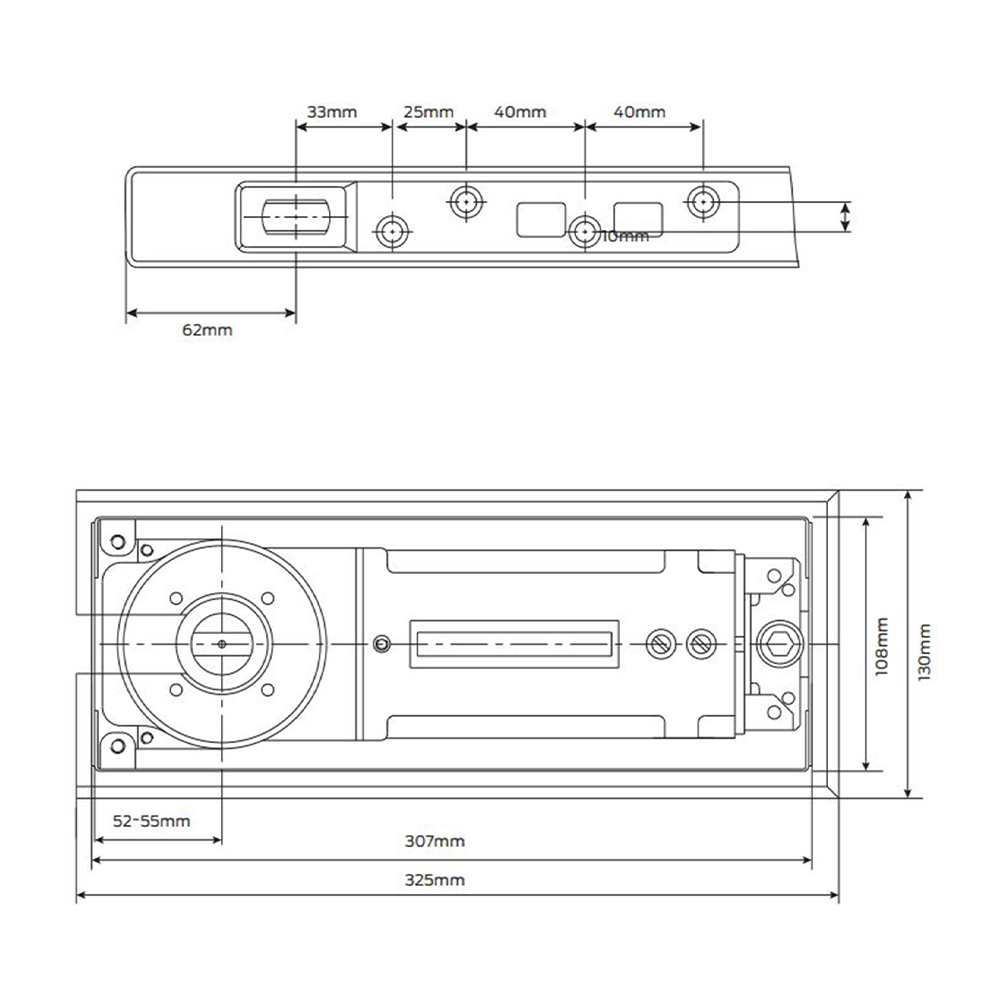

Specifications:

• Max Weight: 100kg
• Max Door Width: 1100mm
• Function: Hold Open 90 Degrees
• Strength: EN4
• Max Opening Range: 130 Degree
• Length: 307mm
• Width: 108mm
• Finish: Satin Stainless Steel
