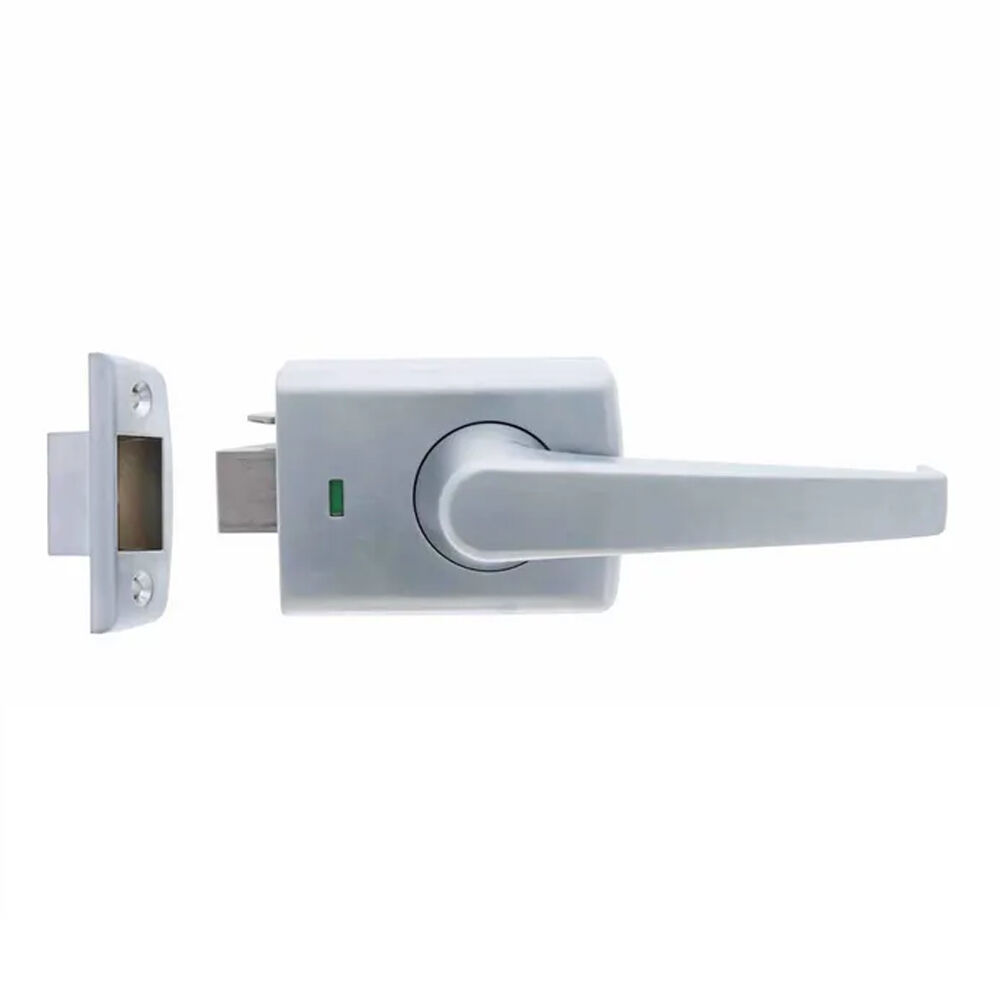

Carbine Alpha Deadlatch Long Lever



DeadLatch are commonly found on front doors that don’t have handles or if they do they are purely there for aesthetics.

DeadLatch Function - is a locking mechanism that locks automatically without having to turn a knob or use a key.

Features:

  • Single-cylinder deadlatch with lever handle on the inside
  • High-security rim lock design suitable for residential and light commercial use
  • Deadlatching action prevents forced entry when the door is closed
  • Lever handle enables quick egress from the inside
  • Compatible with most standard strike plates
  • Sleek, modern appearance to suit a variety of doors
  • 45 degree lever rotation to unlock the door?
  • 45 degree knob rotation to unlock the door
  • Lever compliant with BCA codes and AS1428.? Lever Offset (distance between door face and inside of lever) meets requirement for disability
  • Lever has a return on the end to meet the requirement for disability?
  • Fire rated up to 2 hours on E-core as a primary or secondary lock with the hold back disabled, egress regulations still apply
  • High grade zinc alloy for the lock casing, knob and lever, marine grade stainless steel for the latch bolt and snib, has a cut resistant latch bolt and a reinforced strike with extended fasteners for increased frame strength
  • Supplied with a 5 pin external CRC rim cylinder and a 5 pin internal CA-DL3 cylinder but can easily be changed to 6 pin versions. And, for additional ease it boasts an easy internal cylinder removal and replacement
  • Adjustable strike
  • Suits left and right hand opening doors

Specifications:

  • Lockable Hold Back Function: when holdback has been activated by the knob or lever, it can be locked in this mode by the internal key
  • Door Thickness: 30mm - 50mm
  • Latch Projection: 19mm
  • Door Gap: 1mm - 3mm
  • Fixing: Concealed Fix
  • Cylinder: Single cylinder (keyed entry from outside, lever on inside)
  • Backset: 60mm
  • Door Compatibility: Timber or metal doors
  • Fire Rating: Compliant for certain fire doors
  • Function: Key-lockable from outside, lever-operated from inside
  • Included: Lock body, external cylinder, internal lever, screws, strike plate
  • Available Strike Option:
    • Lever, Timber Frame
    • Lever, Metal Frame Strike
    • Lever, Open Out Strike
  • Finish: Satin Chrome
SKU LAKCRD_
Brand Carbine
