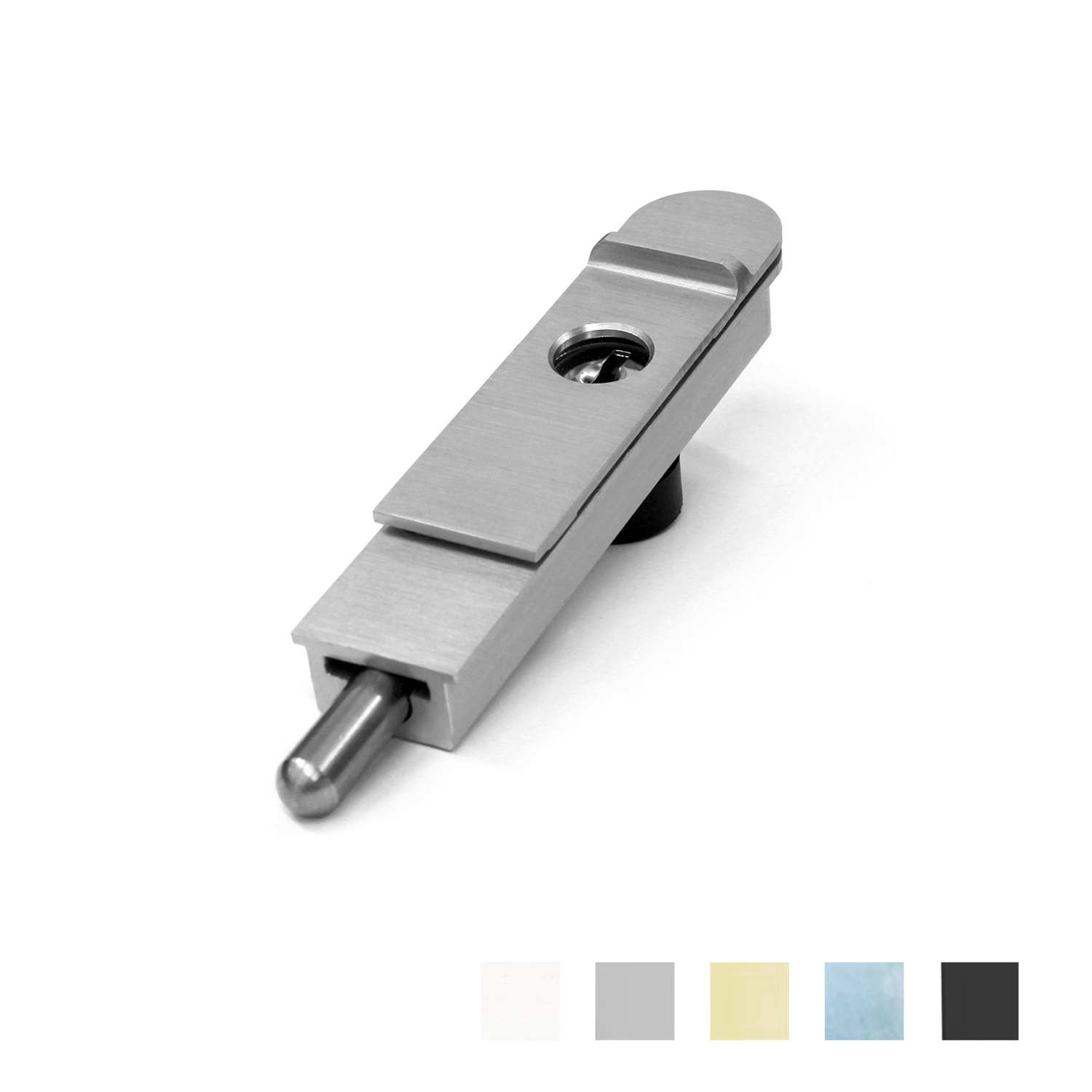

Centor DM Dropbolt Keyed
DBMI100KRW

Drop Bolt perfect for applications where an electric strike is impractical, such as swing-through, double-action doors.

Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch. The previous door locking system's locking plate is replaced by an electric door strike system.

Features:

• Half the length (100mm) of the smallest door dropbolt system and correspondingly narrow

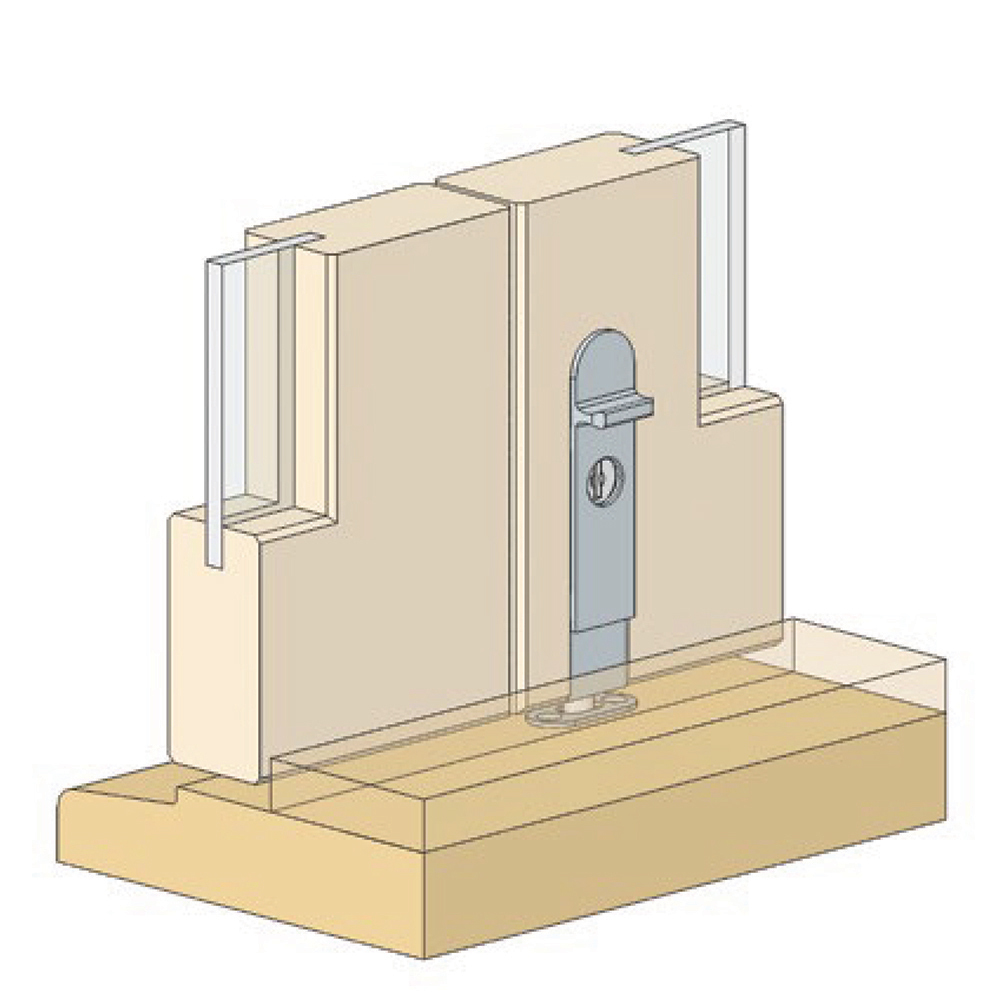

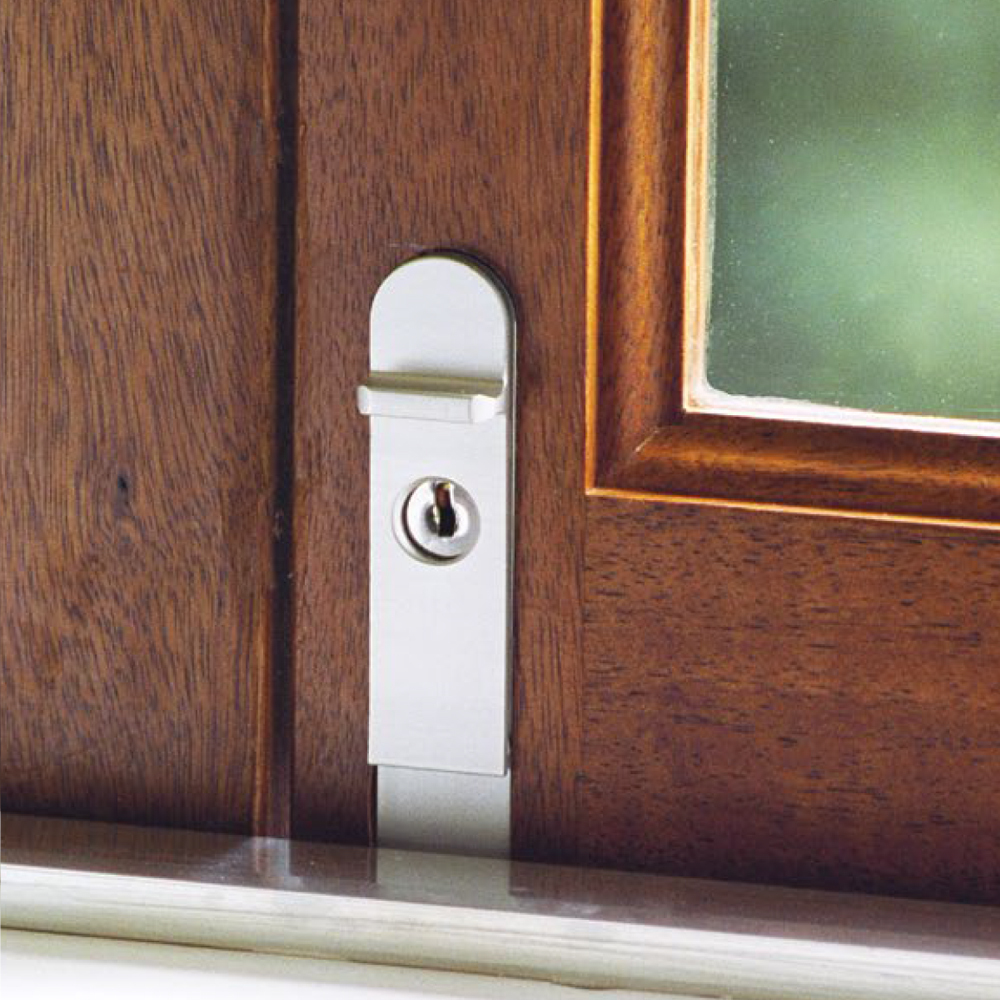

• Designed to flush-mount into window frames with minimal visual impact

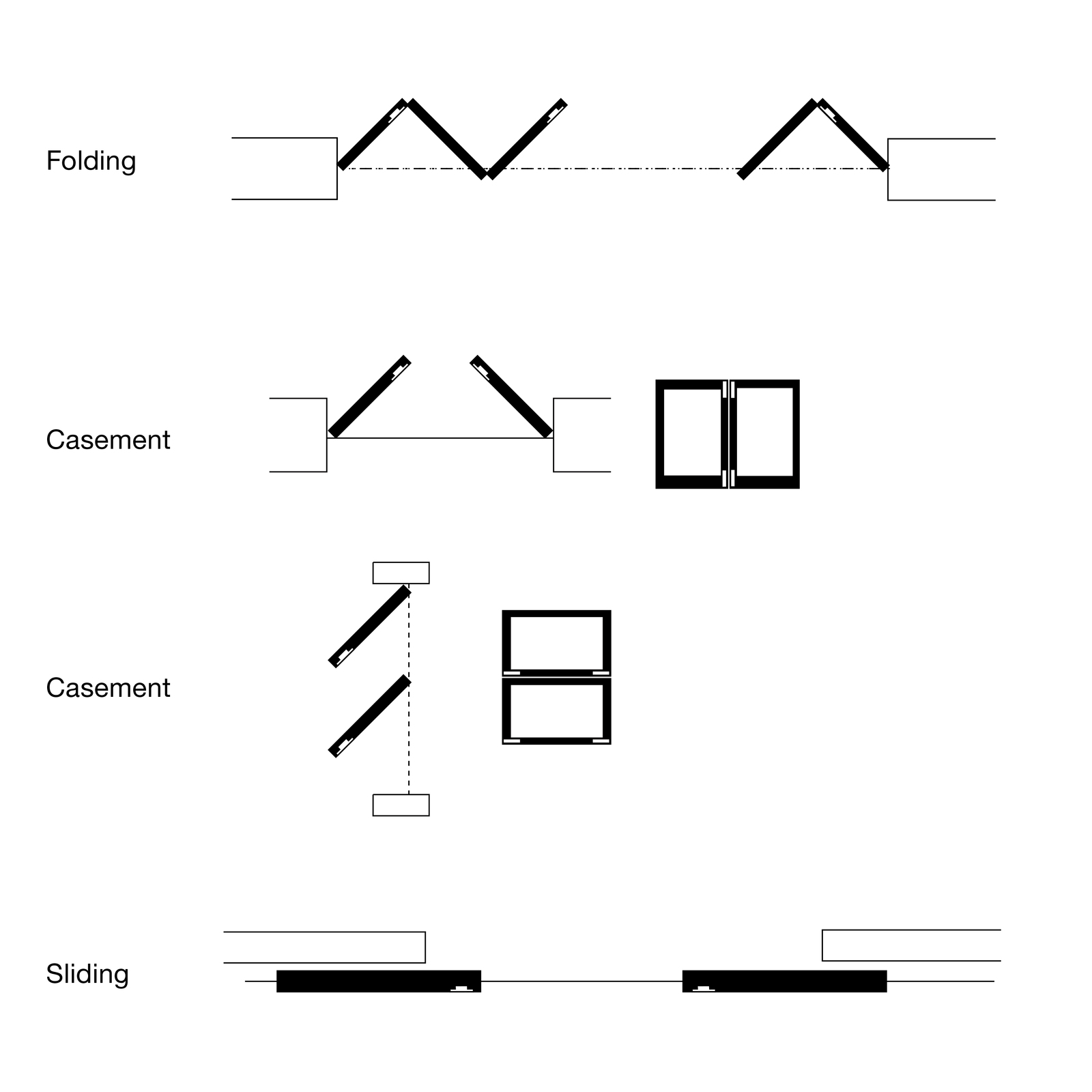

• Suitable for locking casement, awning, sliding and bifold windows
• At 100mm long, it is half the size of the DM bolt and is designed to flush-mount into the window frame with minimal visual impact
• Can be supplied keyed alike to your DF or DH locks and can be re-keyed to other window locks in the house by any professional locksmith

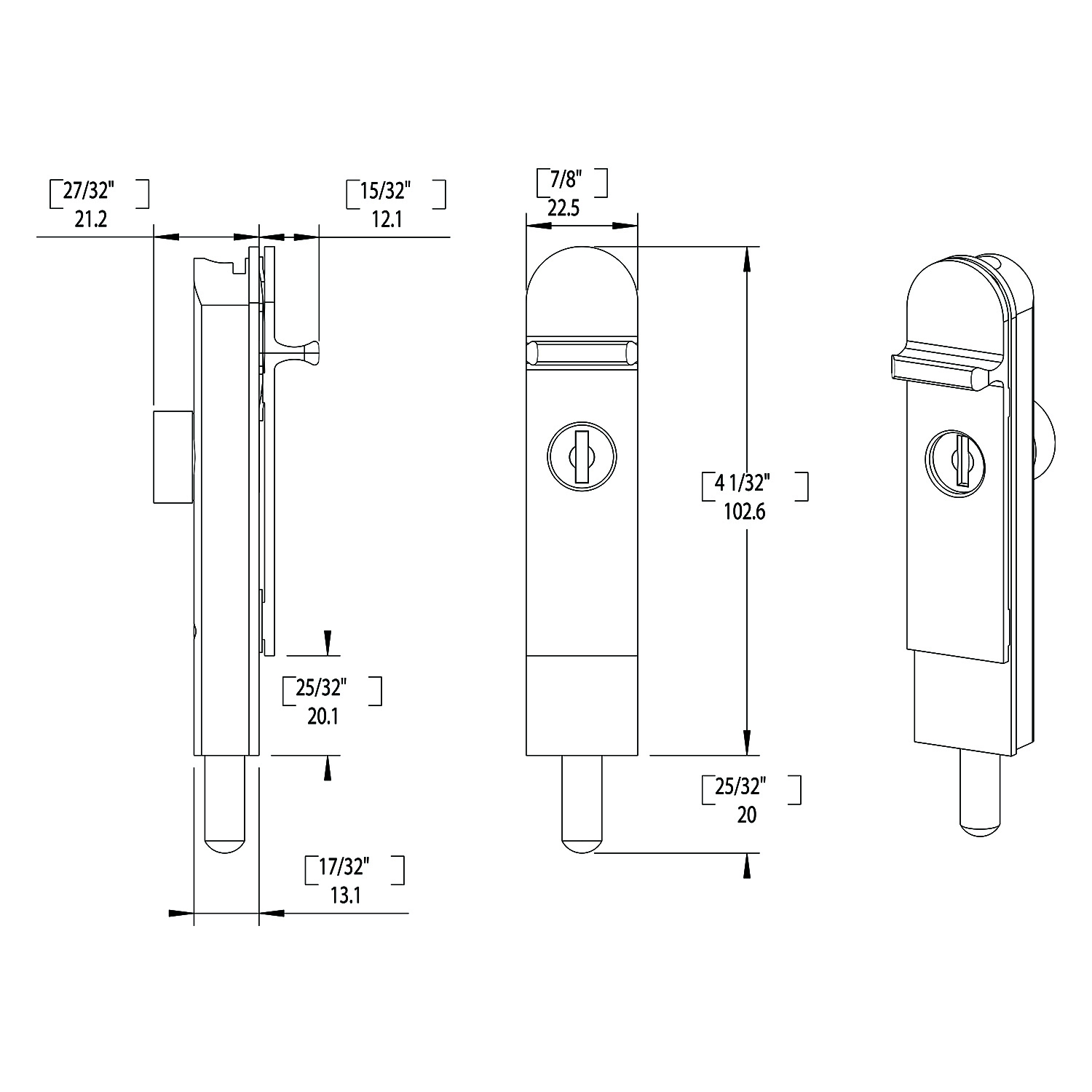

Specifications:

• Max wind load: 200kg force
• Min door thickness: 35mm
• Security: Keyed
• Dropbolt lengths: 100mm
• Throw length: 20mm
• Finish: White Powdercoat
