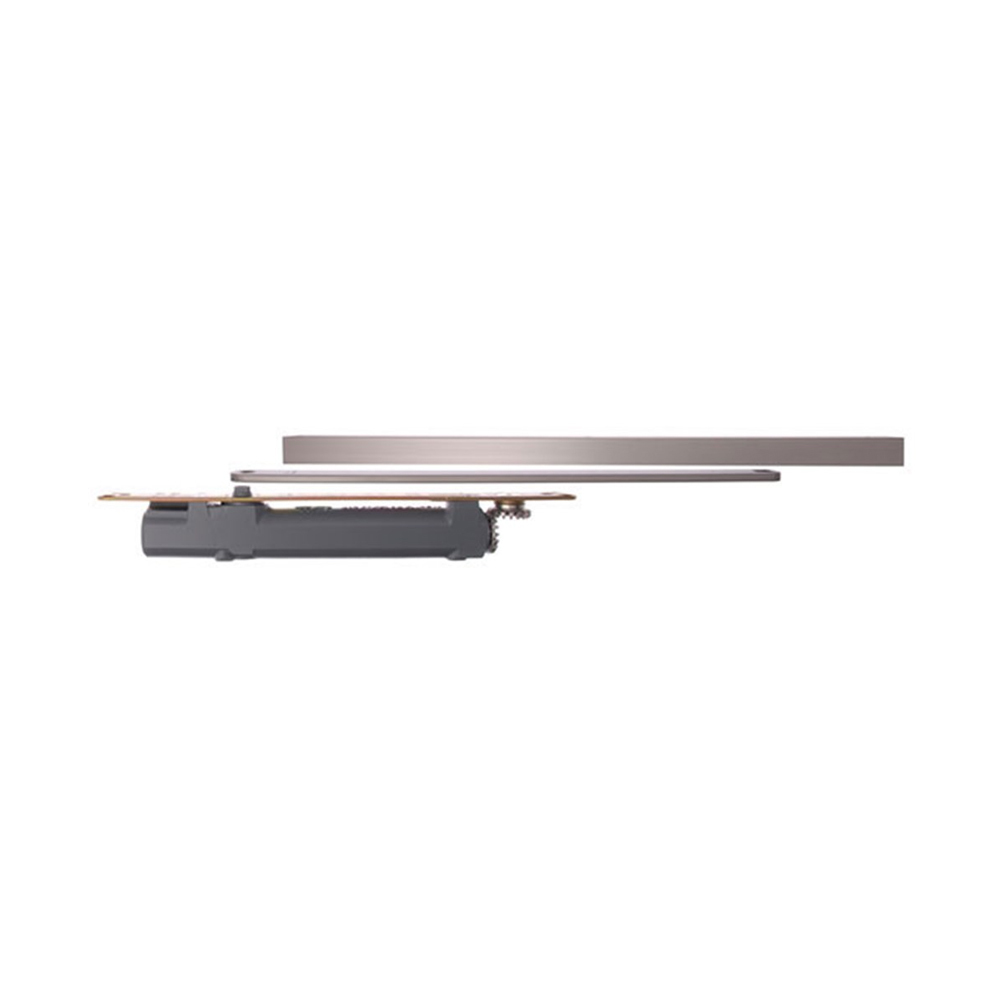

Dorma ITS96 EN2-4 Door Closer Cam Action with Arm
ITS9624G96N

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• The Dorma ITS96 EN 2-4 non handed concealed door closer with slide channel arm has variable closing force adjustable by screw, closing and latching speed adjustable by valve, adjustable delayed action and mechanical cushioned limit stay
• Max. door opening angle of approximately 120 Degrees
• Its compactness means that the ITS 96 system can be installed in virtually all doors with a leaf thickness of 40 mm or more
• Closing force variable by means of adjustable screw
• Closing speed adjustable by means of valve
• Latching speed adjustable by means of valve

Specifications:

• Spring Strength: EN2-4
• Suitable for Standard Doors Installation: up to 1100 mm (W)

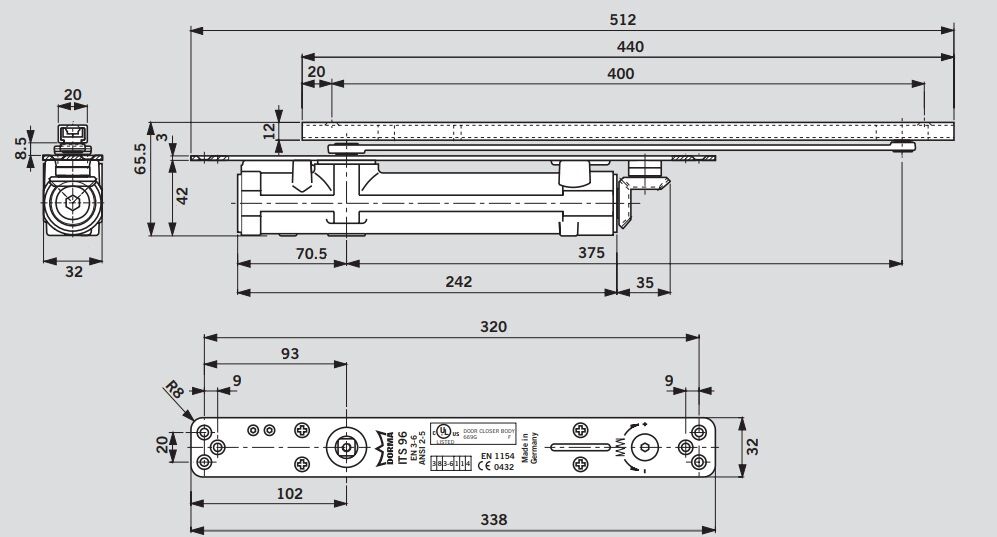

• Length: 277mm
• Width: 32mm
• Height: 42mm
• Max. Door Leaf Weigh: 130 kg
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Cam Action Closer: Yes
• Has Delay Action: Yes
• Has Holdopen: No
• Has Slide Arm: Yes
• Parallel Arm Bracket Included: No
• Finish: Silver
