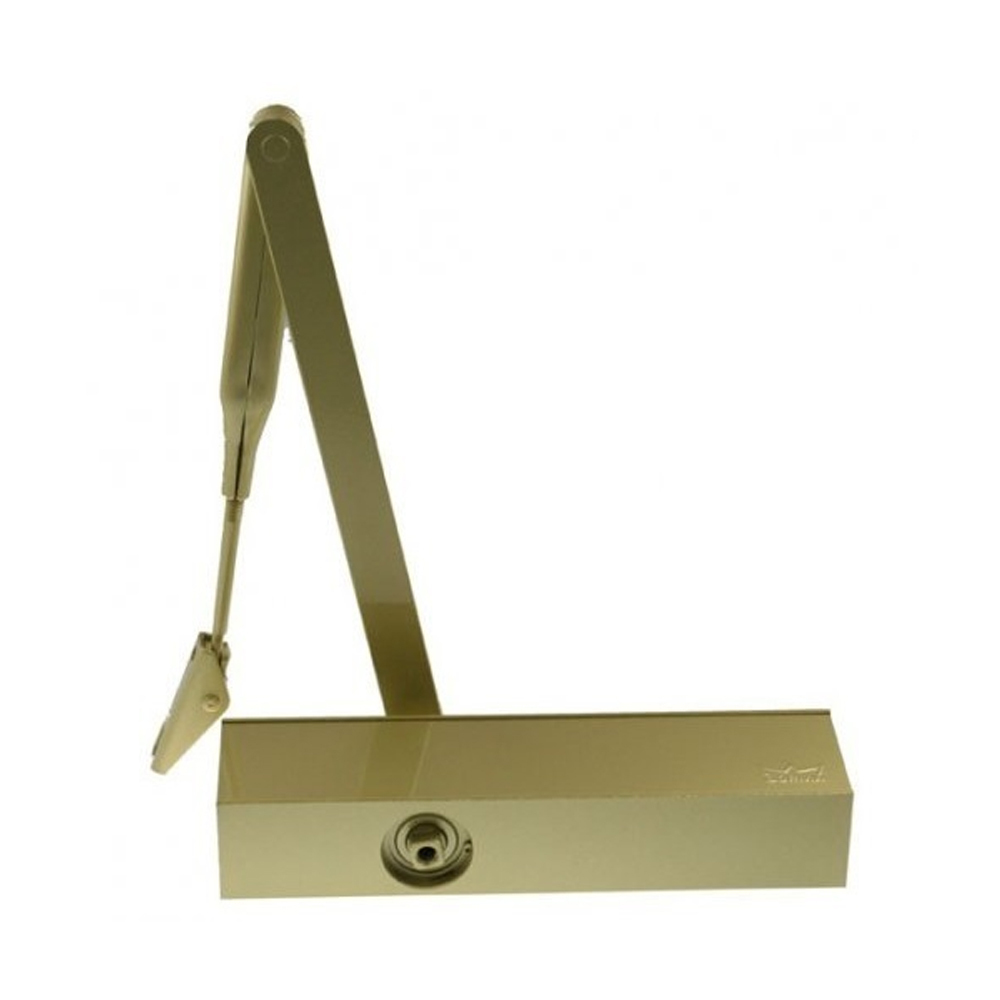

Dorma TS73 EN1-4 Door Closer

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

  • Ideal for commercial applications
  • Non-handed closer suited to internal doors including fire doors.


  • Overhead surface mounted door closer
  • Power adjustable with a screw, closing speed (180 degrees - 15 degrees) and latching speed (15 degrees - 0 degrees) adjustable with separate valves with final adjustment by standard arm.
  • Adjustable latching action by valve
  • Adjustable delay action
  • Includes parallel arm bracket
  • Parallel arm mounting doors up to 950mm
  • Standard arm assembly


  • Closing Force: EN1-4
  • Backcheck: Self regulating or adjustable by valve
  • Standard Doors: Up to 1100mm

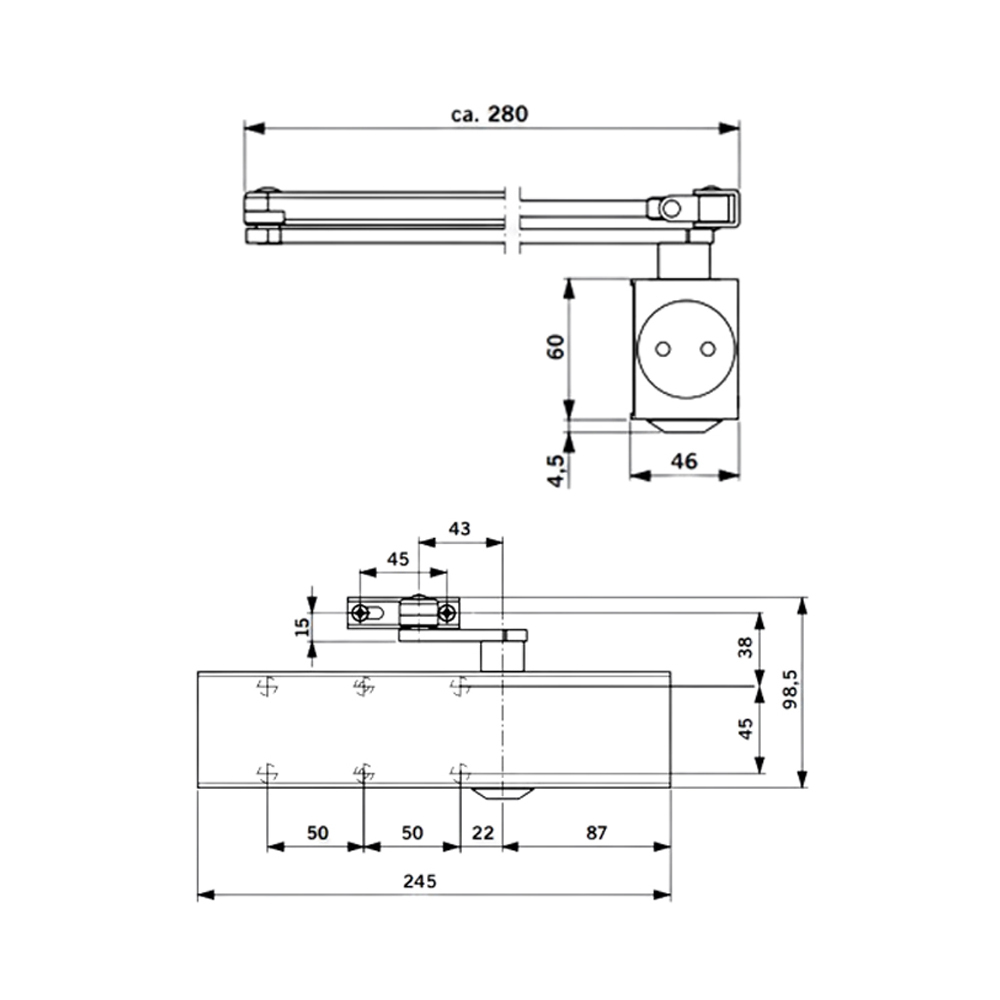

  • Length: 245mm
  • Width: 46mm
  • Height: 60mm
  • Weigth: 1.7kg
  • Finish: Gold


  • Fire Rated: Approved to AS1905 Part 1 Fire Resistant Doors. Tested to EN1154
SKU DORM37023302
Brand Dorma
