Dorma Door Closer TS93G EN1-5 Pull Side with Arm Fire Rated
43100519

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Suitable for fire and smoke check doors where the cushioned limit stay is also used.
  • Suitable for single and double doors installation up to 1250 mm (W).
  • Closing force Adjustable EN1-5
  • For fire and smoke check doors
  • Handed design
  • Slide Channel
  • Closing force variable by means of adjustment screw
  • Latching and closing speed adjustable by valve
  • Back Check
  • Delayed action
  • Push side door leaf fixing/ Pull side transom fixing

Technical Specifications:

  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Finish: Black
  • Backcheck: Yes
  • Delay Action: Yes
  • Holdopen: No
  • Slide Arm: Yes
  • Spring Strength (CLOSER2): EN1-5
  • Suits Push Side Of Door: Yes
  • Fire Rated (FIRERATED): Yes

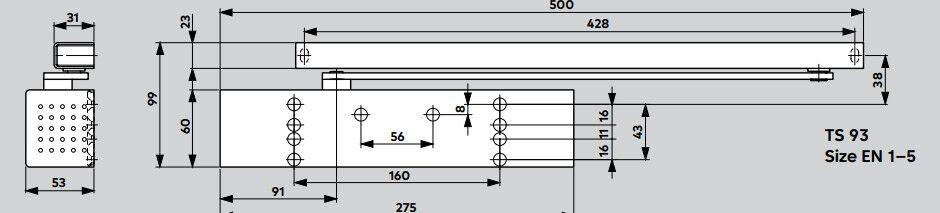

  • Length: 275mm
  • Overall depth: 53mm
  • Height: 60mm
SKU DORM43100519
Barcode # 4021229002978
Brand Dormakaba
