Dormakaba 8300/8PV Vision Door Lever Handle on Round Rose Privacy

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Features:

  • High quality cost effective range of handles for light commercial and domestic applications
  • Well suited for residential applications where aesthetics and contemporary appeal is desired
  • It is ideal for retrofitting in place of existing door fittings due to its larger diameter rose
  • Levers are fitted onto a 53mm rose mounting plate which has a slim 10mm projection of the door face
  • Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches

Specifications:

  • Material: Die-cast zinc
  • Diameter Rose: 53mm
  • Thickness: 10mm
  • Fixing Centres: 41mm
  • Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
  • Handing: Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
  • Fire Rating: Vision 8000 series furniture is fire rated and comply with AS1905.1.
  • Disabled Access Compliance: A selection of lever handle designs comply with AS1428.1 2009.
  • Function: Privacy
  • Available Finish:
    • Black
    • Polished Chrome
    • Satin Chrome
  • Sold as Pair

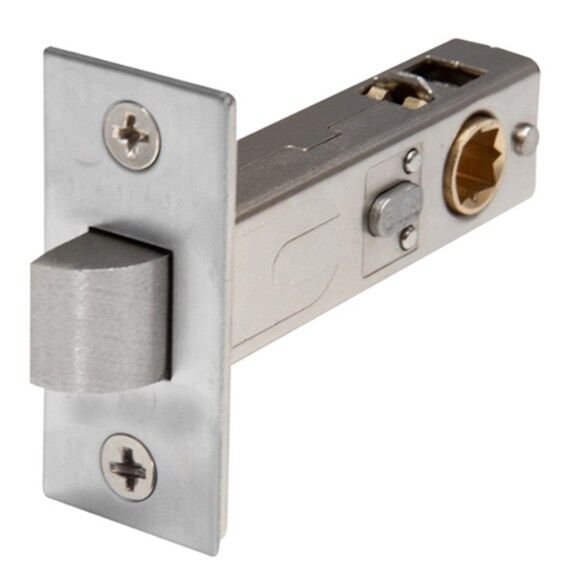

Note: Latches are sold separately

SKU DORM83008PV_
Brand Dormakaba
