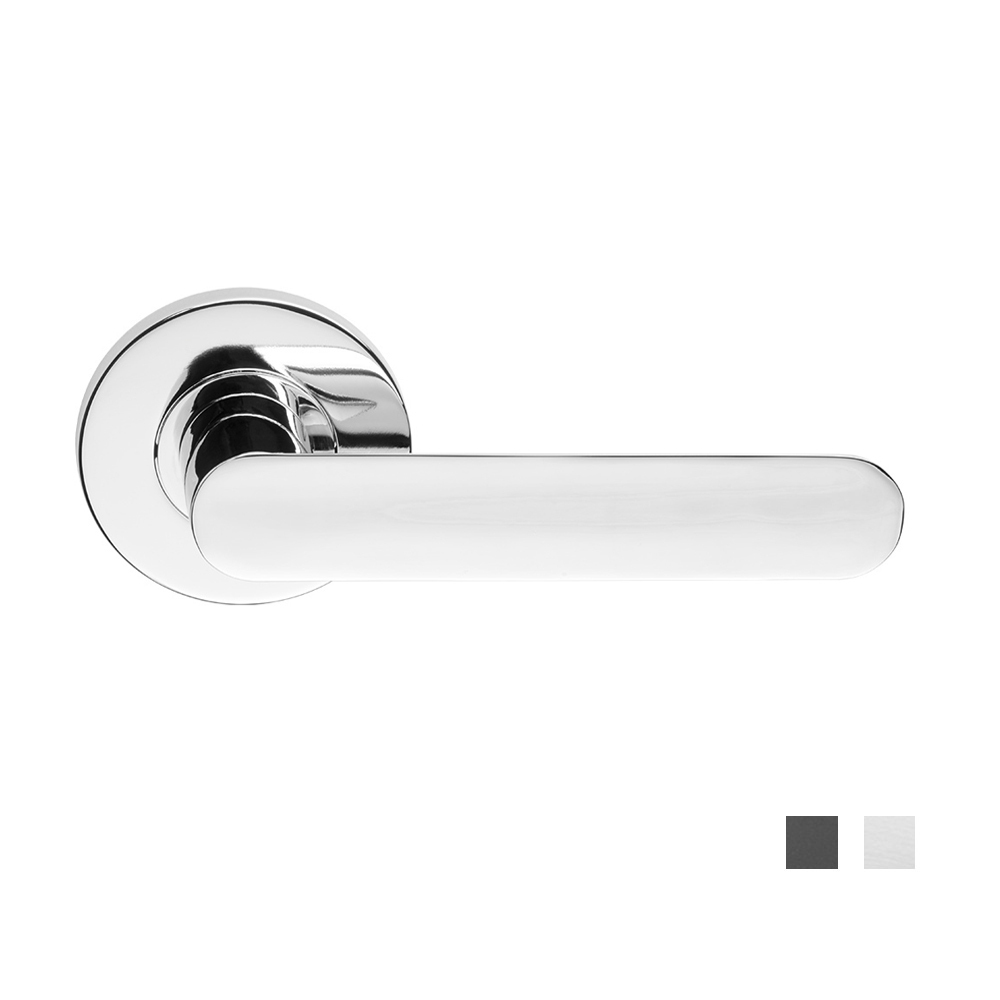

Dormakaba 8600/17 Vision Round Rose

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non stocked item which has a handling time of 15 business days after payment is made.

Door Lever on Rose can be used on any internal door inside your home. Simply combine the lever on rose door handle with a combination of latches, locks and thumb turns, depending on the room and requirements.

Door Lever on Rose Function is a door handle where the lever is fixed to a circular plate.


  • High quality cost effective range of handles for light commercial and domestic applications
  • Well suited for residential applications where aesthetics and contemporary appeal is desired
  • It is ideal for retrofitting in place of existing door fittings due to its larger diameter rose

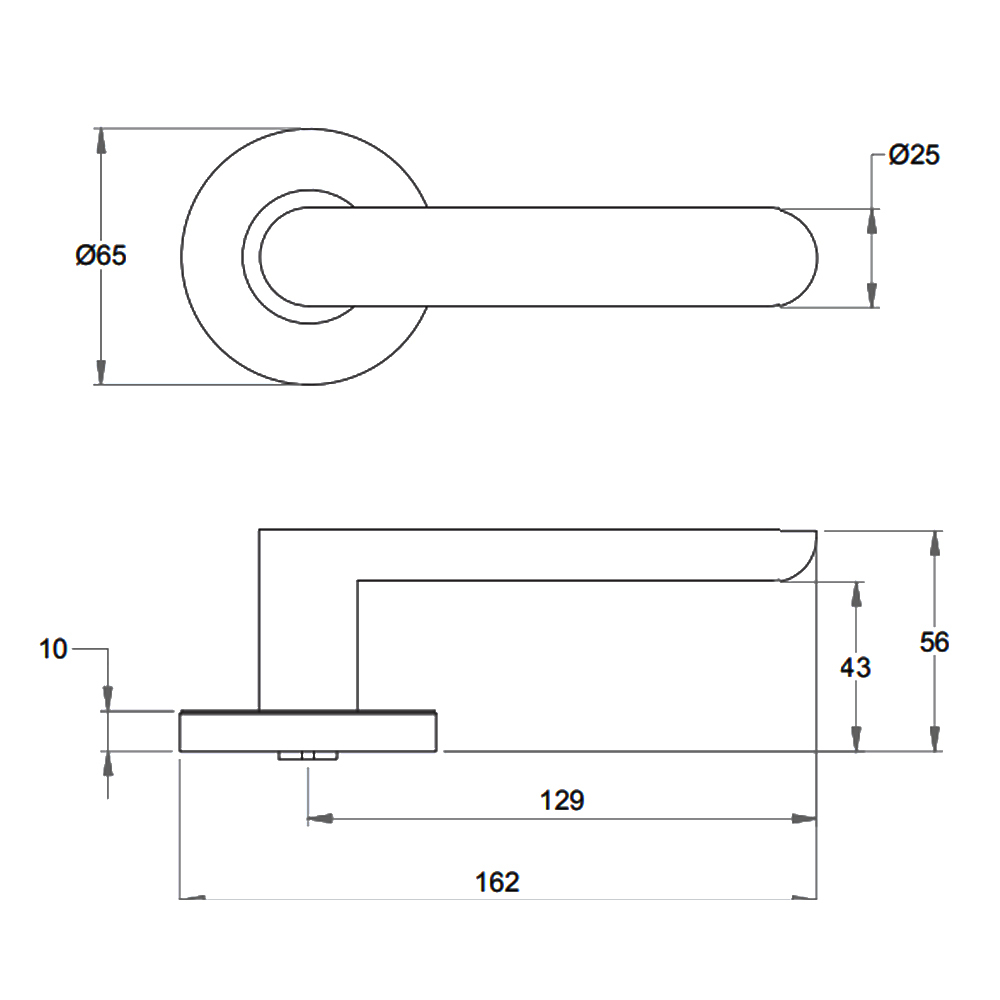

  • Levers are fitted onto a 65mm rose mounting plate which has a slim 10mm projection of the door face
  • Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches


  • Material: Die cast zinc
  • Diameter Rose: 65mm
  • Thickness: 10mm
  • Fixing Centres: 41mm
  • Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
  • Handing: Roses are non handed and in most cases can be reversed (refer to lever designs for more information).
  • Fire Rating: Vision 8600 series retro furniture is fire rated and comply with AS1905.1.
  • Disabled Access Compliance: A selection of lever handle designs comply with AS1428.1 2009.
  • Available Function:
    • Passage
    • Privacy
  • Available Finish:
    • Black
    • Polished Chrome
    • Satin Chrome
  • Sold as Pair

Note: Latches are sold separately

SKU DORM860017_
Brand Dormakaba
