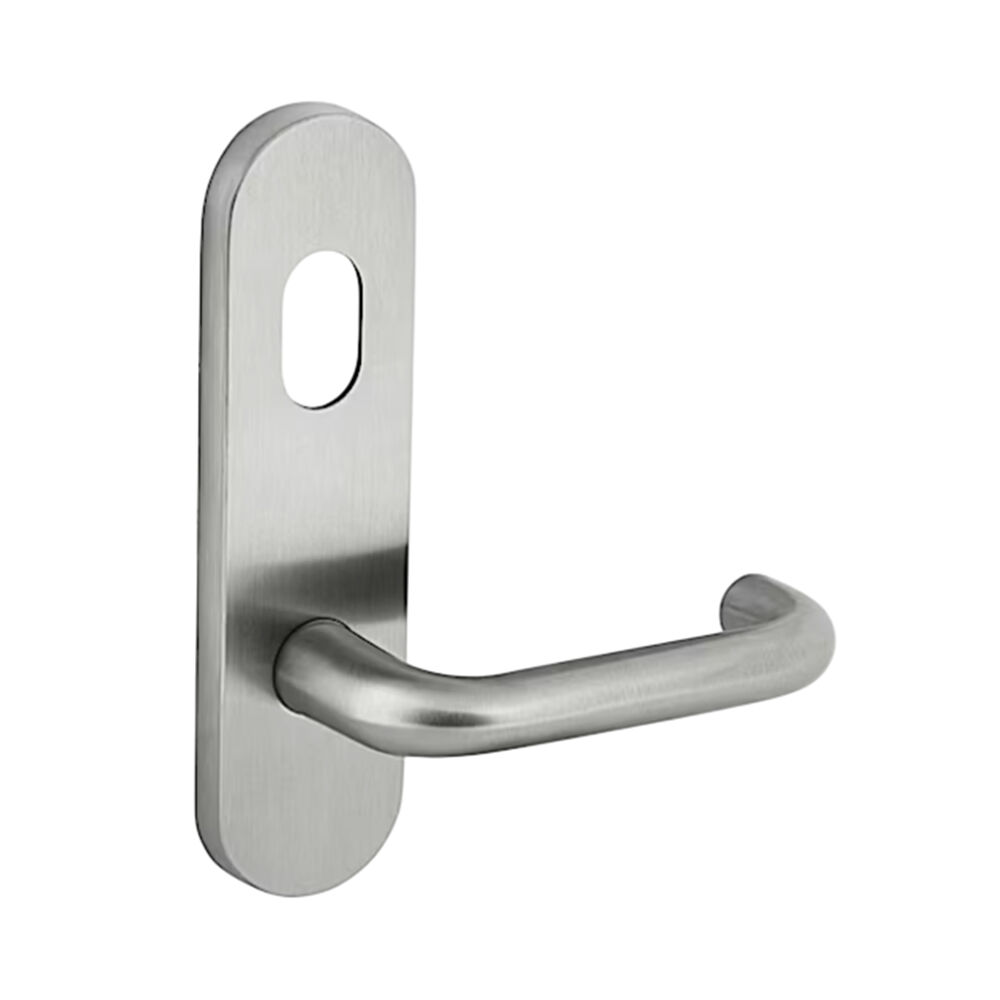

Dormakaba Door Handle Lever Round End Plate Cylinder Hole Concealed Fix Satin Stainless Steel
6700/70SSS

Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.

Door Lever Function Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• A stylish alternative to the rectangular plate displaying clean modern lines with bevelled edges
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• A characteristic feature of stainless steel door furniture is the naturally gleaming finish
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• Compatible with all Coastal and Urban series lever designs
• Standard screws in 5/32 thread to suit door thickness of 32mm-50mm thick doors
• Fixing Screws included

Specifications:

• Fixing: Concealed Fixed
• Material: 316 Grade Stainless Steel
• Plate Length: 45mm
• Plate Width: 10mm
• Plate Height: 165mm
• Fixing Centres: 143mm
• Door Thickness: 35mm - 50mm
• Suitable for Door Type: Timber Doors
• Finish: Satin Stainless Steel

Ratings/Compliance:

• Fire Rating: The 6700 series plate furniture is fire rated and complies
  with AS1905.1-2005 Part 1
• AS1428.1 2009 compliant
