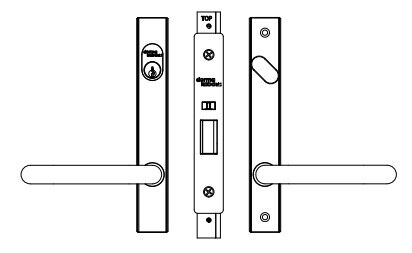

Dormakaba Entrance Kit Lockpack
SB2312KIT04SSKA

Entrance commonly used on front / back door or any door that you want to lock with a key.

Entrance Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

Includes:

  • 1 x Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib (SB2312SSS)
  • 1 x Dormakaba Narrow Style Plate w/ Cylinder Hole Lever Stainless Steel (6400/30GSS)
  • 1 x Dormakaba Narrow Style Plate w/ Turn & Lever  Stainless Steel (6403/30SS)
  • 1 x Dorma 130 Series C4 Oval Cylinder 6 Pin - Keyed Alike (130C4KASCP)
  • 1 x Dormakaba Cam KW Turn Adaptor Activation Suit 2600 & 2900 Series Locks (CAMKW)



Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib
SB2312SSS

Features:

  • Operated by key or handle outside or by turnsnib, key or handle inside
  • Cylinder or handle retracts the latch
  • 15 mm stainless steel reversible latchbolt
  • Stainless steel faceplate and strike
  • Easily adapted to most function
  • Supplied with turn snib adaptor
  • Supplied less cylinder
  • Compatible to most restricted keying systems
  • Electric strike compatibility

Specifications:

  • Door Thickness: 32mm - 50mm
  • Anti-lockout Function: No
  • Compatible With Most Restricted Keying Systems: Yes
  • Holdback Function Built-in: No
  • Lock Grade: Commercial
  • Backset: 30mm
  • Finish: Stainless Steel



Dormakaba 6400 Series Narrow Style Squared Edge Plate Furniture w/ Cylinder Hole & 30 Lever
6400/30GSS

Features:

  • Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
  • Designed to fit back to back with either concealed or visible fixing to outside plate
  • Tiebolt M5 fixing screws have a cross-recessed head
  • Plates and knobs are non-handed with levers reversible on site in most cases

Specifications:

  • Door Thickness: 32mm - 50mm
  • Height: 185mm
  • Wide: 26mm
  • Thick: 12mm
  • Finish: Stainless Steel



Dormakaba Narrow Style Square End Plate Visible Fix with Turnsnib and Lever
Steel 6403/30G

Features:

  • Designed for use with dormakaba DKSB2212SSS series locks
  • BCA AS1428.1 - 2009 compliant leversets
  • Narrow interior square end plate
  • Standard turnsnib with Noosa 30 series lever
  • Disabled access AS1428.1 compliant lever
  • Manufactured using 316 corrosion resistant solid stainless steel
  • Visible fixing
  • Plates are designed to fit back to back

Specifications:

  • Length: 185mm
  • Width: 26mm
  • Depth: 12.7mm
  • Door Thickness: 32mm - 50mm
  • Screw Fixing Centres: 160mm
  • AS1428.1 Compliant Lever: Yes
  • Internal / External: Internal
  • Material: 316 Stainless Steel
  • Plate Has A Lever: Yes
  • Plate Has A Turnsnib: Yes
  • Finish: Satin Stainless Steel



Dorma 130 Series C4 Oval Cylinder
130C4KASCP

Features:

  • Anti-bump and Anti-drill protection
  • Excellent tolerances
  • SSS springs as standard
  • Mushroom top pin
  • Suits restricted profiles
  • Solid brass construction
  • Pre-drilled for construction keying

Specifications:

  • Keying: Keyed Alike
  • Pin: 6 pin C4 keyway
  • Finish: Satin Chrome Plate



Dormakaba Cam KW Turn Adaptor Activation
CAMKW

Specifications:

  • Dormakaba "KW" turn adaptor activation cam.
  • Suits adaptor SA-KZ (DKADAPTORKZPK5) when used with MS2600, MS2900, SB2212 and SB2312 series locks.
SKU DORMSB2312KIT04SSKA
Brand Dormakaba
