Dormakaba Furniture External Plain Square End Plate
6615SSS

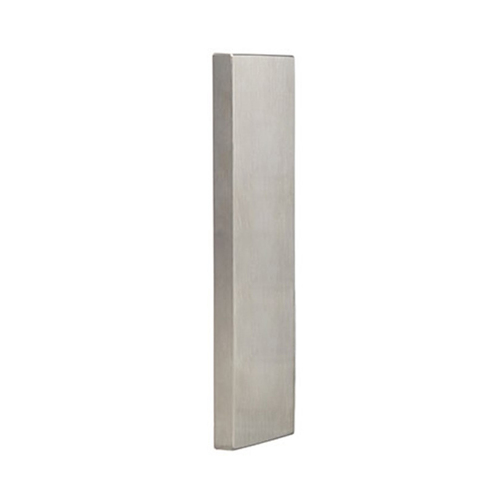

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Designed for use with dormakaba DKMS2602SSS series locks
• Rectangular exterior square end plate
• Plain plate only
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Door Thickness: 32mm - 50mm
• AS1428.1 Compliant Lever: No
• Internal / External: External

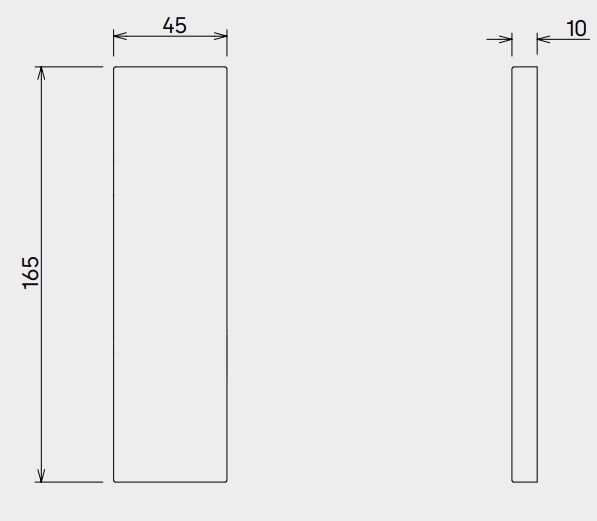

• Plate Size: 165mm x 45mm
• Screw Fixing Centres: 148mm
• Plate Type: Square End
• Fire Rated: Yes
• Material: 316 Stainless Steel
• Grade of Stainless Steel: 316
• Finish: Satin Stainless Steel

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
