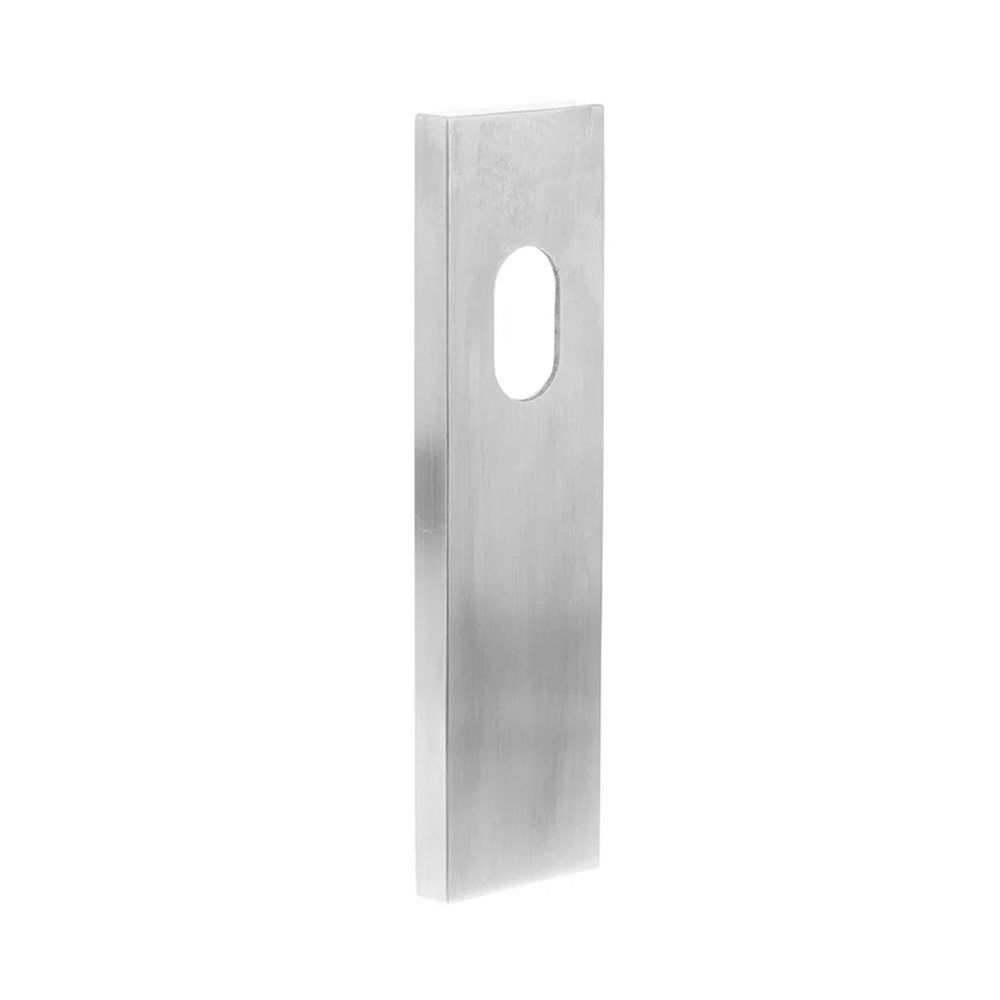

Dormakaba Furniture Square End Plate With Cylinder Hole
6610SSS

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Designed for use with dormakaba DKMS2602SSS series locks
  • Rectangular exterior square end plate
  • Plain plate with cylinder hole only
  • Concealed fixing
  • Plates are designed to fit back to back
  • External plates supplied with fixing screws

Specifications:

  • Door Thickness: 32mm - 50mm
  • AS1428.1 Compliant Lever: No
  • Internal / External: External

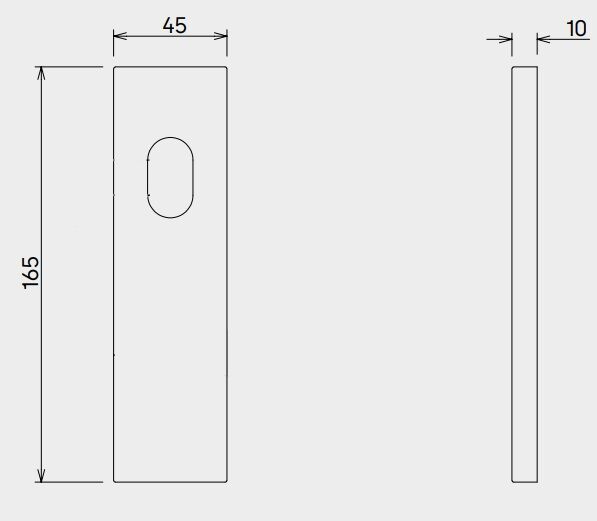

  • Plate Size: 165mm x 45mm x 10mm
  • Screw Fixing Centres: 148mm
  • Plate Type: Square End
  • Fire Rated: Yes
  • Material: 316 Stainless Steel
  • Grade of Stainless Steel: 316
  • Plate Has A Lever: No
  • Plate Has Oval Cylinder Hole: Yes
  • Finish: Satin Stainless Steel

Compliance:

  • Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
SKU DORMDF66100001
Barcode # 9322844303217
Brand Dormakaba
