Dormakaba Lever on Square End Plate Turnsnib
DF66033001G

Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

  • Rectangular interior square end plate
  • Standard turnsnib with Noosa 30 series lever
  • Heavy duty spring mechanism manufactured using the highest grade materials
  • Manufactured using 316 corrosion resistant solid stainless steel
  • Visible fixing

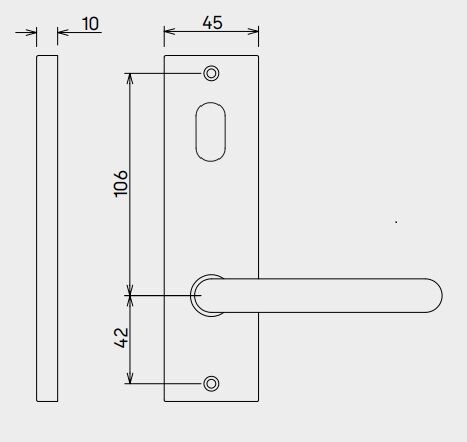

Specifications:

  • Door Thickness: 32-50mm
  • Height: 165mm
  • Width: 45mm
  • Projection: 10mm
  • Screw Fix Spacing: 148mm
  • Finish: Satin Stainless Steel

Compliance:

  • Fire Rating Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
  • Disabled Compliance BCA AS1428.1 -2009 compliant leverset.



SKU DORMDF66033001G
Barcode # 9322844301473
Brand Dormakaba
