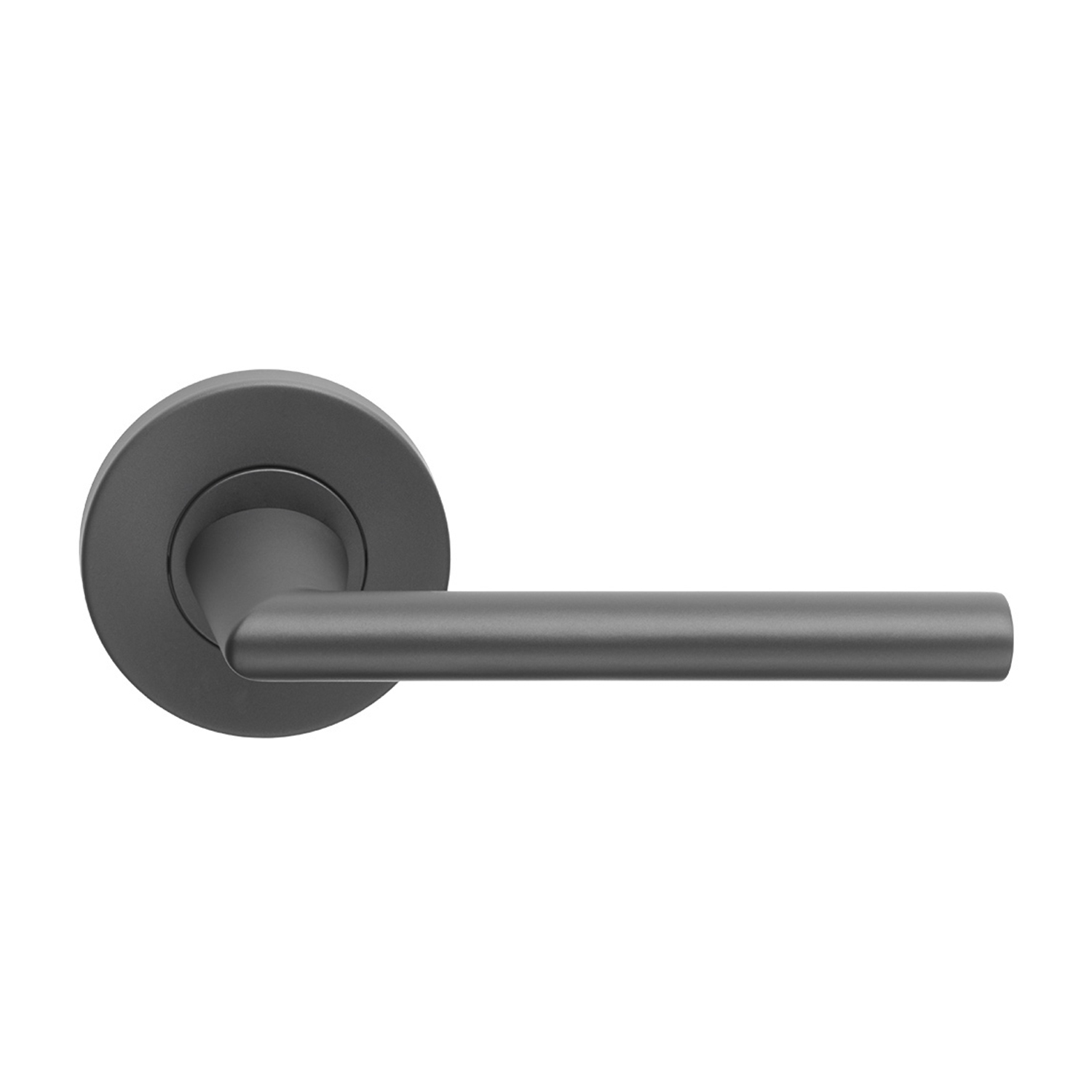

Dormakaba Vision Round Rose Passage Door Handle Leverset
8600/8BLK

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Features:

• High quality cost effective range of handles for light commercial and domestic applications
• Well suited for residential applications where aesthetics and contemporary appeal is desired
• It is ideal for retrofitting in place of existing door fittings due to its larger diameter rose
• Levers are fitted onto a 65mm rose mounting plate which has a slim 10mm projection of the door face
• Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches

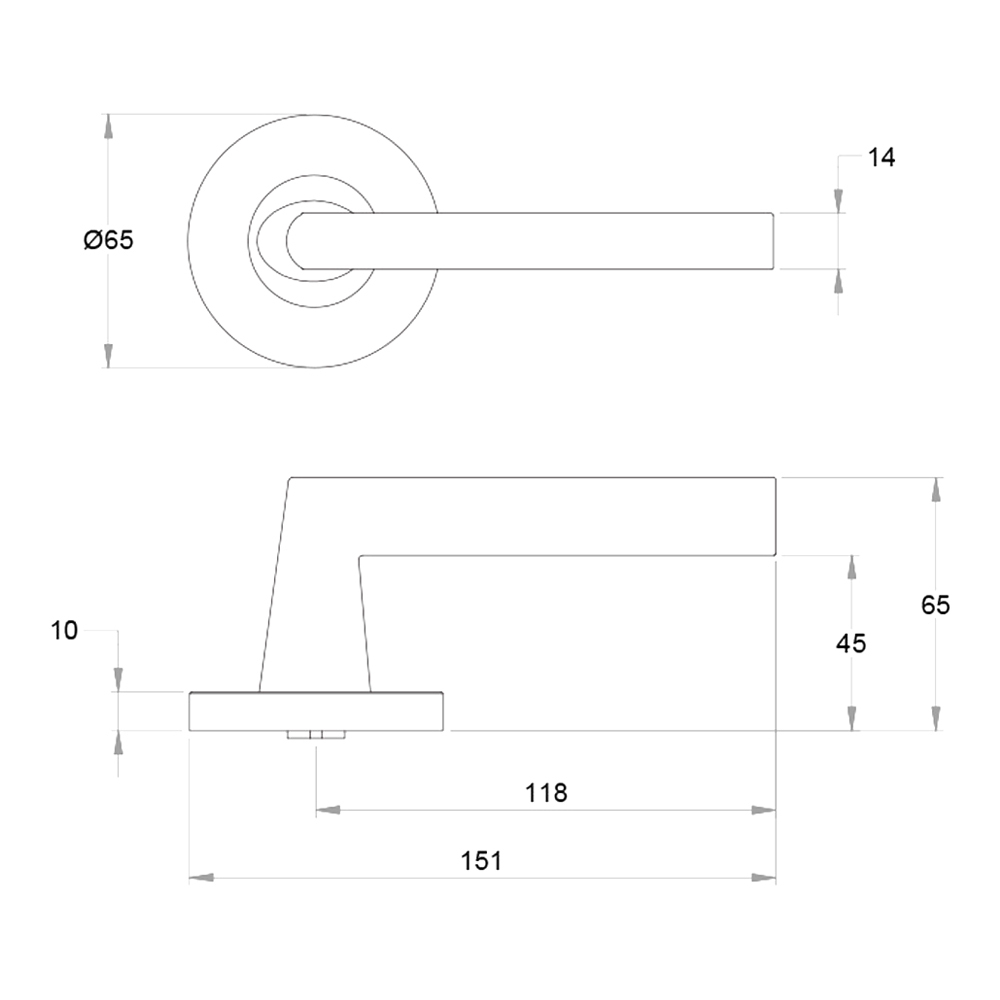

Specifications:

• Material: Die-cast zinc
• Diameter Rose: 65mm
• Thickness: 10mm
• Fixing Centres: 41mm
• Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
• Handing: Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
• Fire Rating: Vision 8600 series retro furniture is fire rated and comply with AS1905.1.
• Function: Passage
• Finish: Black
• Sold as Pair

Note: Passage set sold less latch, Privacy set sold including latch
