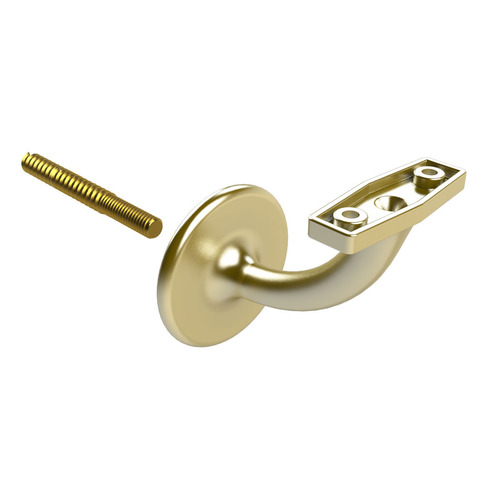

Emro Stair Hand Rail Bracket

Hand Rail Bracket - is installed directly on a wall. Typically used for Commercial & Domestic projects

Hand Rail Bracket Function - are used to attach stairway railings to the wall of a stairway for safety and utility


  • Centre Concealed Fix
  • To Suit 50mm Diameter Railings
  • Neutral salt spray test (NSS) for 100 hours to ensure resistance to corrosive attack on the bracket surface
  • Fixing screws supplied
  • Load tested to comply with Part of Australian Standard AS1428.1-2009 Made in Australia

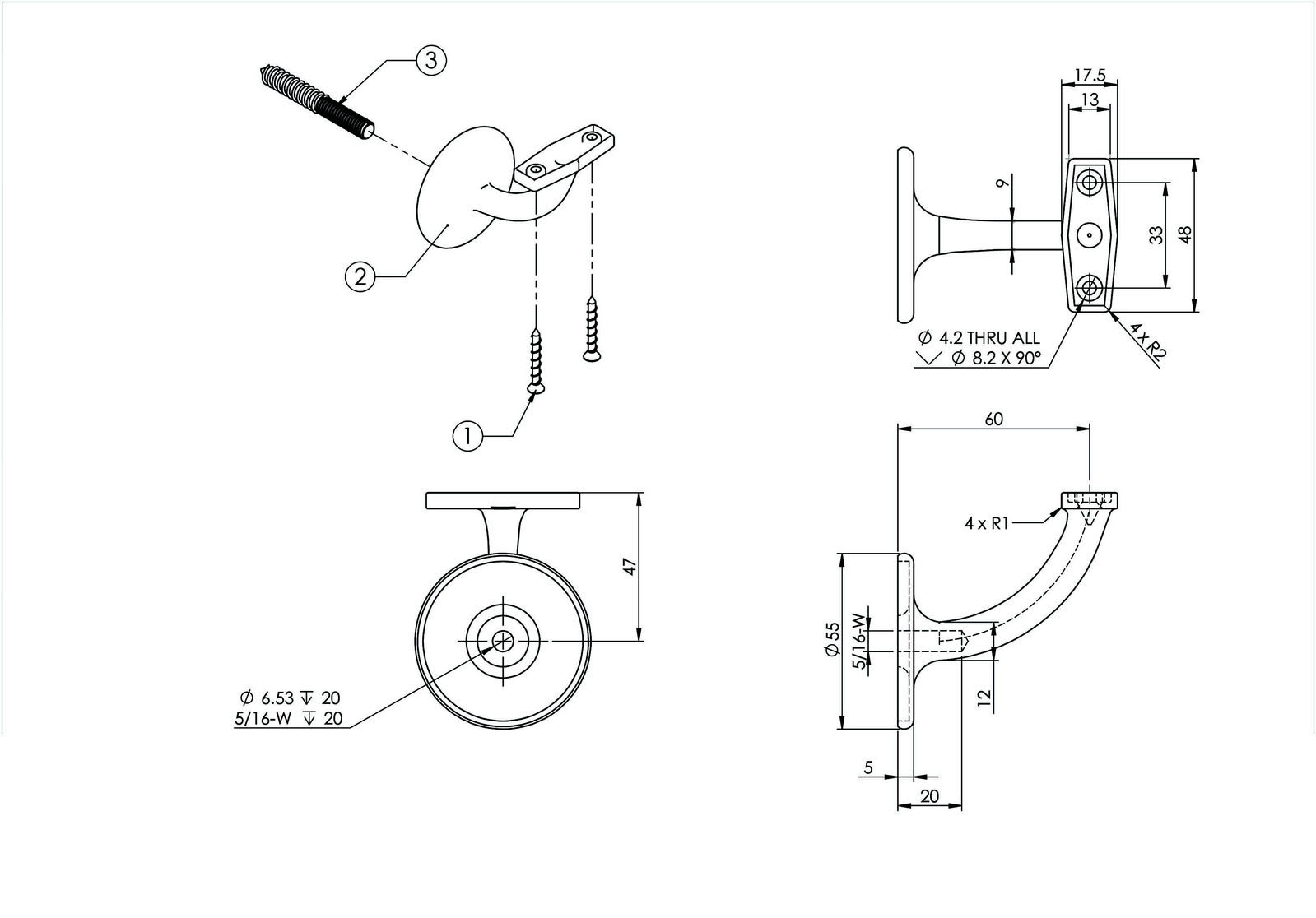

  • Diameter Rose: 55mm
  • Projection from wall to Screw Hole: 60mm
  • Overall Projection: 70mm
  • Extension: 60mm
  • Applications: Internal and External
  • Material: Zinc Alloy
  • Finish: Brushed Gold
Barcode # 2000000034430
Brand Emro
