FAAC A951 Single Door Operator **Body Only** A-105951
SKU : FAACA951
LEAVES WAREHOUSE IN 3-5 BUSINESS DAYS
Email us for advice: electronics@keelerhardware.com.au

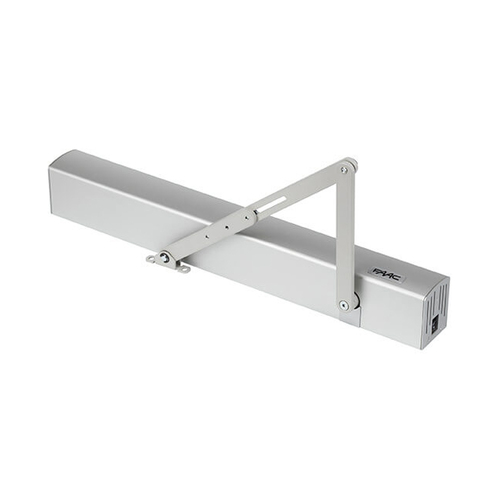

FAAC A951 Swing Door Operator **Body Only**
A-105951
Swing Door Operator used in new construction or retrofitted onto existing doors. designed for heavy duty use and traffic.
Swing Door Operator Function - opens and closes the internal door silently and smoothly.
Includes:
- 1 x FAAC Swing Door Operator Internal Use **Body Only** (A-105951)
Features:
- The housing cover is in anodized extruded aluminium
- Manufactured in compliance with the new European safety standards EN16005; speed and forced are programmed depending on door dimensions.
- Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and1100-mm wide on continuous duty ensuring the absolute operating safety at any time
- Built-in microprocessor control unit with selfdiagnosis and continuous monitoring of all door functions
- Anti-crushing safety device active both in closing and in opening
- Integrated functions selector with the following operating logics: AUTOMATIC - MANUAL/NIGHT - OPEN
- “INTRUSION” Function, the door opposes the manual opening attempt
- Selectable ‘PUSH and GO’ function
- KP EVO and LK EVO functions keyboard support
- Firmware upgrade and download/upload (configurations, timer and log) through USB key
Specifications:
- Function: Body Only
- Max. Power: 100W
- Passage opening (mm): 700 ÷ 1100
- Max. leaf weight with articulated arm: 100 Kg
- Max. leaf weight with sliding arm: 100 Kg
- Standby power: 5W
- Use frequency: 1
- Electric lock power supply voltage: 25Nm
- Electric motor: Motor powered at 24V
- Max. accessories load: 1A – 24V
- Electric lock power supply: voltage (N.O./N.C.) 24 V / 500 mA max.
- Length: 575mm
- Depth: 60mm
- Height: 70mm
- Weight: 7Kg
- Operation in case of power cut: Manual push/pull opening
- Max. leaf opening angle: 100 Degrees ÷ 125 Degrees
- Opening leaf time: 4 -10 sec (adjustable)
- Closing leaf time: 4 - 10 sec (adjustable)
- Partial opening adjustment: Standard (adjustable)
- Pause time: 0 – 30 sec
- Night pause time: 0 ÷ 90 sec
- Encoder: As standard
- Protection sensor monitoring: (EN16005) As standard (may be excluded)
- Low energy movement: (EN16005) As standard (may be excluded)
- Operating ambient temperature: -20 Degree Celsius ÷ +55 Degree Celsius
- Protection class: IP 23 (for internal use only)
- Compliance with regulations: EN16005; EN61000-6-2; EN61000-6-3 ; EN13849
SKU | FAACA951 |
Barcode # | 8055195045499 |
Brand | FAAC |
