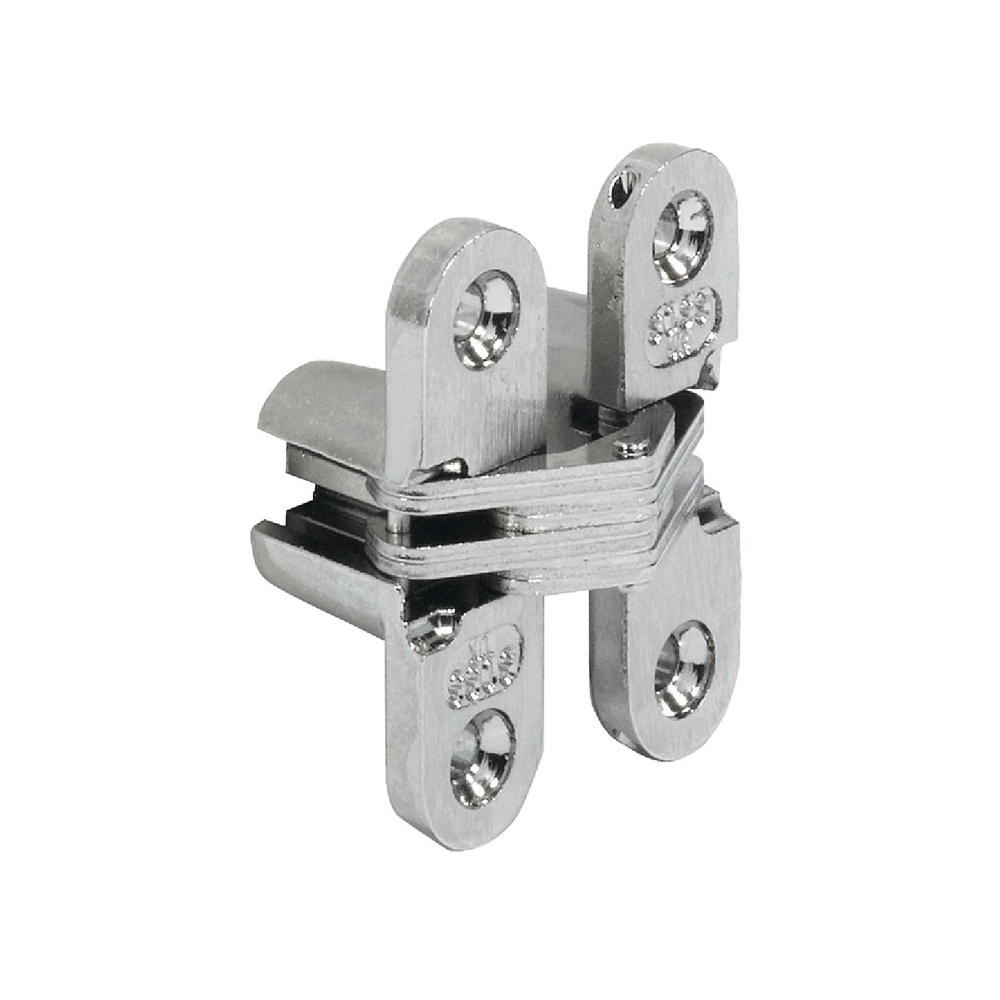

Hafele SOSS Concealed Hinge
341.07.745

Concealed Hinge - used on entry and interior doors for both their aesthetics and security, common in cabinetry and furniture.

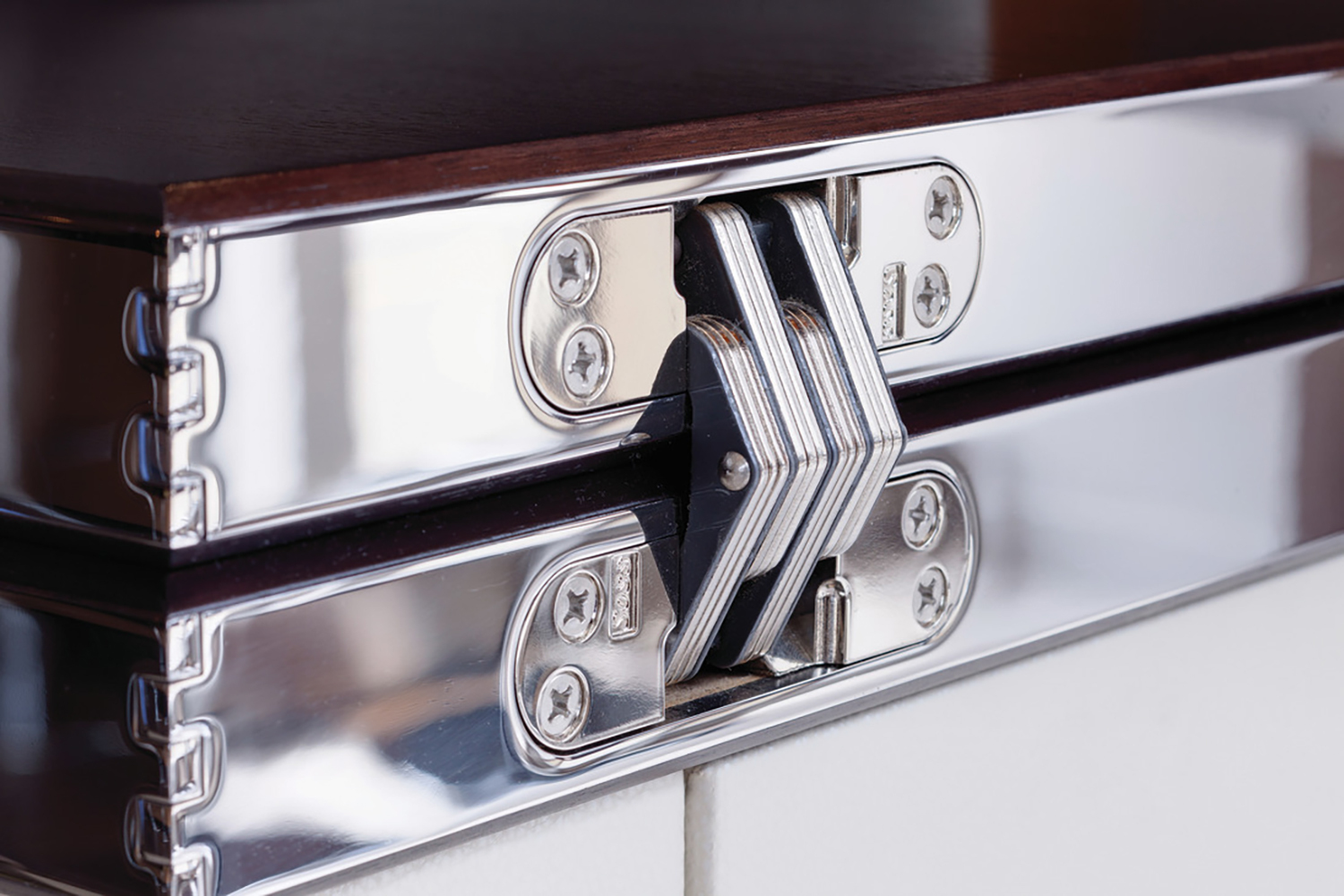

Concealed Hinge Function - Conceals the placement of the hinges by lying flush inside a cabinet door, to give a kitchen cabinet run a smooth finish on the outside.

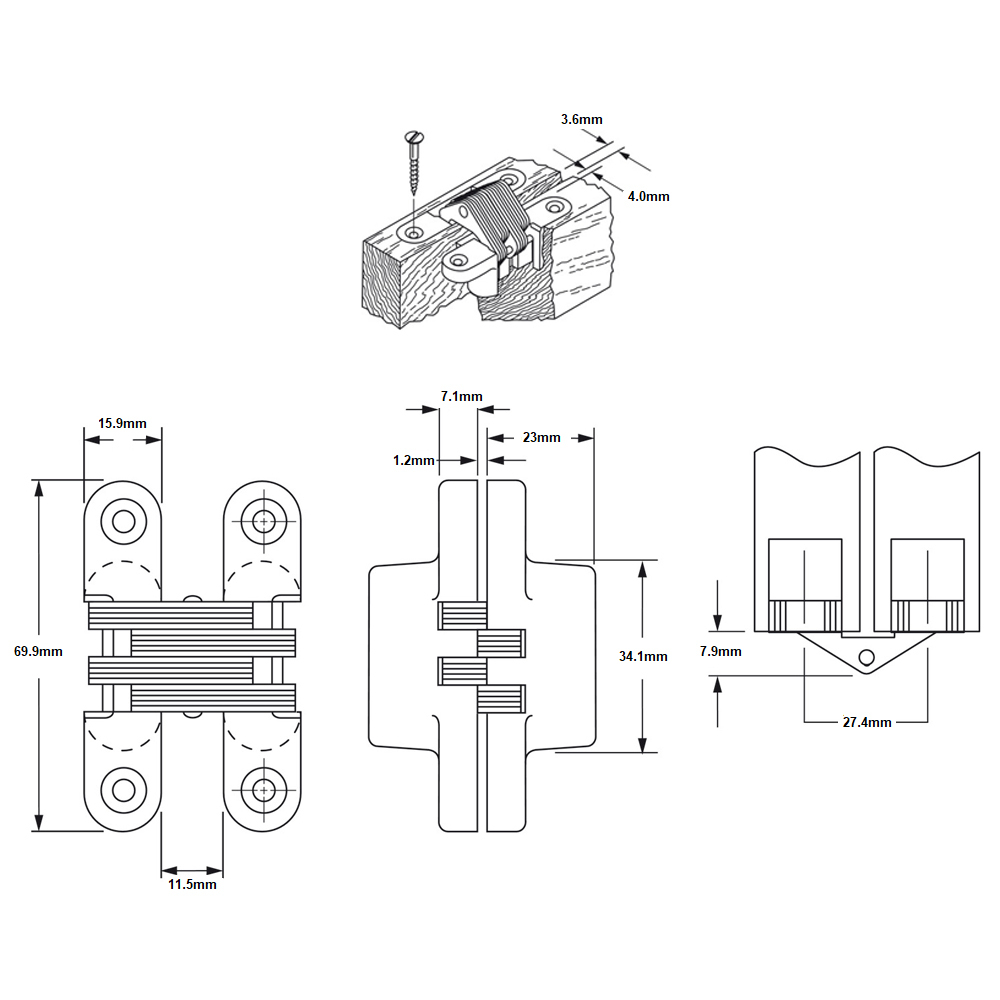

Specifications:

• Mounting: For DIN left and DIN right hand use
• Wood Thickness: 26mm - 28mm
• Material: Steel, Zinc alloy
• Area of Application: for wooden frames, for flush wooden interior doors
• Opening Angle: 180 Degrees
• Mounting Screws: Included
• Finish: Satin Chrome
