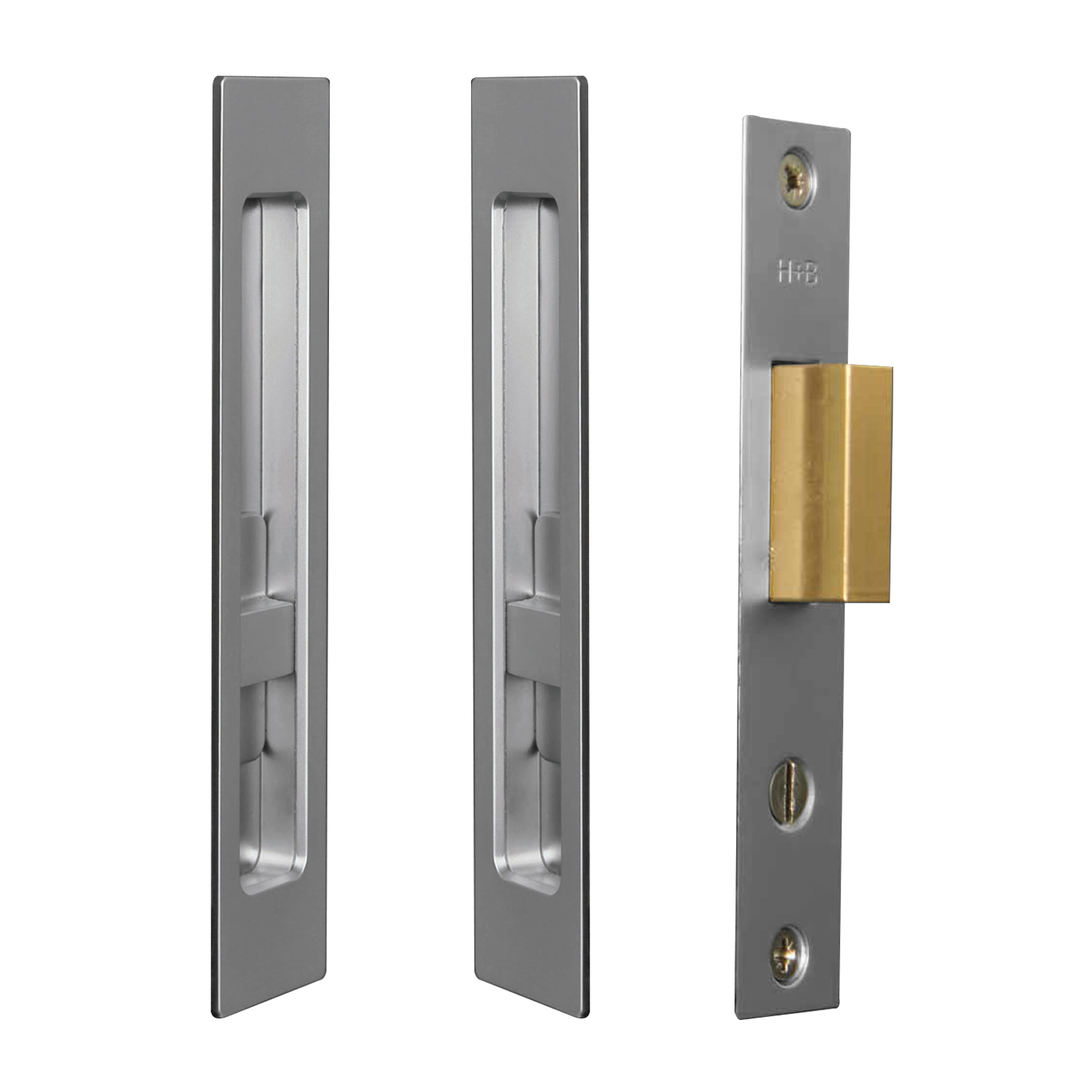

Halliday & Baillie Pivot Door Privacy Set Flush Pull with Snib/Snib
1488 SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 14 business days after payment is made.

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x HB 690 D Series Lock Body
• 2 x HB 1475 Flush Pulls
• 1 x HB 1410 Fixing Kits (one set for HB 1483)
• 1 x Strike and Dust Box
• 2 x spindle lengths (please specify door thickness for doors over 2.36”)
• Fasteners

Features:

• Developed primarily for use on large doors where scale is required, or the doors are particularly heavy
• These sets can function on oversized sliding doors for extra purchase, or on bifold doors
• Sets utilize the longer HB 1475 flush pulls which offer a deeper internal finger area and an offset grip to one side resulting in left and right-handed options
• Suitable for timber or large aluminium doors

Specifications:

• Flush Pull Material: Milled Solid Brass
• Lock Body Material: Diecast Zinc, Brass, 316 Stainless Steel
• Lock Body Length: 95mm
• Lock Body Width: 15mm
• Lock Body Depth: 76mm
• Backset: 55mm
• Lock Faceplate Length: 155mm
• Lock Faceplate Width: 25mm
• Minimum Door Thickness: 45mm
• Flush Pull Length: 310mm
• Flush Pull Width: 50mm
• Flush Pull Depth: 17mm
• Internal Depth: 15mm
• Finish: Satin Chrome
