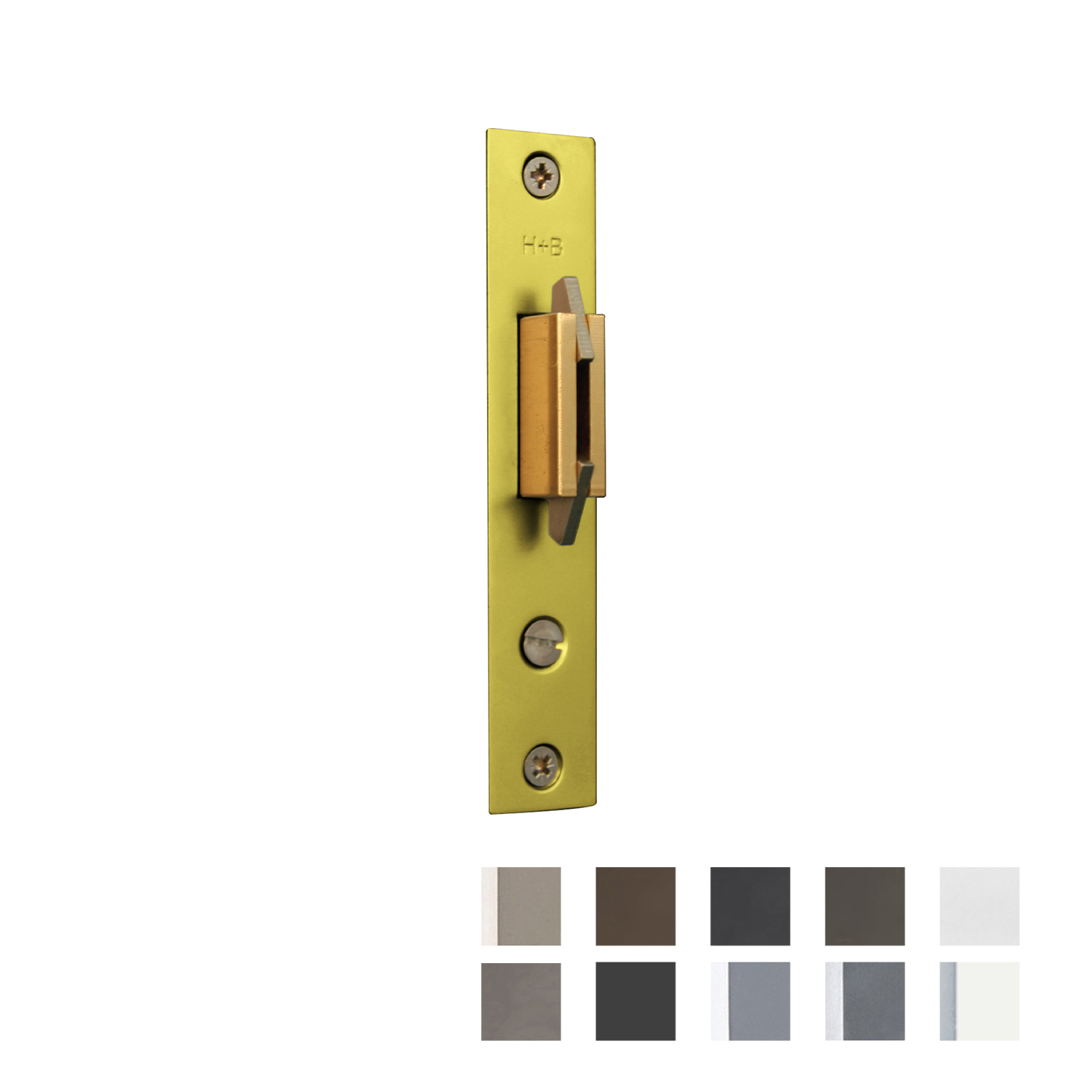

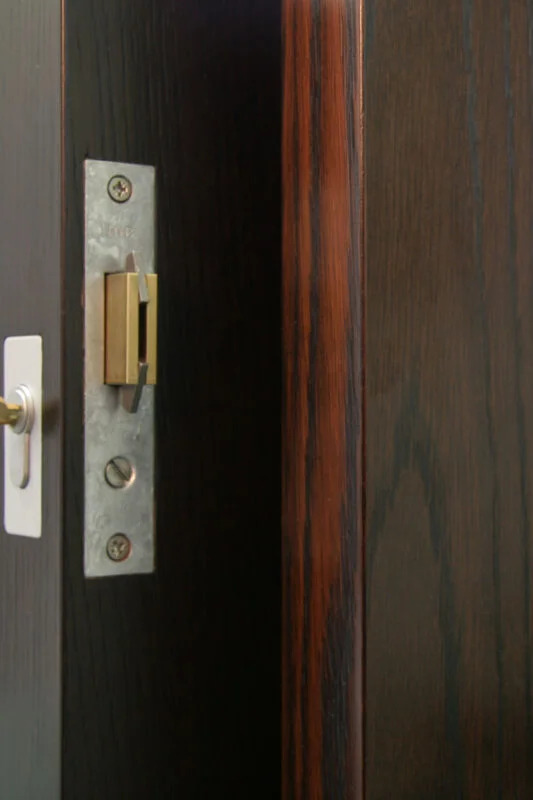

Halliday & Baillie Sliding Door Mortice Lock

Sliding Door Mortice Lock is a type of lock that is installed into the edge of a door. It is operated from the inside with a key and is usually made from brass or steel.

Sliding Door Mortice Lock Function - often used for patio doors, as it allows the user to lock the door from the inside and prevent unauthorized access from the outside.


  • A stand alone lock in narrow stile sliding doors, or with your choice of handles, on timber or aluminum
  • Two-prong locking claws is specifically designed for sliding doors


  • Backset: 30mm
  • Depth: 42mm
  • Lockcase Length: 82mm
  • Faceplate Length: 130mm
  • Lockcase Width: 15mm
  • Faceplate Width: 25mm
  • Faceplate Thickness: 3mm
  • Bolt Length: 35mm
  • Bolt Projection: 15mm
  • Available Finish:
    • Black Chrome
    • Brushed Nickel
    • Dark Bronze
    • Electro Black Ace
    • Electro Dark Bronze
    • Electro Flat White
    • Electro Medium Bronze
    • Polished Brass
    • Polished Chrome
    • Satin Chrome
    • White
SKU HB2010_
Brand Halliday and Baillie
