Halliday & Baillie Sliding Door Privacy Set
HB1490 SC

Privacy Set is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Set Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x HB 690 Series Lock Body
• 2 x HB 1470 Flush Pulls
• 1 x HB 1410 Fixing Kits (one set for HB 1493)
• 1 x Strike and Dust Box
• 2 x spindle lengths (please specify door thickness for doors over 2.36”)
• Fasteners

Features:

• The HB1490 Series has been designed for large pocket doors where function and scale are required
• Sets utilize the longer HB 1470 flush pulls milled from solid brass
• These offer a longer and wider face, and deeper internal finger area ideal for heavy oversized sliding doors
• Suitable for timber or aluminium doors
• Privacy Set, Snib Inside, ER Indicator Outside

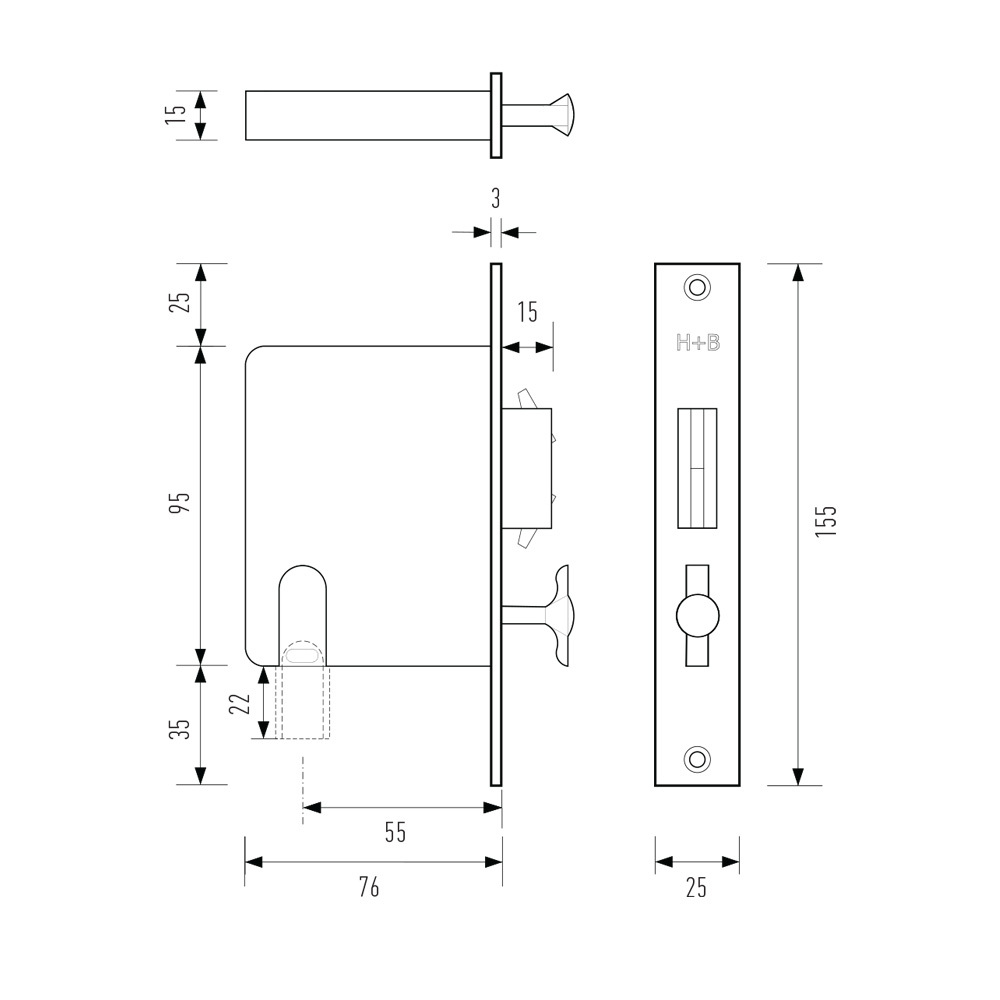

Specifications:

• Flush Pulls Material: Milled from Solid brass
• Lock Body Material: Die-Cast Zinc, Brass, 316 Stainless
• Backset: 55mm
• Minimum Door Thickness: 45mm
• Dimensions: 310mm x 50mm x 15mm
• Internal grip depth: 15mm
• Finish: Satin Chrome
