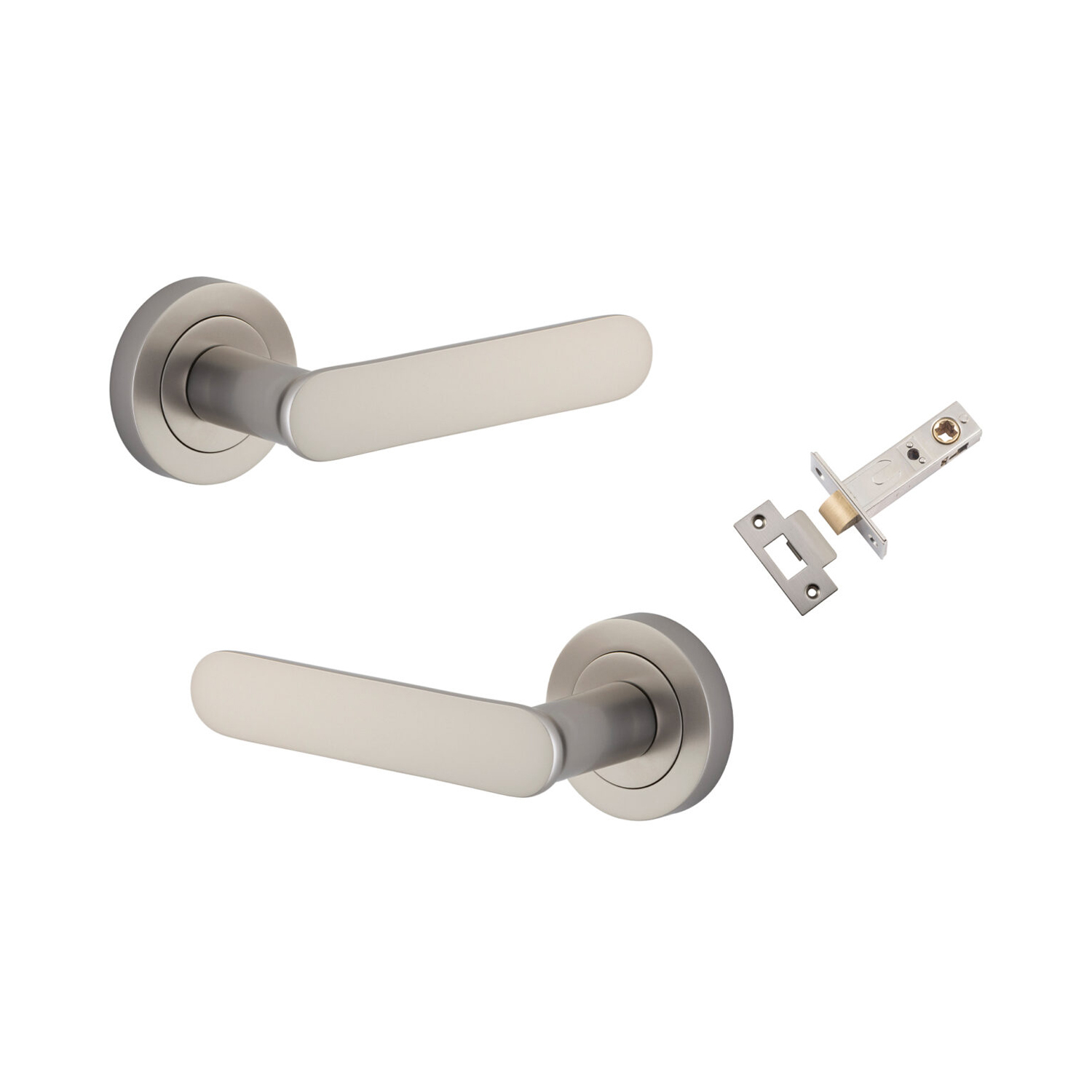

Iver Bronte Door Lever Handle on Round Rose Passage Kit
0339KPASS60

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 2 x Bronte Levers Round Rose

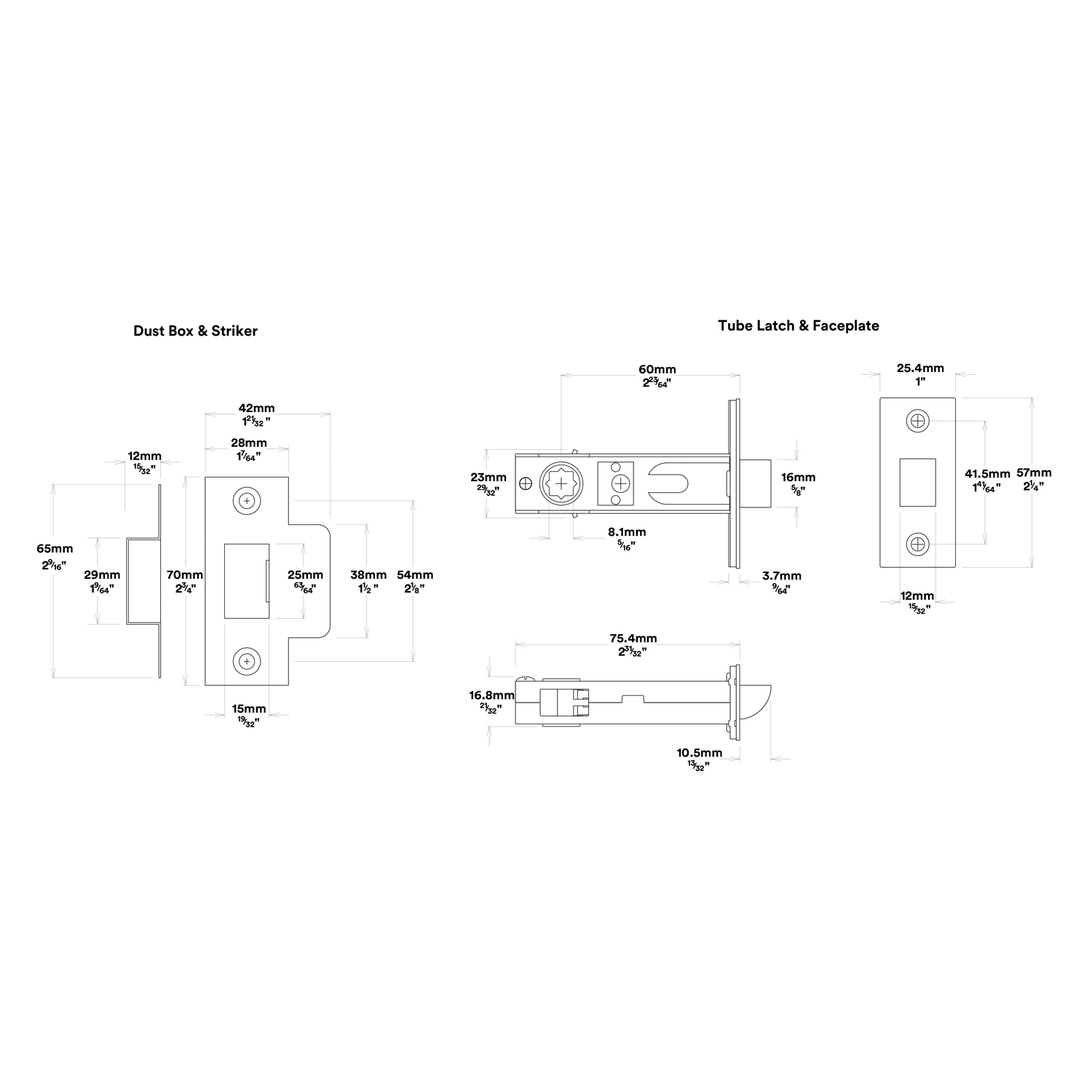

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 18 x Screws
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 4 x Bolts
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Style and function were carefully considered in the design of the Bronte lever
• Contemporary in form, the Bronte features defined edges and a distinct oval shape, gently rounded back to ensure the lever is soft and inviting to the touch
• For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)

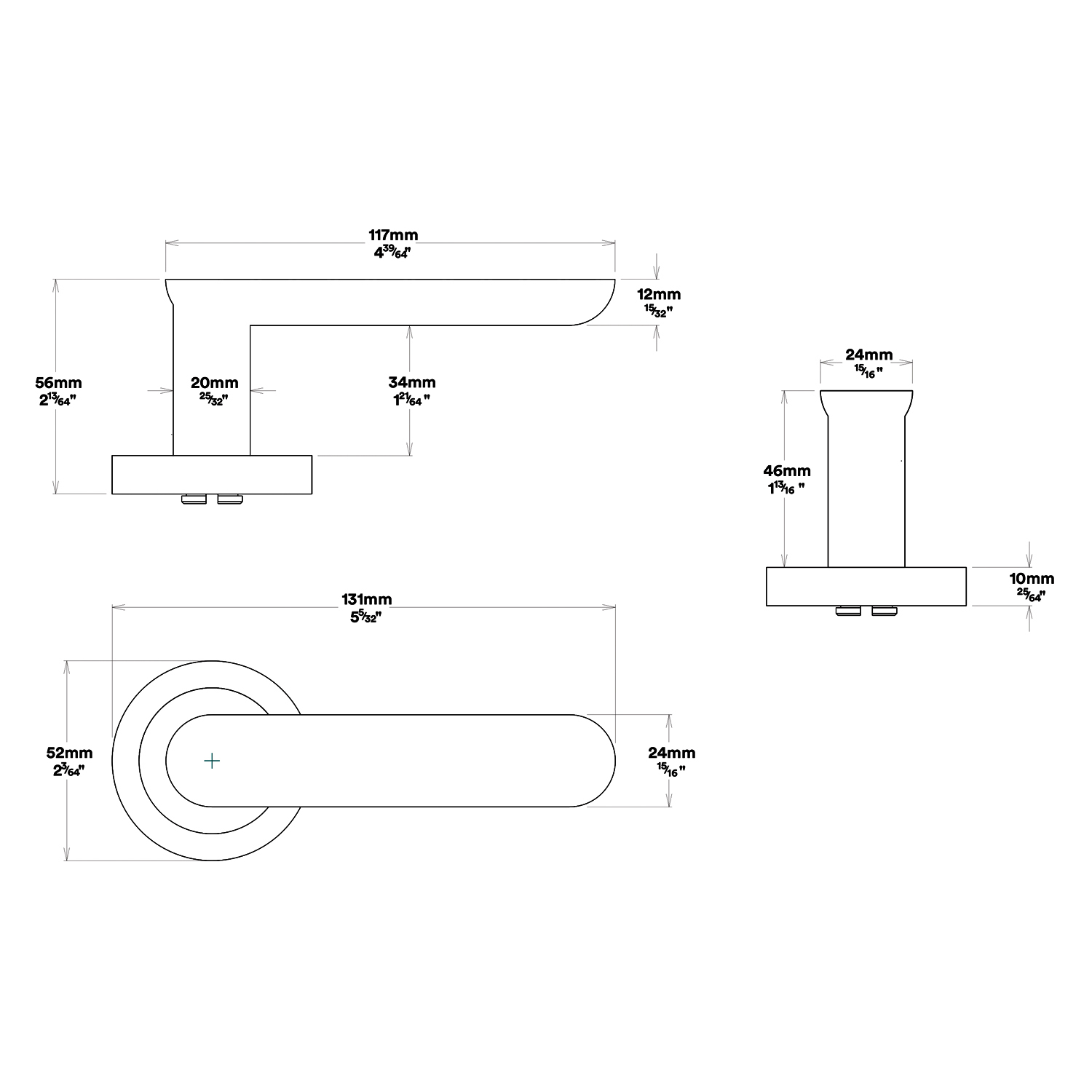

Specifications:

• Backplate Diameter: 52mm
• Height: 52mm
• Length: 117mm
• Projection: 56mm
• Centre to Centre: 41.5mm
• Function: Passage Kit
• Finish: Satin Nickel
