Iver Brunswick Door Lever Handle on Oval Backplate Privacy Kit
16268KPRIV60

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

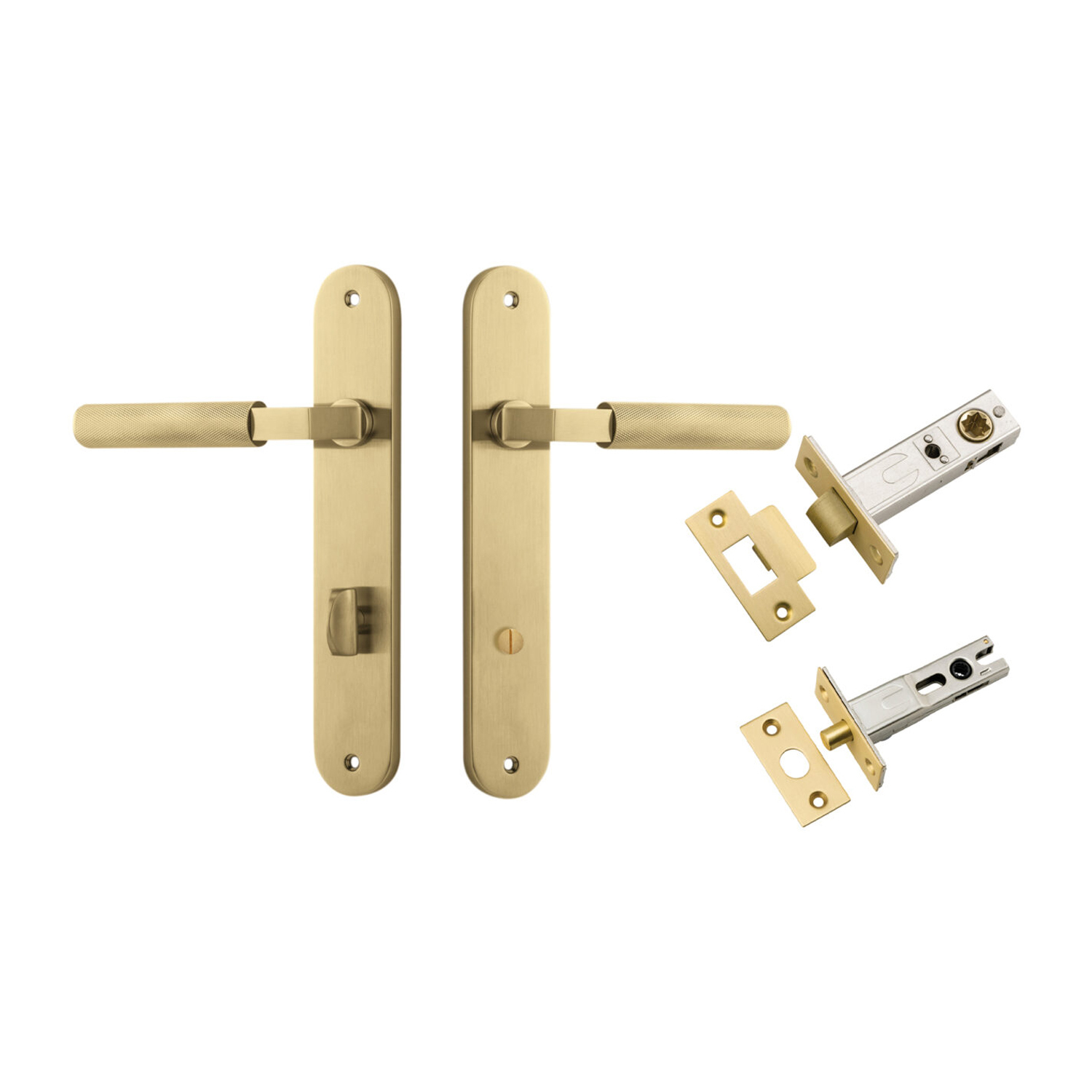

Includes:

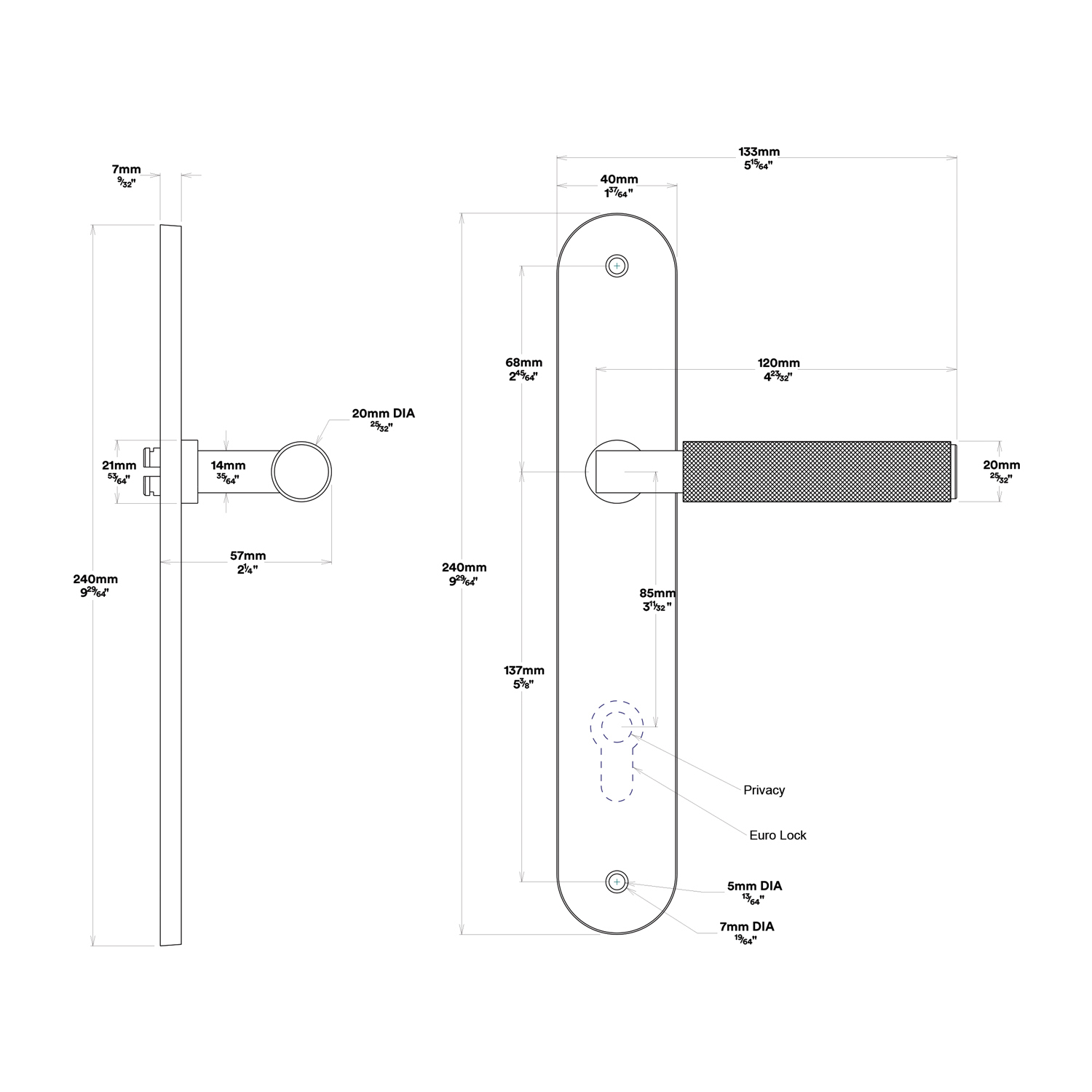

• 2 x Brunswick Levers on Oval Backplate

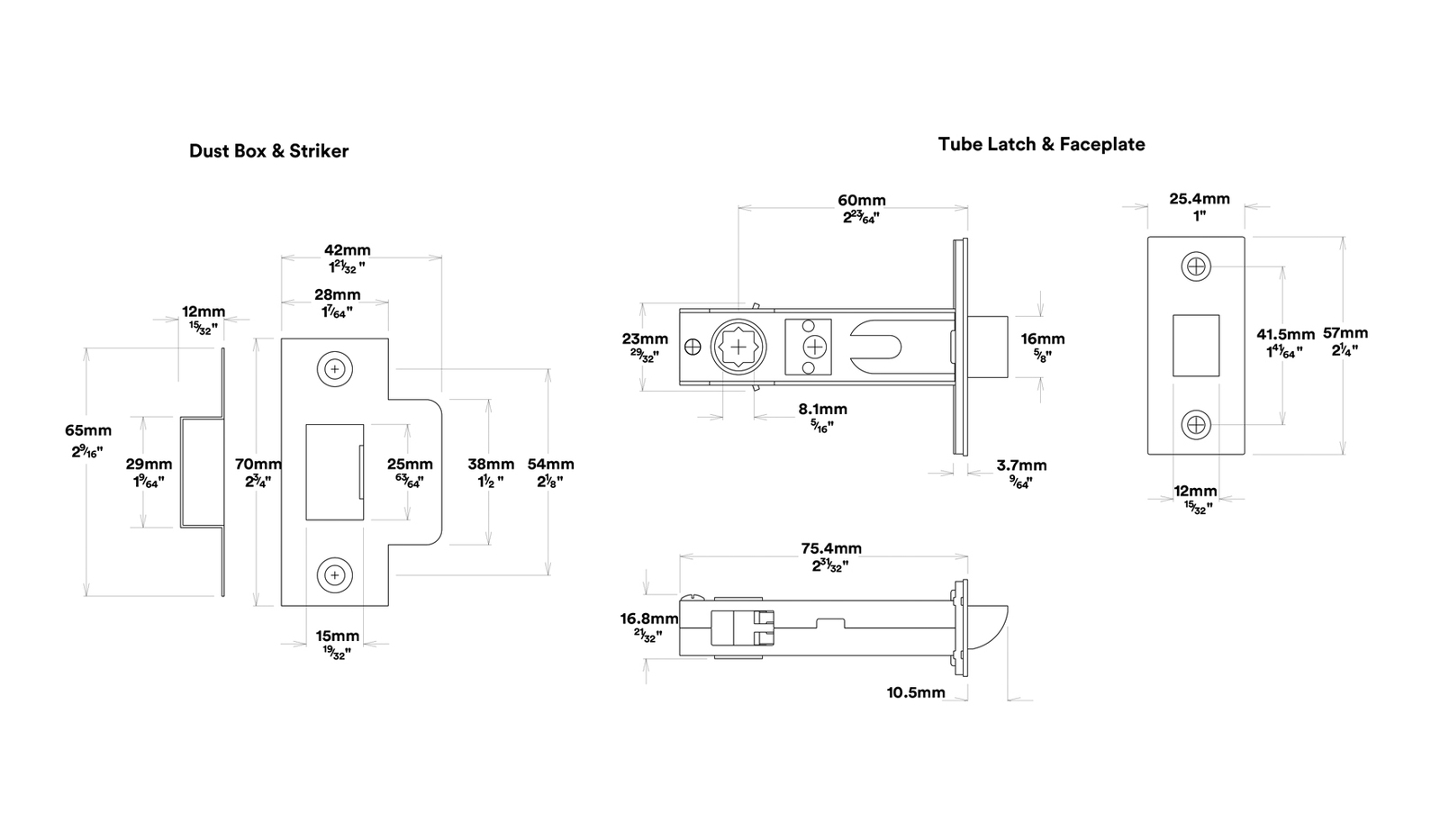

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

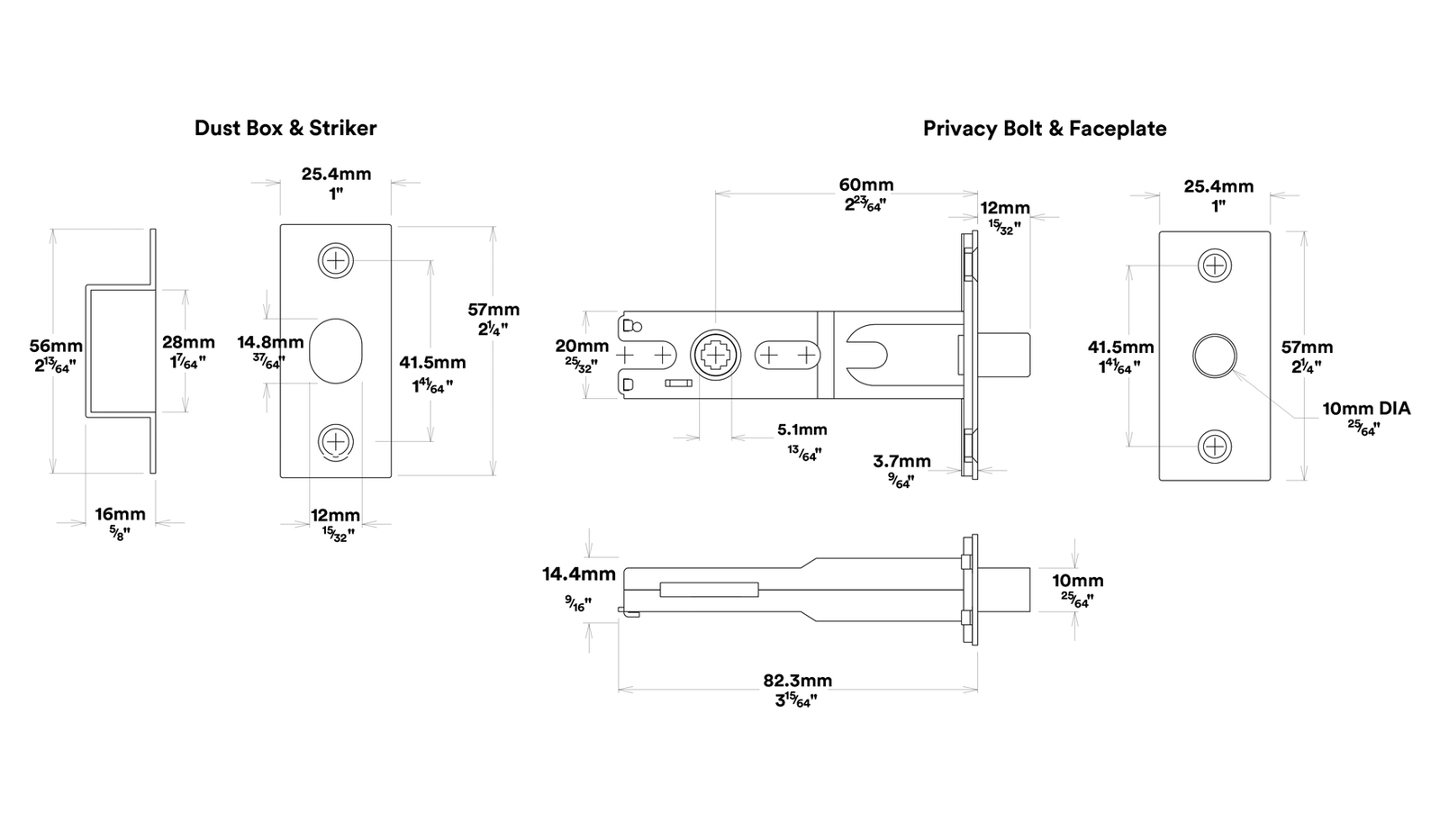

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts

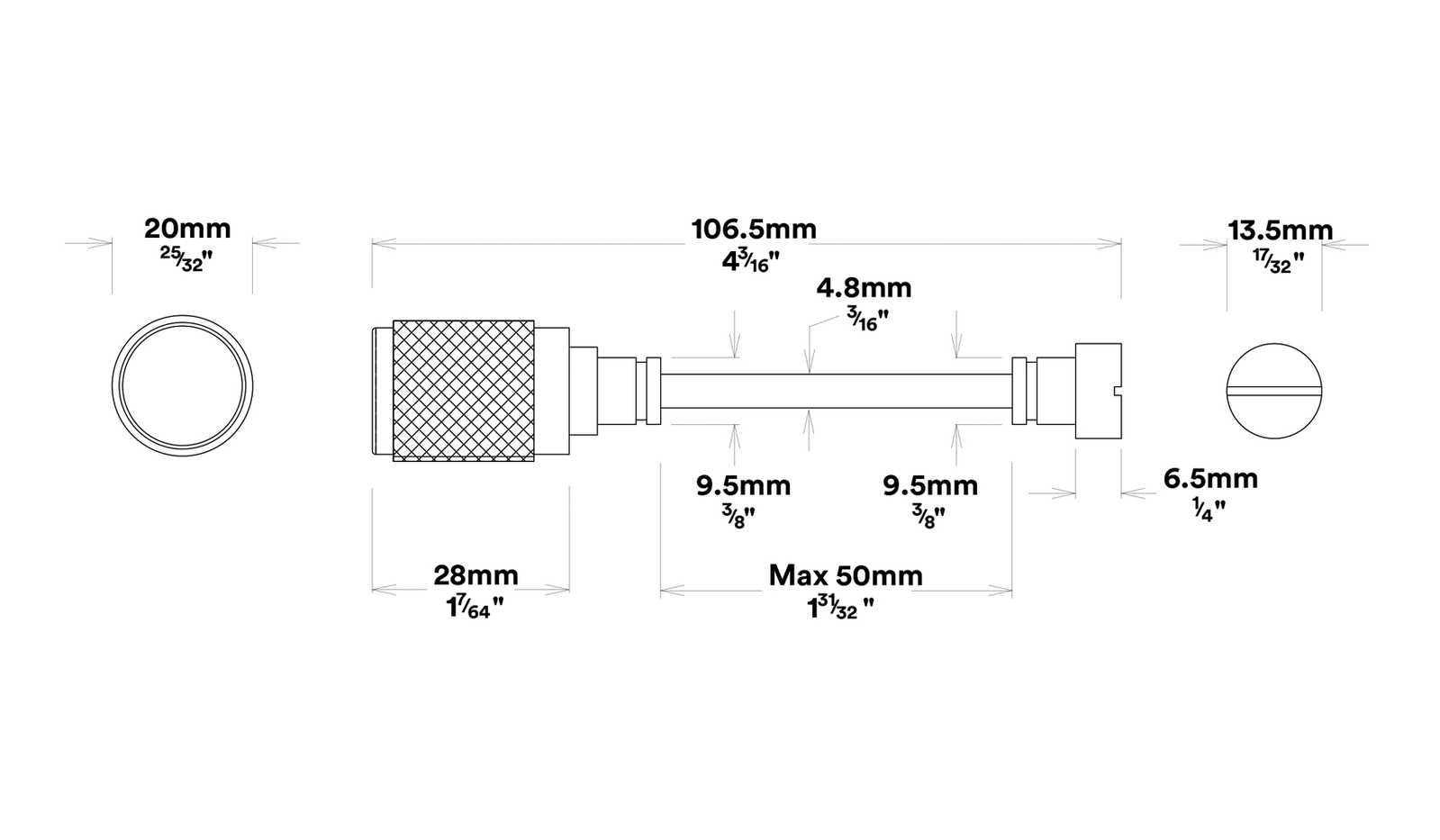

• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Brunswick lever is an impactful addition to any interior, the diamond cut cross knurling across the bar handle serves as a textural point of difference, sure to command attention
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

Specifications:

• Height: 240mm
• Width: 40mm
• Length: 120mm
• Projection: 57mm
• Centre to Centre: 205mm
• Function: Privacy
• Finish: Brushed Gold PVD

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
