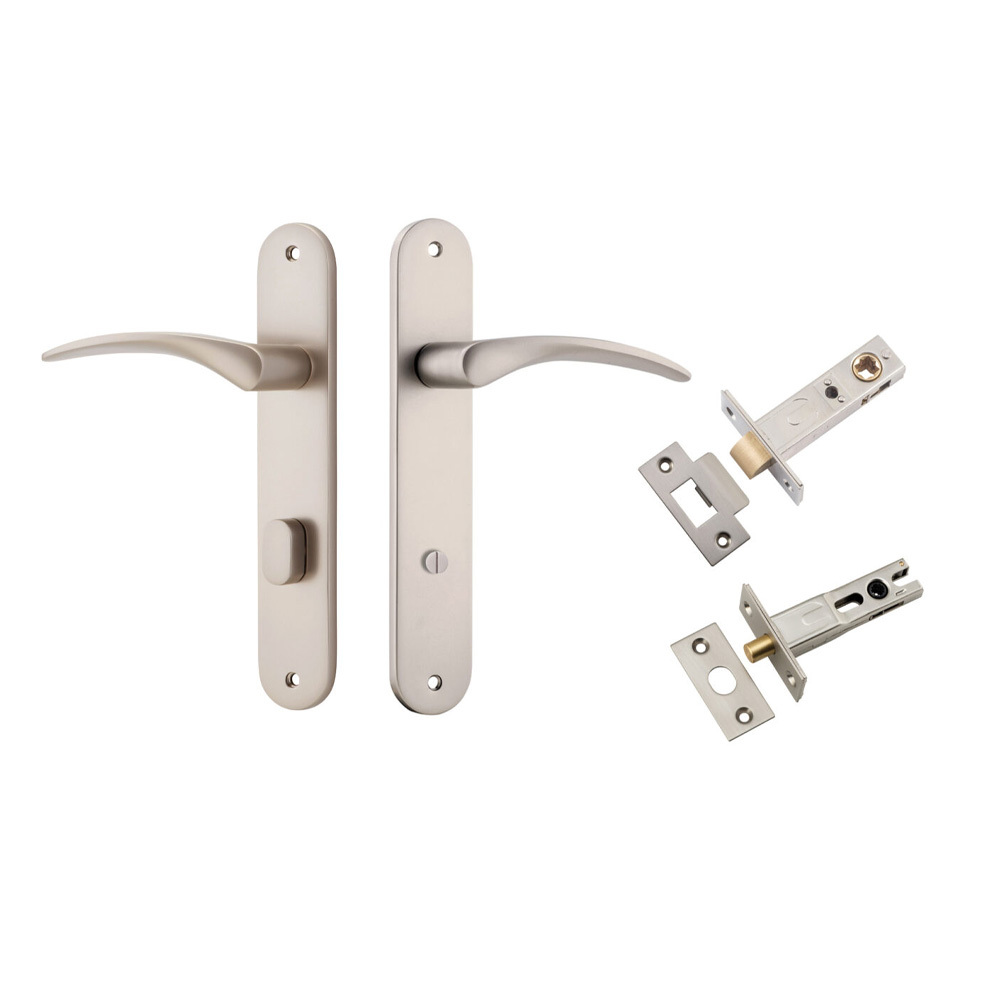

Iver Oxford Door Lever on Oval Backplate Privacy Kit with Turn
14728KPRIV60

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 2 x Levers on Backplates

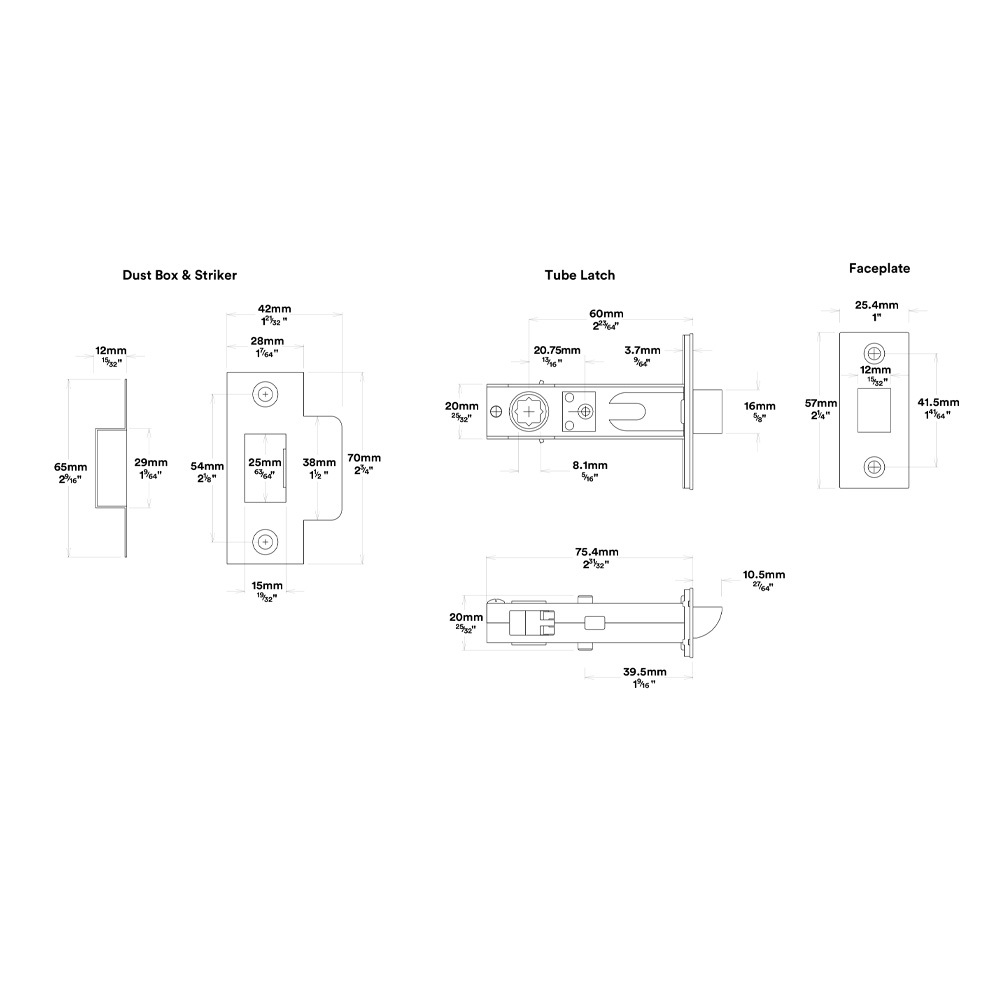

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

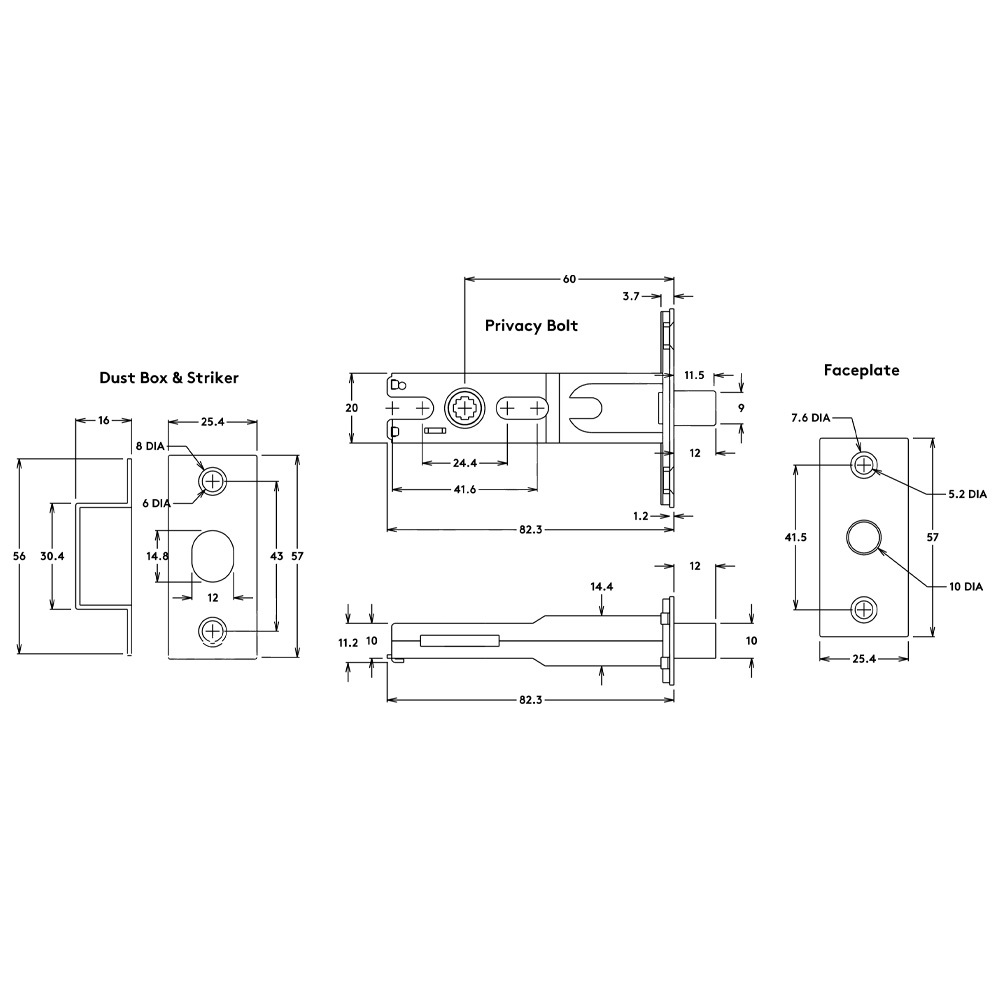

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• With its flowing lines and subtle curve, the Oxford lever will complement a range of settings
• Perfect for a new extension on an older home or light, minimal spaces, the Oxford blends various design influences to suit classic and modern homes.
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)
• Product includes all components required to install on your door

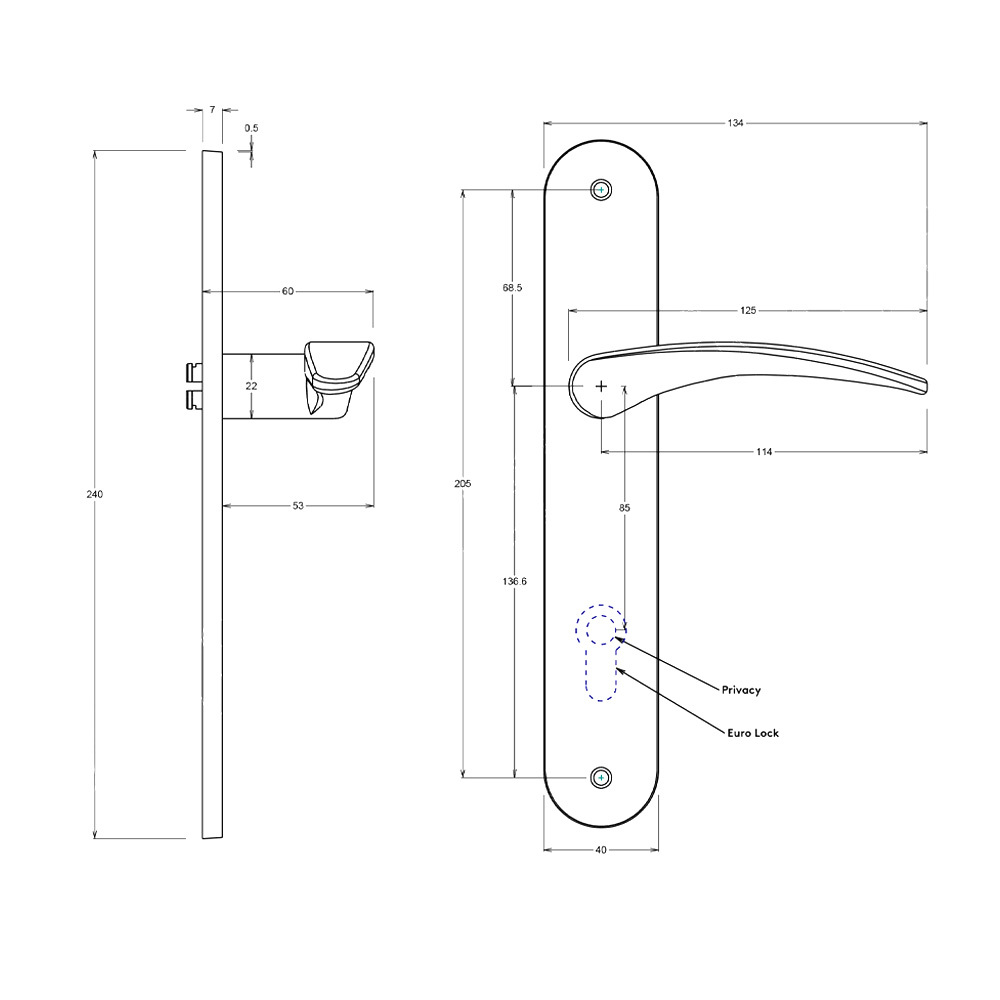

Specifications:

• Backset: 60mm
• Height: 240mm
• Width: 40mm
• Length: 125mm
• Projection: 60mm
• Centre to centre: 85mm
• Finish: Satin Nickel
