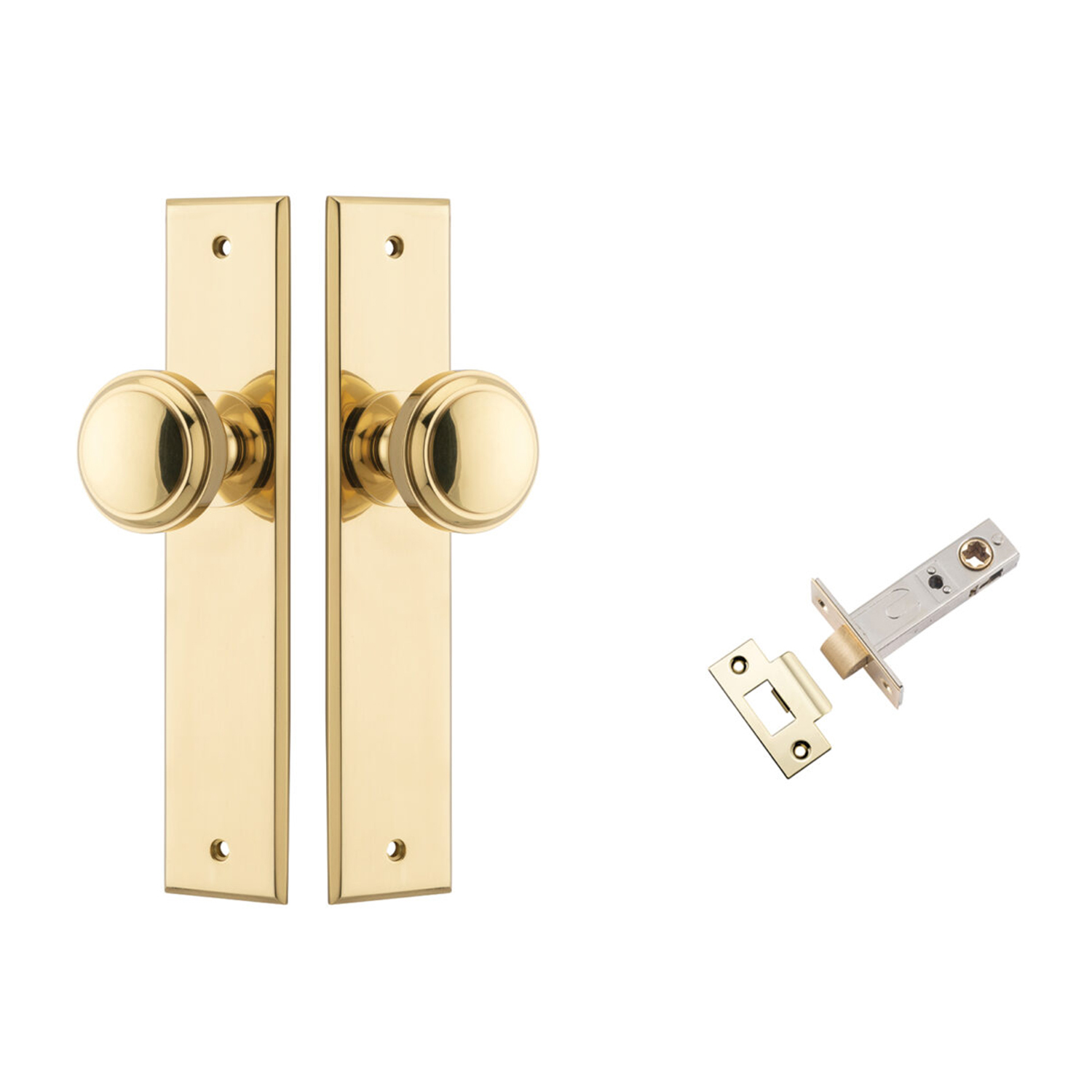

Iver Paddington Door Knob on Chamfered Backplate Passage Kit
10321KPASS60

Passage ideal for interior hallways, closets, and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 2 x Paddington Knobs on Chamfered Backplate

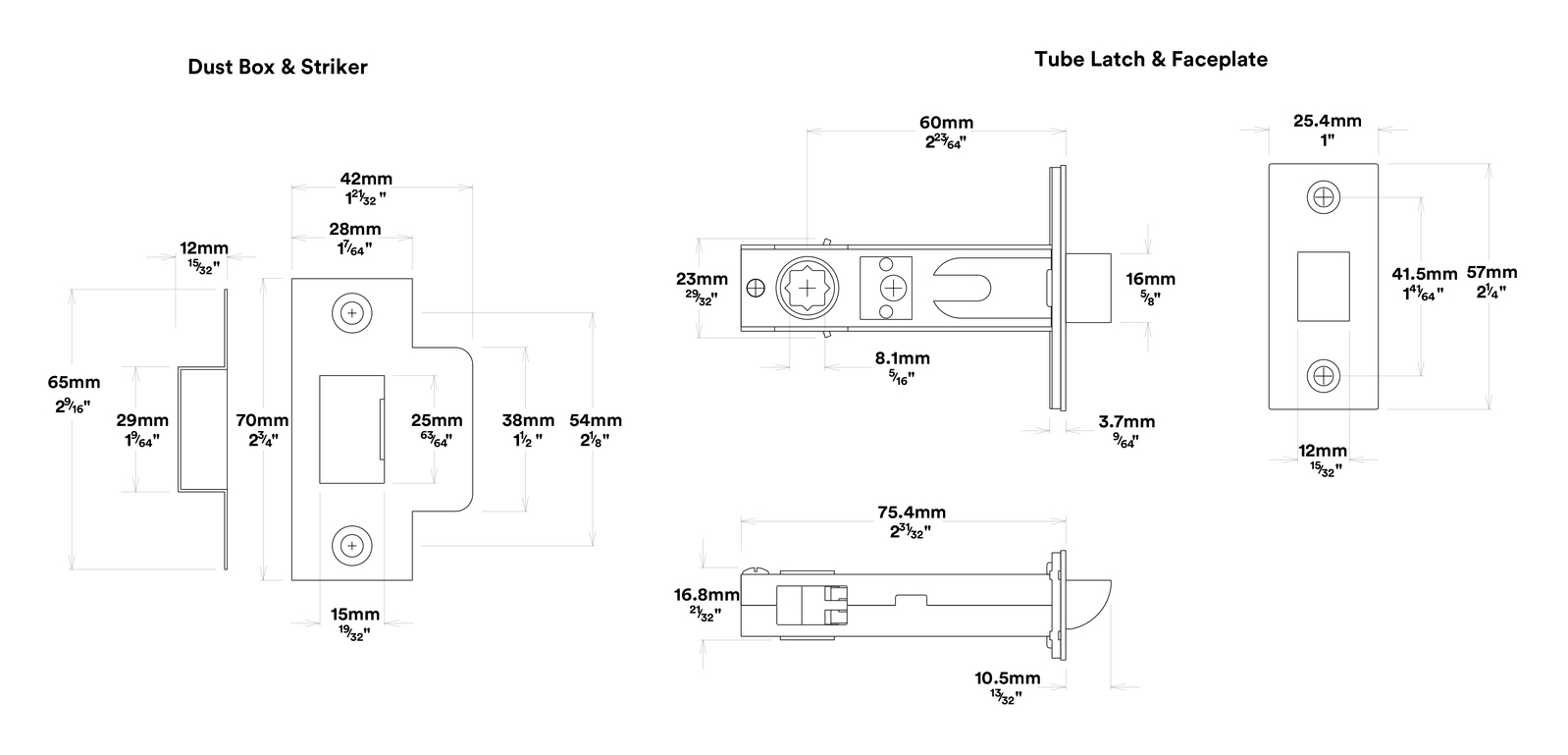

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 15 x Screws
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Tie Bolts
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Provides a subtle nod to its English roots with a refined, elegant appearance
• The versatile knob that is perfectly suited to a concealed fix rose or a number of different backplates
• For internal doors where a lock is not required, including bedrooms, living rooms, hall doors, and laundries

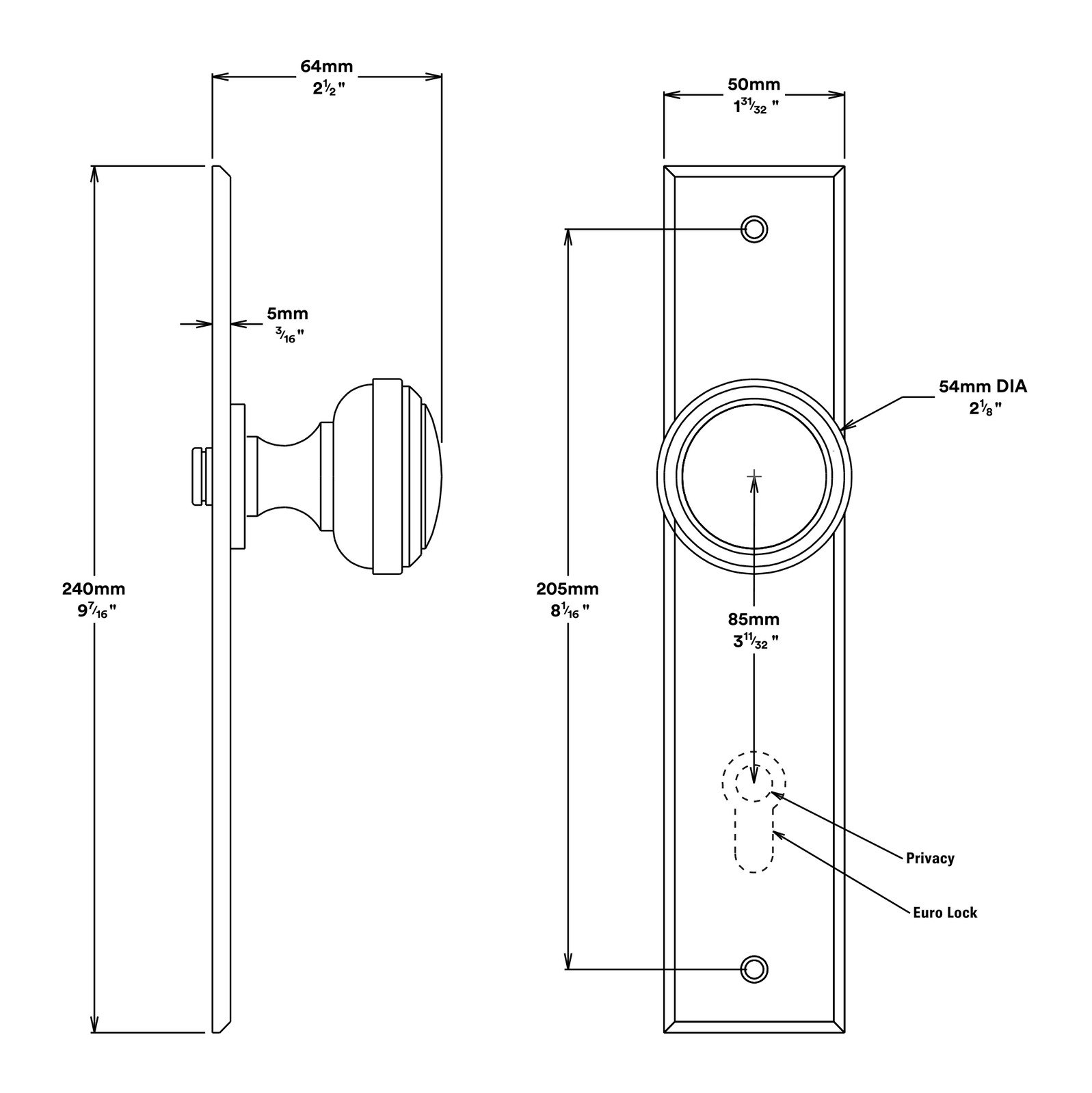

Specifications:

• Height: 240mm
• Width: 50mm
• Length: 55mm
• Projection: 63mm
• Centre to Centre: 205mm
• Finish: Polished Brass

Notes:

• Knobs and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
