Iver Paddington Knob on Stepped Backplate Privacy Kit
12838KPRIV60

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

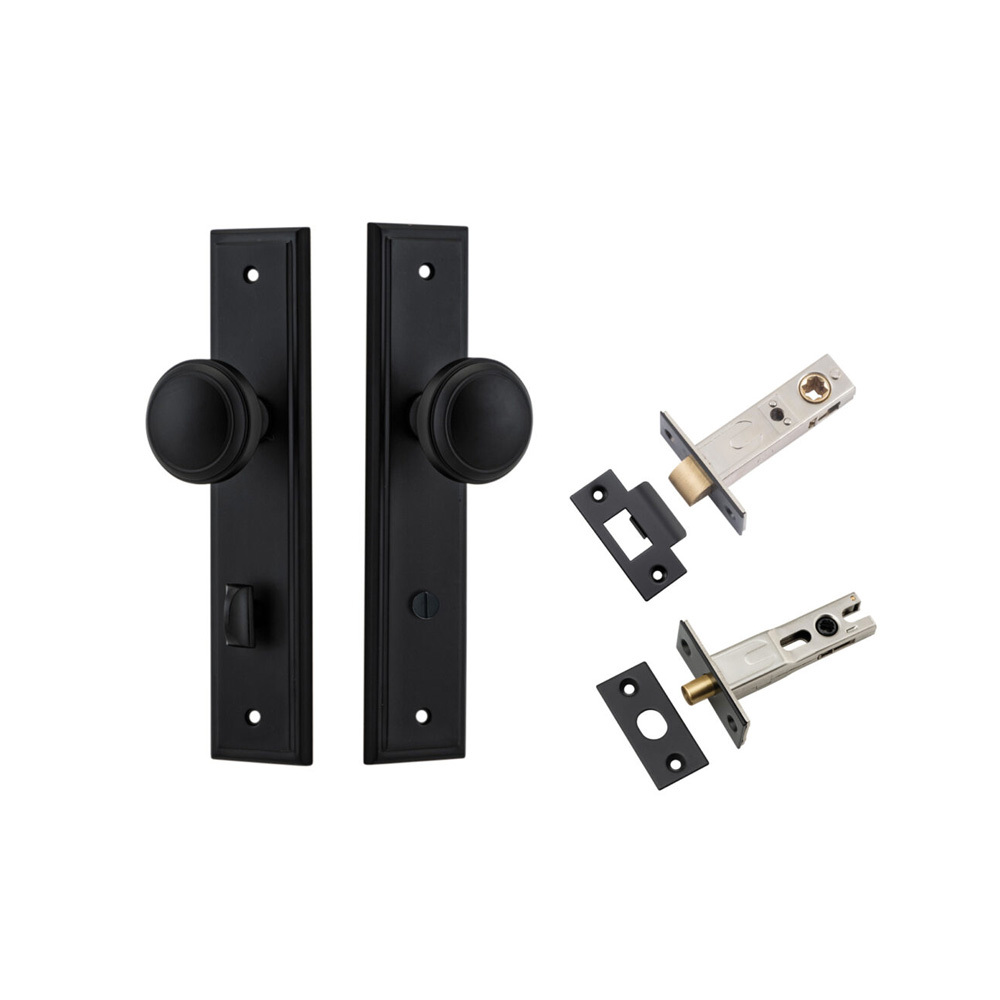

Includes:

• 2 x Knobs on Backplate

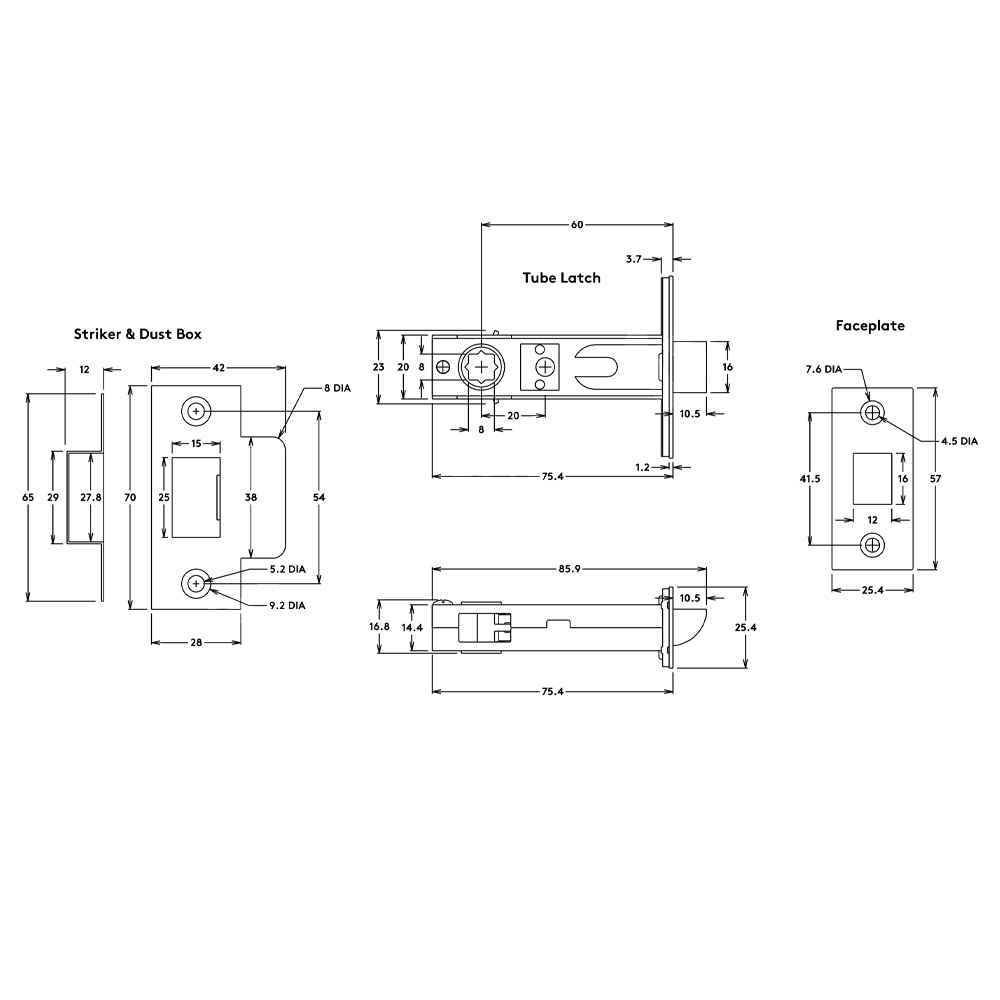

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

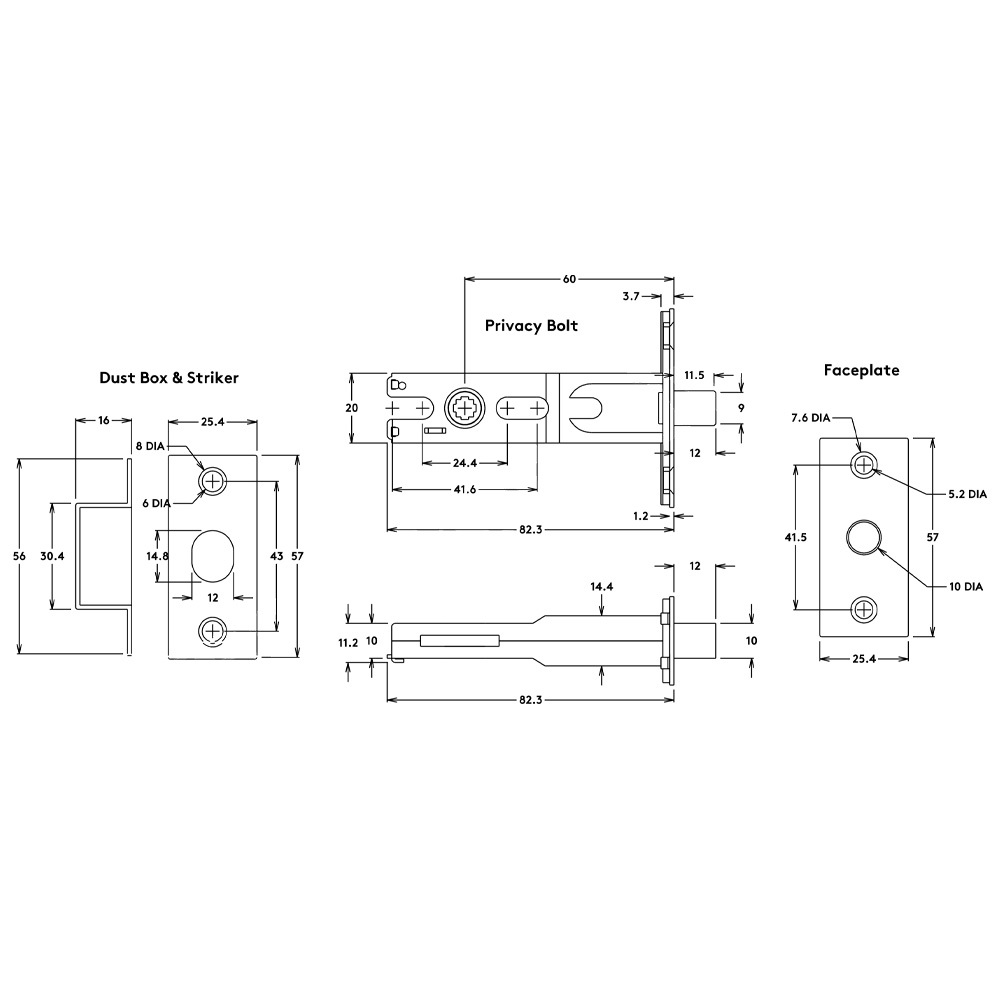

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Provides a subtle nod to its English roots with a refined, elegant appearance, a versatile knob that is perfectly suited to a concealed fix rose or a number of different backplates.
• Product includes all components required to install on your door
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)

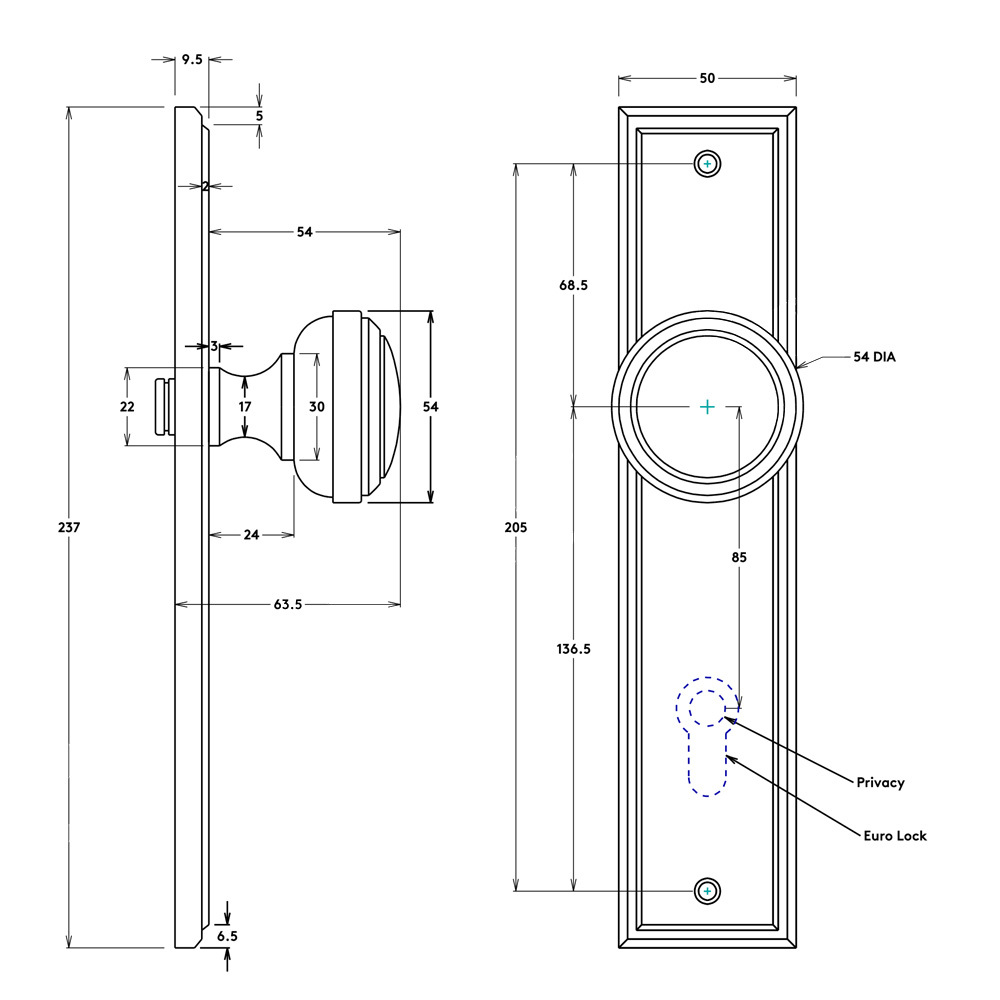

Specifications:.

• Backset: 60mm
• Height: 237mm
• Width: 45mm
• Length: 54mm
• Projection: 64mm
• Centre to Centre: 85mm
• Finish: Matt Black
