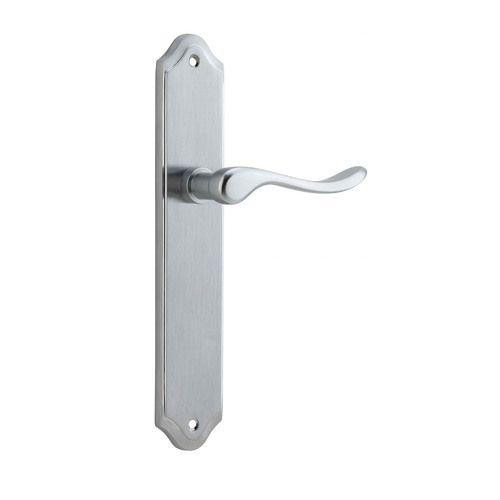

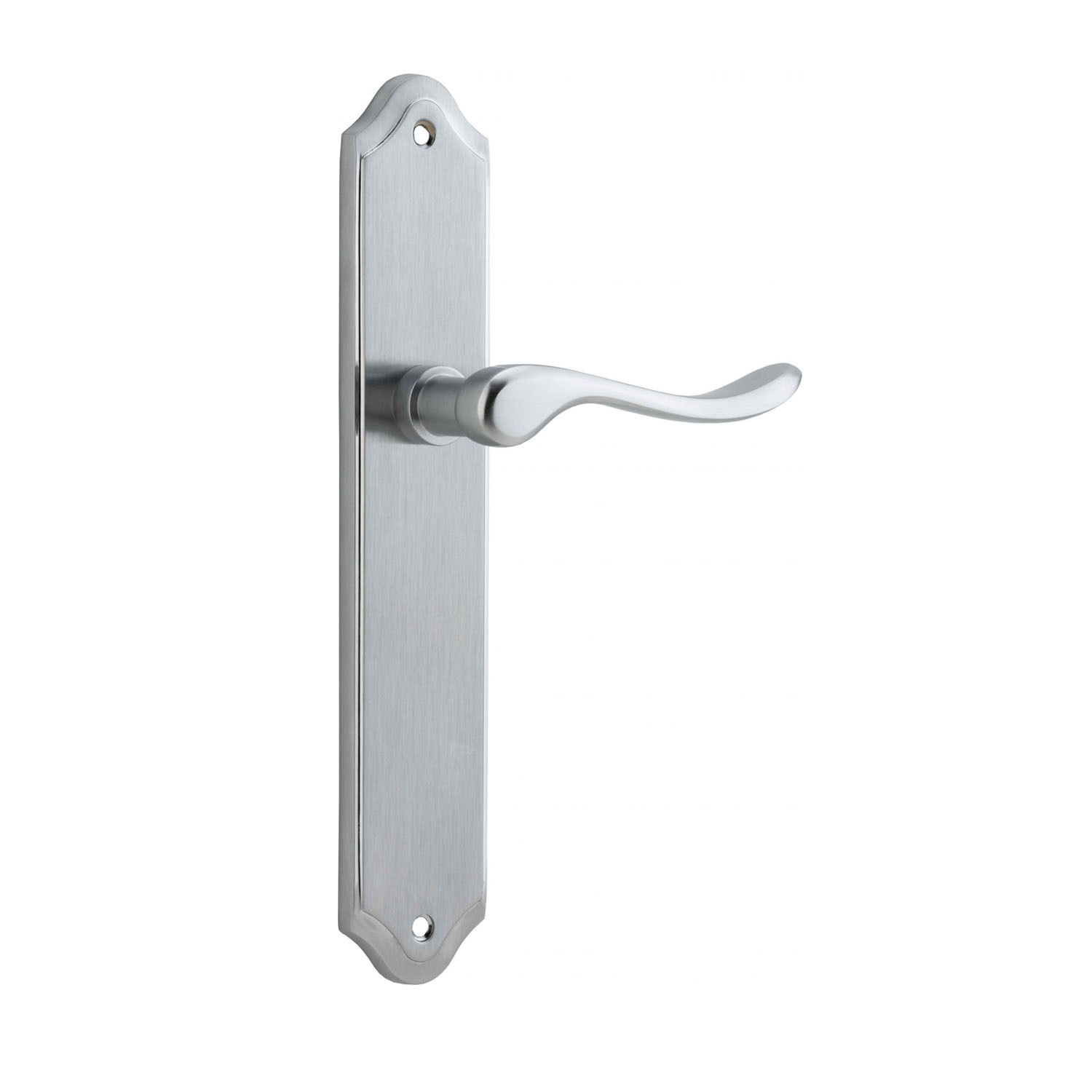

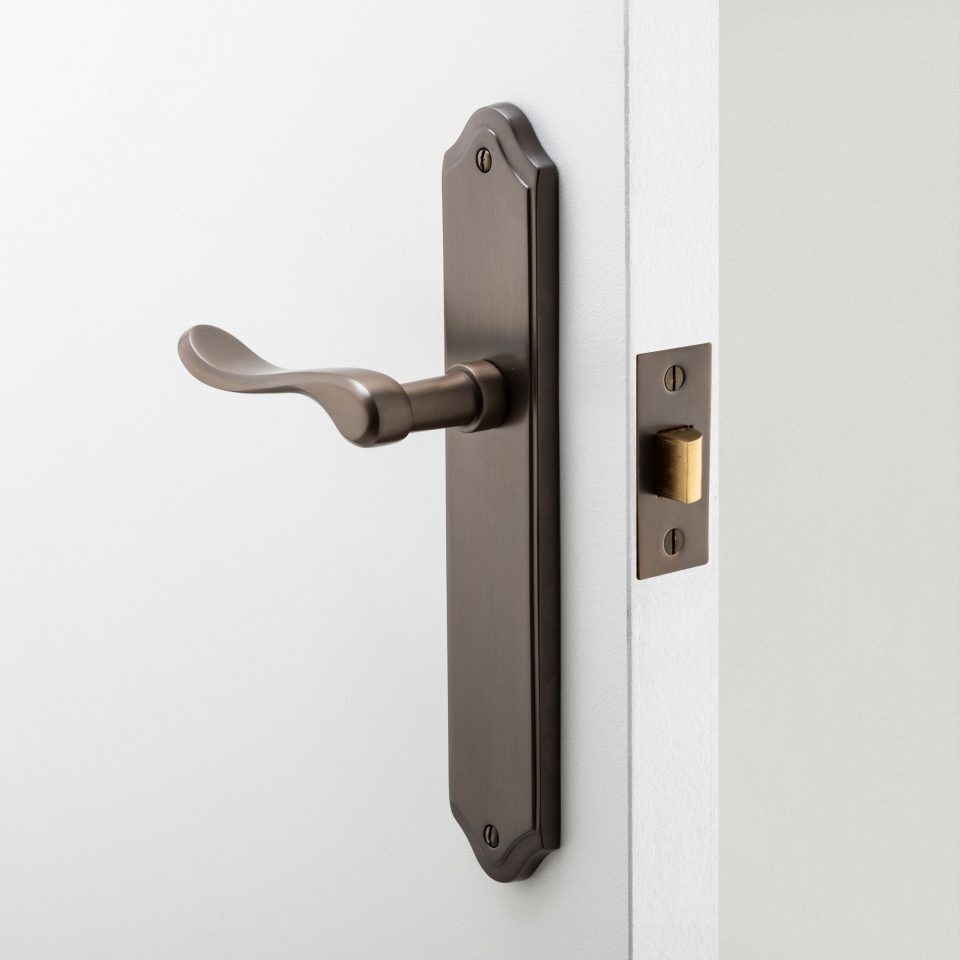

Restocking Soon: ETA Mid January - Iver Stirling Door Lever Handle on Shouldered Backplate Passage Brushed Chrome 12422 - Customise to your needs
Restocking Soon: ETA Mid January
WAS $232.90
NOW $209.61
RRP $274.00
Notify Me

45mm

WAS $23.80
NOW $21.42
RRP $28.00

60mm

WAS $23.80
NOW $21.42
RRP $28.00

70mm (for Privacy & Passage only)

WAS $23.80
NOW $21.42
RRP $28.00

This item is frequently purchased with

Iver Stirling Door Lever Shouldered Backplate
12422

Passage Function - can be retracted by both the inside and outside levers at all times. This door lock function is never locked and has no key or locking mechanism on either side of the door.

  • Inspired by the delicacy and glamour of Victorian era design, the Stirling adds an element of prestige to any space.
  • The design features fluid lines and simple flair, with this timeless piece bringing you daily moments of elegance throughout your home.

Features:

  • Successfully Fire Rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
  • Comes with face fix wood screws and tie bolts

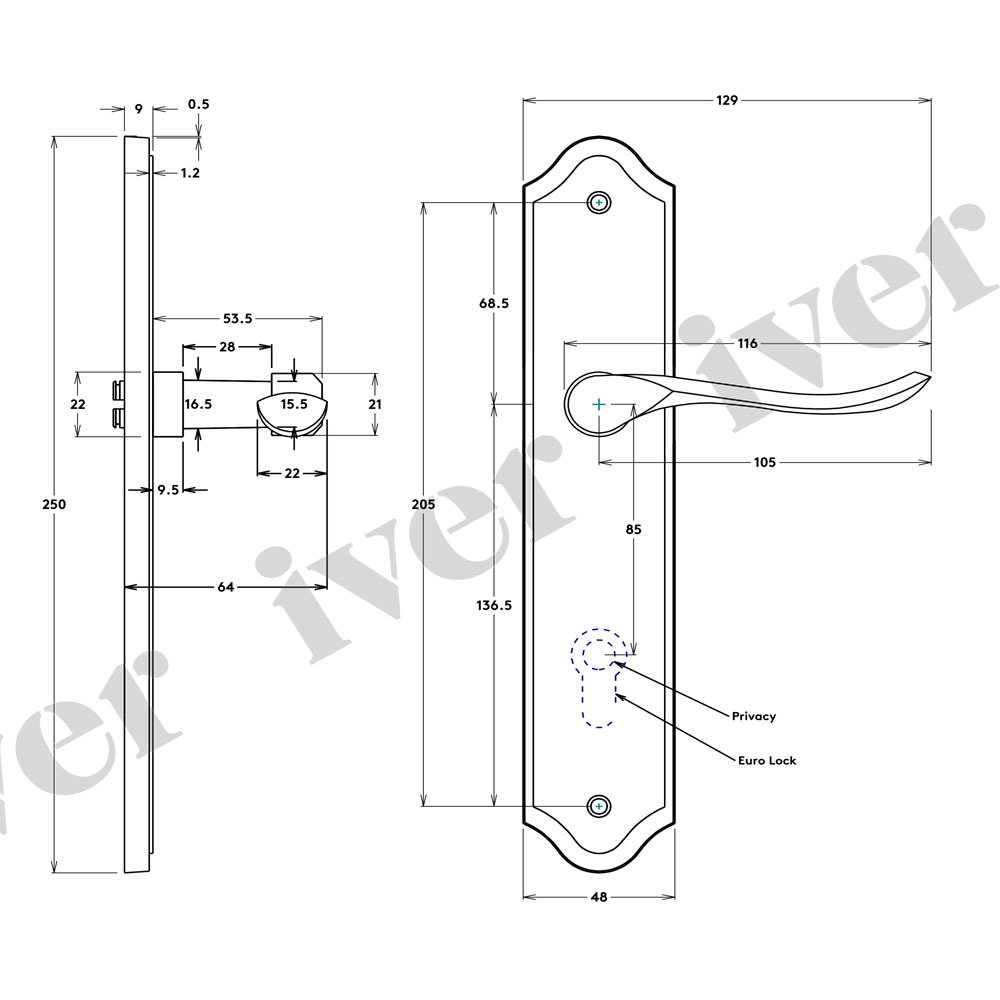

Specifications:

  • Height: 250mm
  • Width: 48mm
  • Projection: 64mm
  • Centre to Centre: 205mm
  • Function: Passage
  • Finish: Brushed Chrome
  • Sold as Pair

With this listing, by answering a couple of short questions, you can create a kit customised to your needs:

For "Passage" doors (e.g. a bedroom that doesn't need locking), you will generally need a lever/knob + a Tube Passage. If it's a double door, you may also require flush Bolts.

Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable option in various lengths.

When using flush bolts:

  • We recommend you use one at the top and another at the bottom to keep the door secure and from rattling.
  • For taller doors (2100mm and above) most customers prefer to use a 300mm on top of the door and 150mm on the bottom for extra security and protection against the wind. Alternatively, some customer's use a magnetic catch (such a PLS24PRO Magnetic Catch).

For "Privacy" doors (e.g. a bathroom, en suite or a bedroom that you want to lock from the inside by turning a snib) you will generally need a tube Passage as well a privacy bolt.

For "Entrance" doors (e.g. a front / back door or any door that you want to lock with a key) you will generally need:

  • A Mortice lock (if you have a rebated (slightly overlapping) double door, please choose a "rebated" version (which also comes with a rebate kit)
  • Once you've determined the thickness of your door, you can select either a "Key/Key" (lock and unlock with a key from both sides) or a "Key/Thumb" (meaning you can lock the door from the inside using thumb turn, instead of a key). The choice here is one of personal preference.

Flush Bolts

  • For double doors, you will also need flush bolts.
  • Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable options in various lengths.
  • When using flush bolts, most customers prefer to use a 300mm on top of the door (as it's easier to reach) and 150mm on the bottom for extra security and protection against the wind.

Hinges

(Amongst others) we offer Ball Bearing, Fixed Pin and Loose Pin hinges:

  • Ball Bearing - We recommend using these for Entrance and heavier doors. This is because the ball bearing reduces friction on the hinge and stops squeaking and wearing of the hinge
  • Fixed Pin - Mainly used on internal doors. They can also be used on entrance doors that are not heavy
  • Loose Pin - Internal use only. Mostly used on bathroom door so the door can be removed (lifted off) in the locked position (e.g. in case of an emergency)

Depending on the weight of your door, you will generally need 3 hinges for an Entrance door (which are more solid) and 2 hinges for internal doors.

Please use the tables below as a guide on the number of hinges you require, as well as the recommended hinge positioning.

SKU TRA12422
Barcode # 9343857393347
Brand Iver
