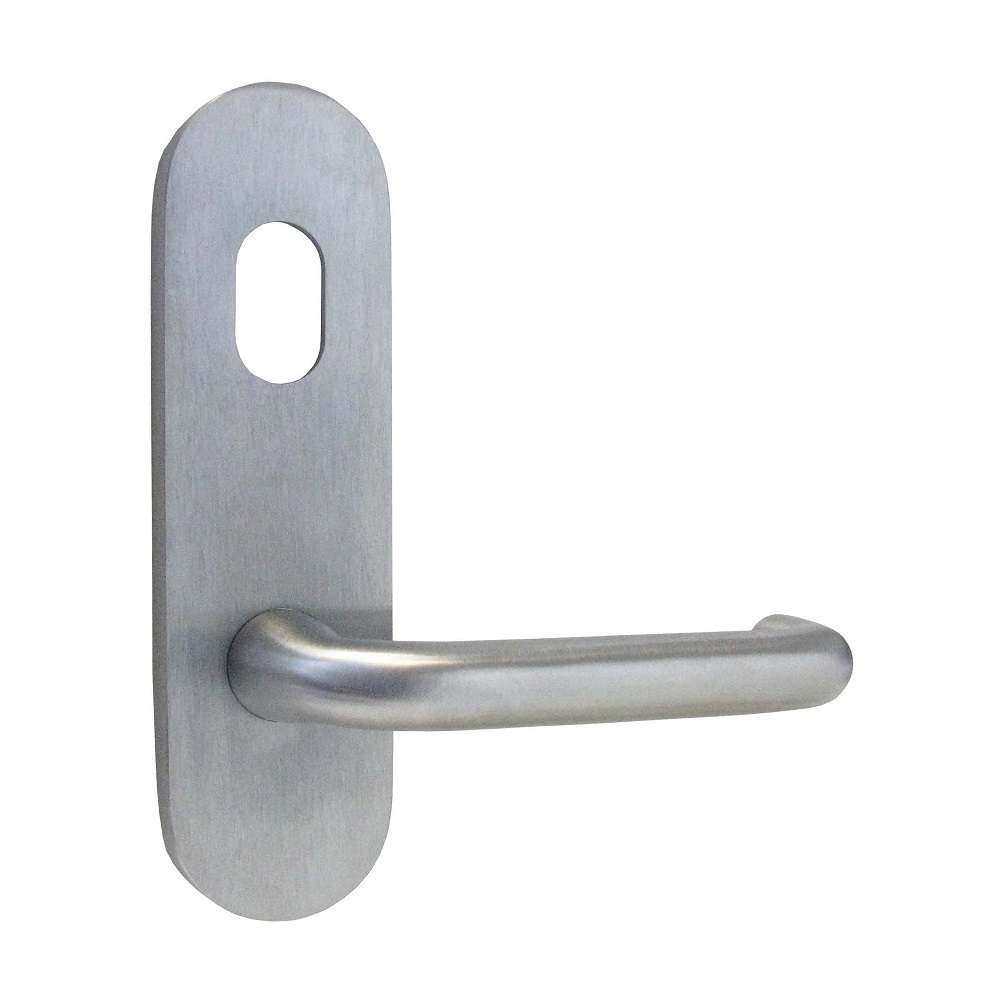

Kaba 100 Series Rounded Edge Plate Furniture w/ 25 Lever
101C-25SCP

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

The Kaba 100 series round end solid forged brass door furniture is designed for use with contemporary Australian style mortice locks and latches

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: Plate door furniture suits door thickness from 32mm minimum to 50mm maximum. Thicker doors require extended spindles, turn bars and longer tiebolt fixing screws

Specifications:

• Height: 165mm
• Wide: 44mm
• Thick: 12mm
• Finish: Satin Chrome Plate
