Dormakaba Entrance Lock Pack MS2 Mortice Lock Round Ended Furniture & Cylinder

Entrance commonly used on front / back door or any door that you want to lock with a key.

Entrance Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

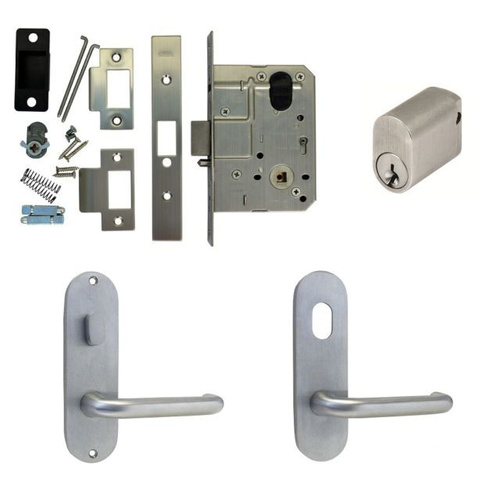

Includes:

• 1 x Dormakaba MS2 Mortice Door Lock Commercial Grade 60mm Backset Satin Stainless Steel (MS2602)
• 1x 6700 Series Plate Furniture w/ Cylinder Hole & 30G Lever (6700/30G)
• 1x 6703 Series Plate Furniture w/ Turn Snib & 25 Lever (6703/30G)
• 1 x Scope Oval Cylinder W Cam 6 Pin Keyed Alike 864700 Satin Chrome (CYLO6LSC.KAW)
• 1 x Lockton Cams 3 Pack W X Z & Rabbit Suits Oval Cylinders (410-SC-CAM)

Dormakaba Door Lever on External Plate Cylinder Hole
6700/30

Features:

• A stylish alternative to the rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Non handed plate with removable stop screw for opposite handing
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban series lever designs

Compliance:

• Fire Rating: The 6700 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
• Disabled Compliance: Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

Specifications:

• Material: 316 Satin stainless steel
• Door Thickness: 32mm - 50mm
• Length: 165mm
• Width: 45mm
• Depth: 10mm
• Includes Fixing Screws: Yes
• Finish: Satin Stainless Steel

Dormakaba Furniture Round End Plate Door Lever with Turn Snib
6703/30G

Features:

• Rectangular interior round end plate
• Standard turnsnib with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Compliance:

• Fire Rating: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled Compliance: Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

Specifications:

• Door Thickness: 32mm - 50mm
• Internal / External: Internal
• Plate Type: Round End
• Fire Rated: Yes
• Material: Stainless Steel
• Length: 165mm
• Width: 45mm
• Depth: 10mm
• Screw Fixing Centres: 148mm
• Plate Has A Lever: Yes
• Plate Has A Turnsnib: Yes
• Finish: Satin Stainless Steel

Dormakaba MS2602SSS Heavy Duty Mortice Lock
MS2602SSS

Features:

• MS2602 primary mortice lock
• Operated by key or handle outside or by turnsnib, key or handle inside
• 14 mm stainless steel reversible latch bolt
• Easily adapted to most functions
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Compatible with most electric strikes
• SCEC approved (SL3)
• Conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008
• Conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008

Specifications:

• Material: 304 Grade Stainless Steel
• Backset: 60mm
• Door Thickness: 32mm - 50mm
• Fire Rated: Yes
• Anti-Lockout: Yes
• Finish: Satin Stainless Steel

Scope Oval Cylinder
CYLO6LSC.KAW

Specifications:

• Cam: W
• Number of Pins: 6
• Cylinder Key Number: 864700
• Keying: Keyed Alike
• Finish: Satin Chrome

Lockton Cams 3 Pack W X Z  & Rabbit Suits Oval Cylinders
410-SC-CAM

Includes:

• 1 x Z Cam
• 1 x W Cam
• 1 x "Rabbit Ear" Cam
• Number of Cams per pack: 3
