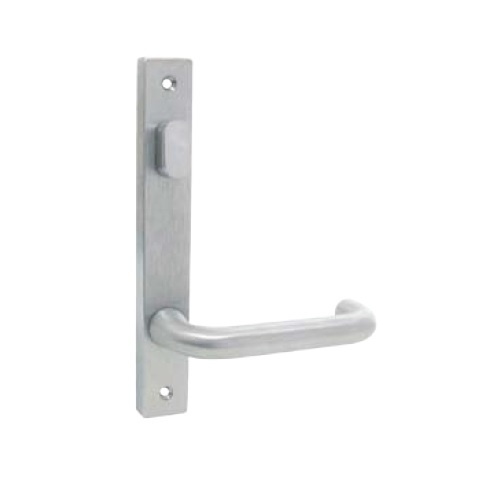

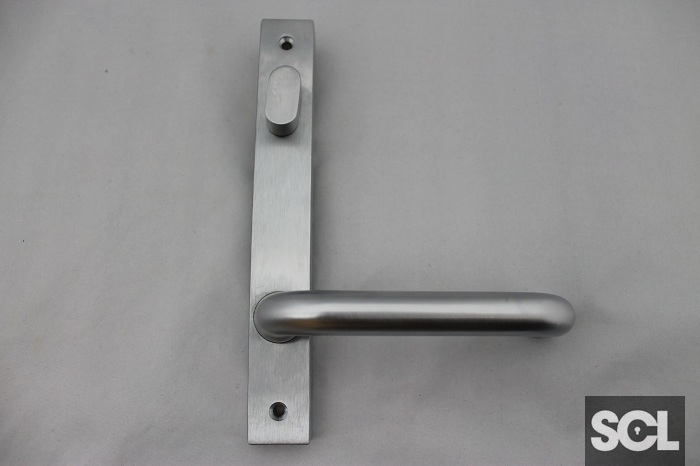

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Turn & 25 Lever
N613V-25SCP

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases
• Door Thickness: Supplied to suit door thickness 32mm to 50mm.
• Disabled access AS1428.1 compliant lever
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets (only when used in conjunction with the M Series mortice lock).

Specifications:

• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate
