Kilargo IS7020si Compression Type Door Perimeter Seal

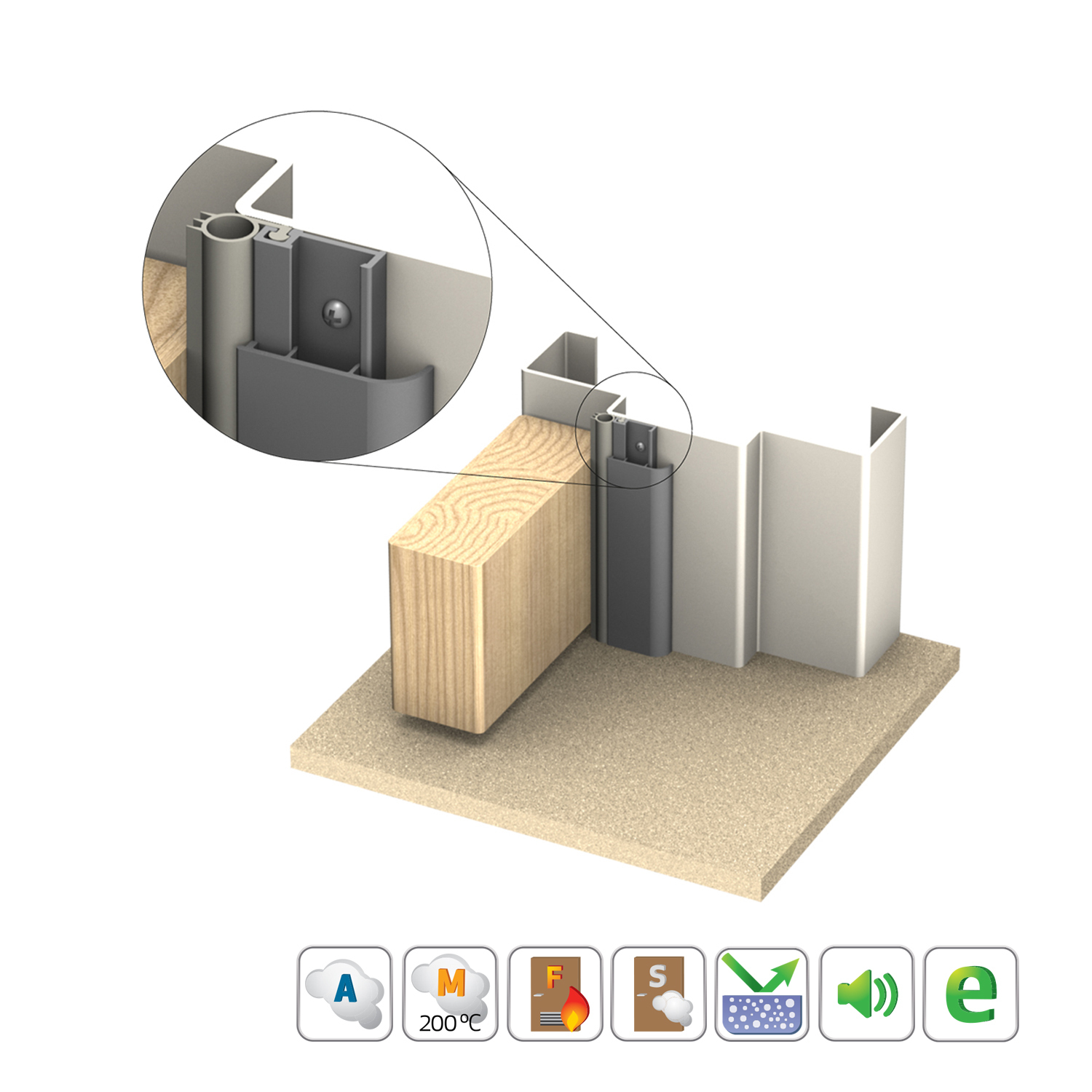

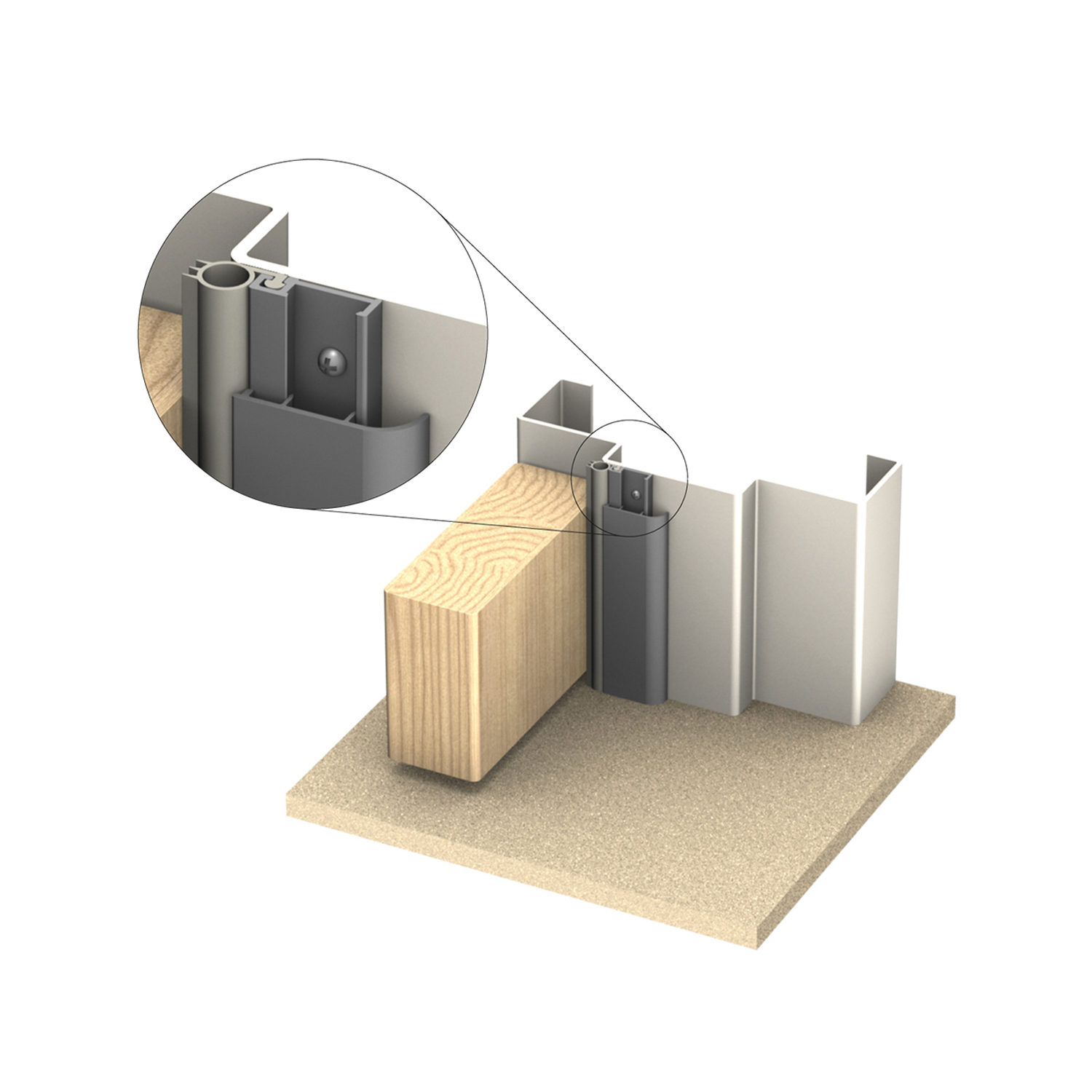

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

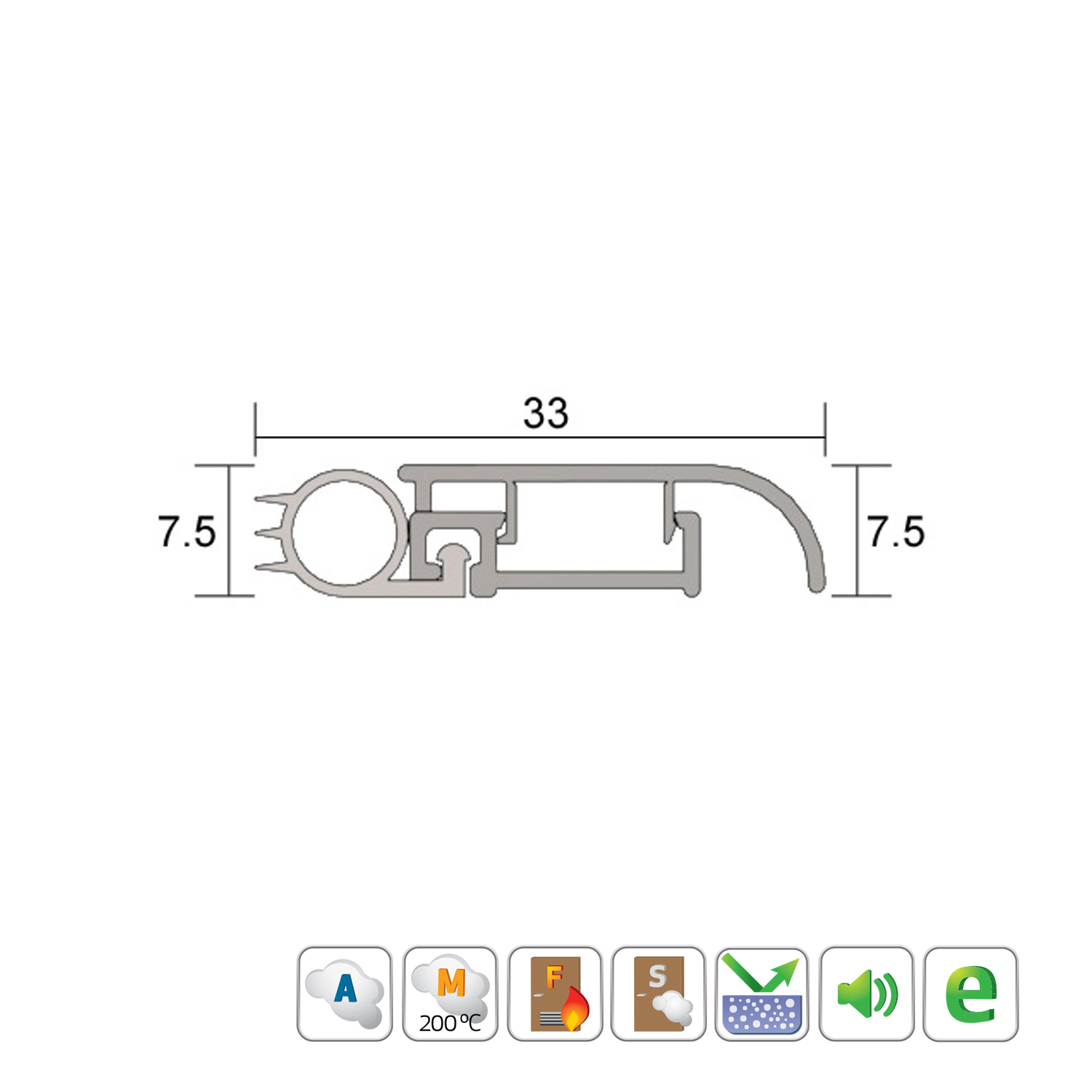

  • Aesthetically designed, slim-line compression type perimeter seal for installation around the head and jambs of single swing doors.
  • They are proven to be effective acoustic, smoke, light, dust and weather seals.
  • The aluminium carrier is pre-drilled and slotted for adjustable retrofit installation.
  • The easy to install, “snap-on”, anodised aluminium cover plate provides concealed fixings.


  • Gap Size: Min. 0mm / max. 6mm
  • Fixing: Rebated frames of single doors, specify a long back set door latch
  • Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
  • Finish: Clear Anodised


  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
Brand Kilargo
