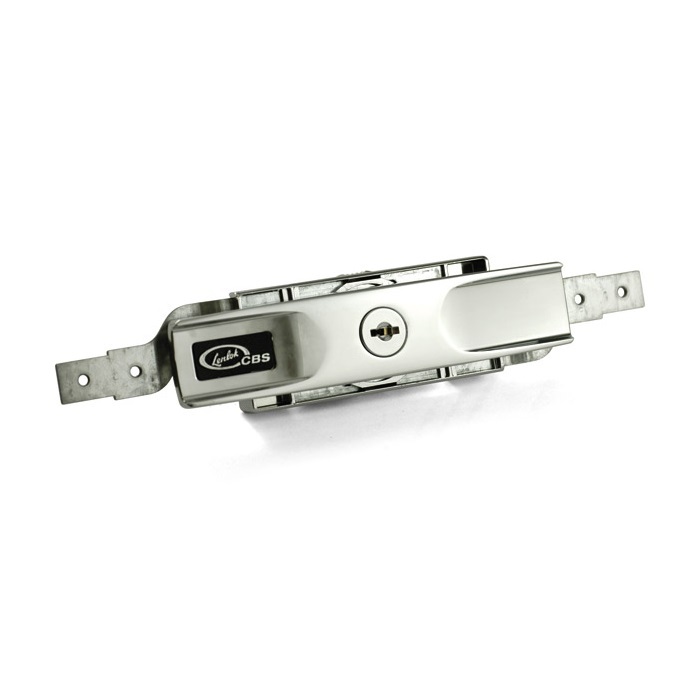

Lenlok CBS Roller Lock

The design team at Lenlok have recently undertaken a major upgrade of all models. The All New Lenlok range of roller door locks is an advancement on the tired range of like products that have been on the market for many years now. With a far more modern design, retrofit features and keying options, this range is a must for the retailer, tradesman or manufacturer. This model is a narrow style version and has a rectangular fascia with dual finger grips.


  • Retrofits to existing market standards e.g Lenlok 3321
  • C4 4 pin tumbler cylinder is LKW5 (LW4) keyway
  • Supplied with cylinder
  • Can be re-keyed without the removal of the main mechanism from the door
  • Patented Cam Mechanism Design allows the lock to be changed from a freelatching mode into a deadlocking mode and vice versa
  • Cam cannot be removed in the locked position
  • Tamper proof screws supplied to enhance security in deadlocking mode
  • The key is supplied with a cut code that can be used both from the front and back allowing locking and unlocking from inside when in deadlocking mode
  • Ergonomically designed internal operating knob offers a more positive grip
  • Locking arms have a 19mm throw
  • High quality bright chrome finish zinc alloy metal fascia
  • High quality full metal locking mechanism
  • Lock body designed for minimum protrusion (smaller than existing Lenlok models)
  • Supplied with tape to hold face plate on for easy installation
  • Slide arms are constructed from galvanised steel for increased strength and have threaded holes for the screws making installation easier
  • Lock body has patented integrated mechanism protectors. These keep the door from applying pressure to the mechanism
Barcode # 9312435018125
Brand Lenlok
