Locinox Intralec Electric Strike Mortice Lock
P00011563-9005

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

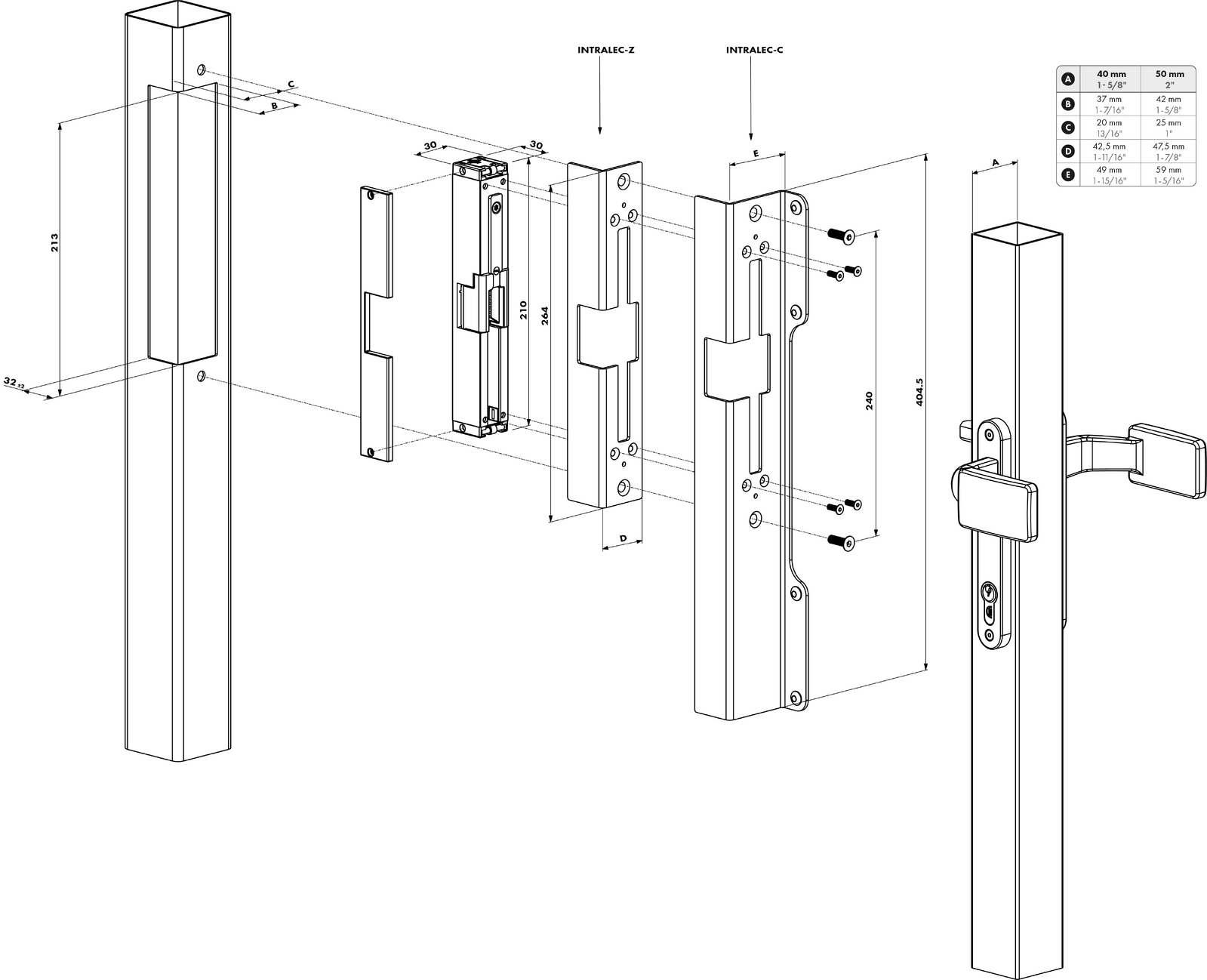

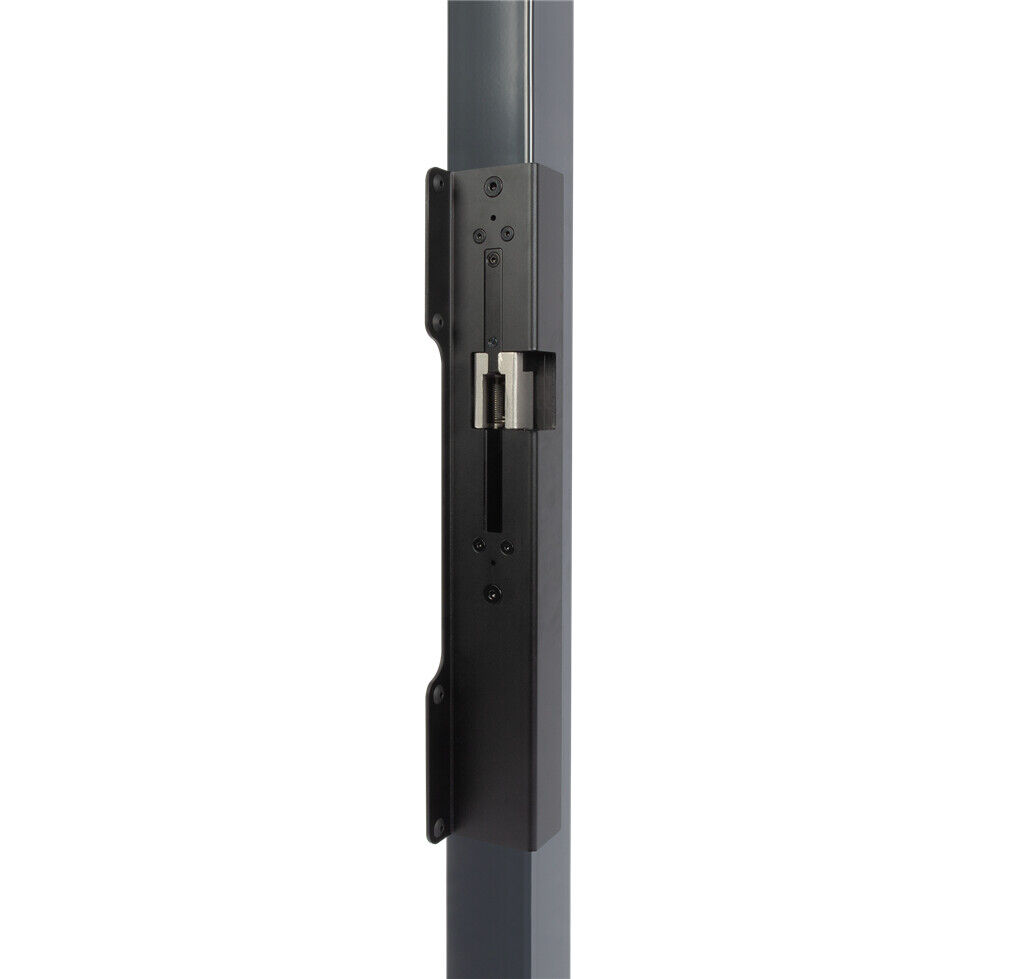

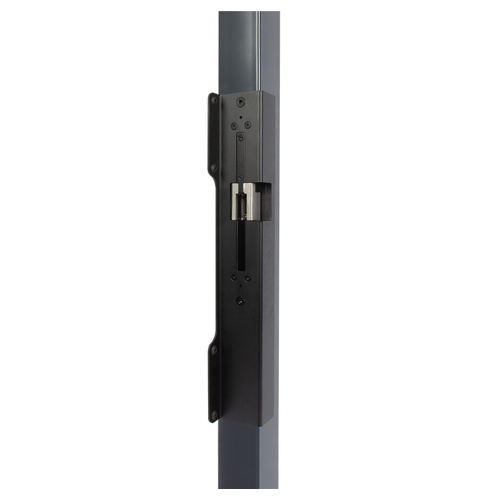

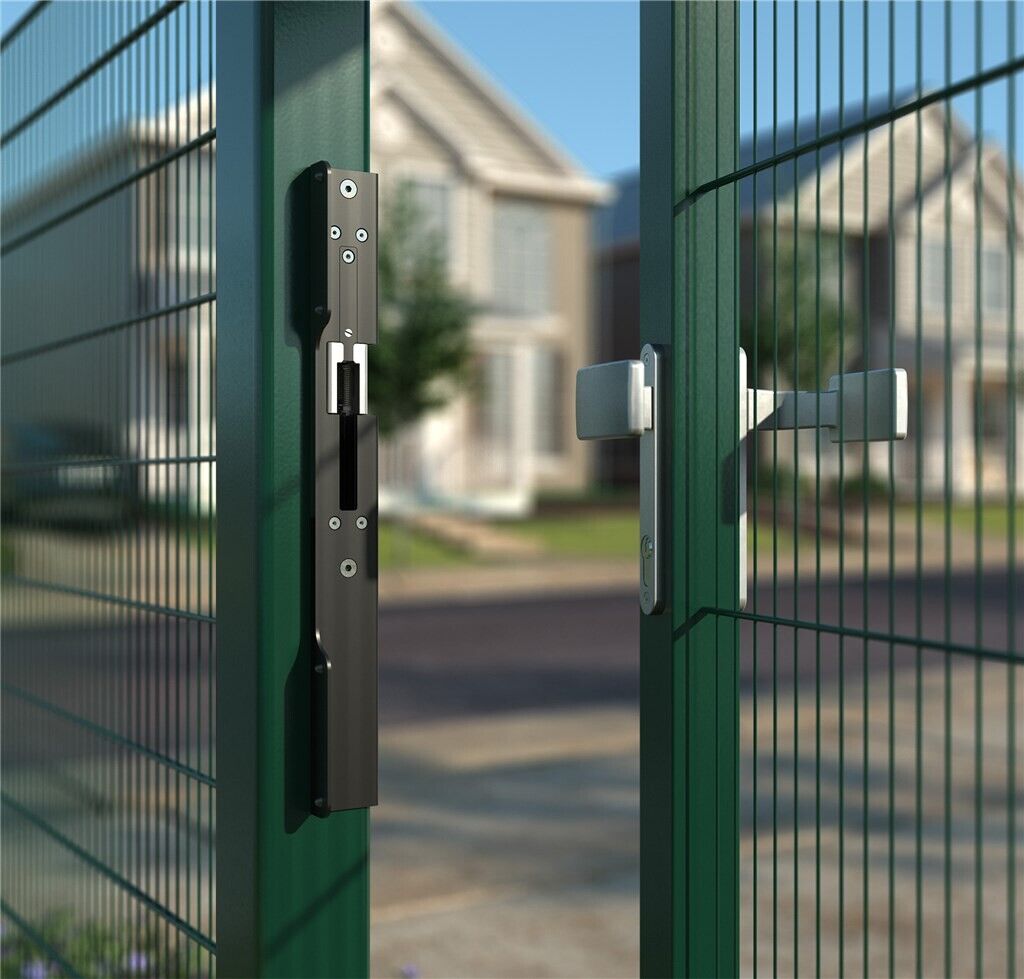

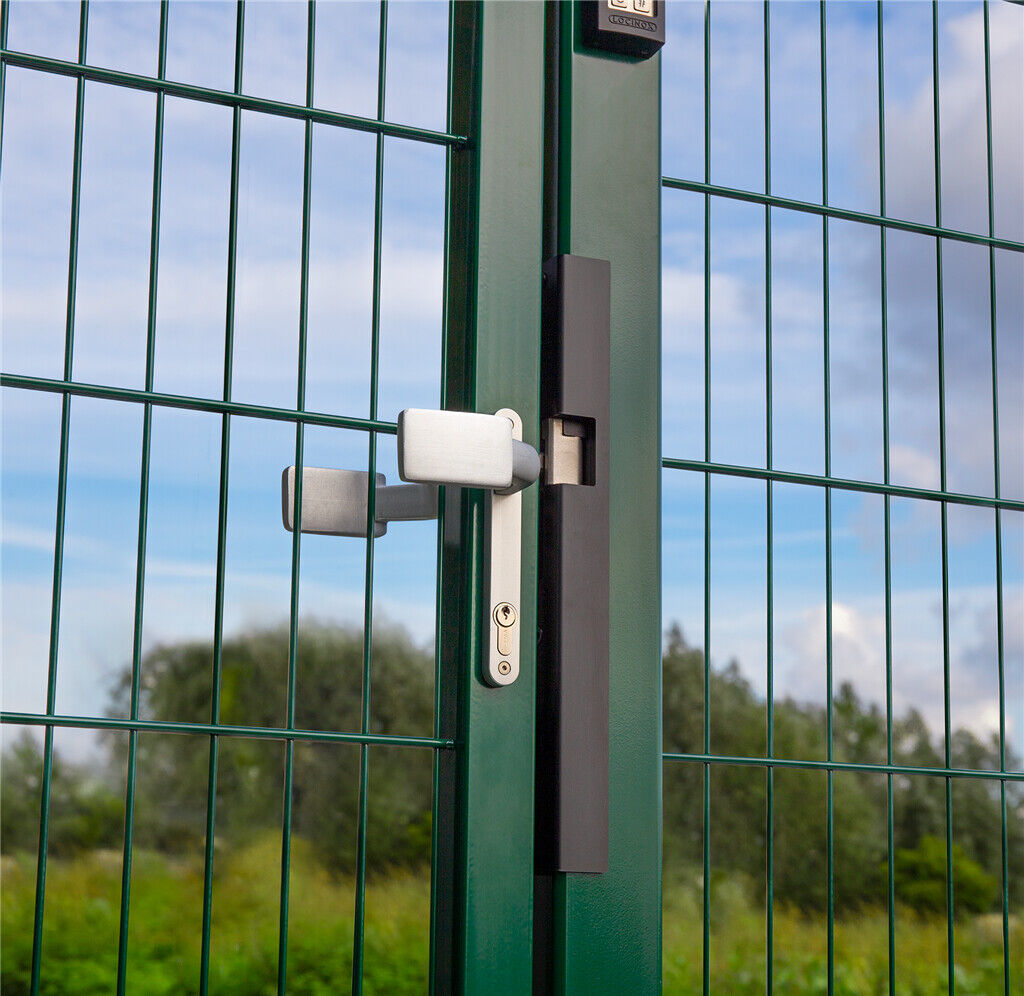

• The Locinox Built-in Electric Strike is specifically designed for gate frames with a 50mm profile. This electric strike offers a reliable and secure locking solution for your gate system. It is installed directly into the gate frame, ensuring a seamless and integrated look. The fail-close functionality ensures that the gate remains securely locked in case of power failure or emergencies. Enhance the access control and security of your gate with the Built-in Electric Strike.

Features:

• Elegant and discreet electric keep which is built-in the post
• Easy installation thanks to the patented Click-It system
• Can be installed without a strike plate and a mechanical override is possible
• Built-in electric keep for Fortylock, Fiftylock and Sixtylock insert locks For 50 mm gate profiles - Fail Close, with stop plate
• Tested up to 500.000 movements
• Fast and easy fixing with Click-it
• Resistance to pressure on the latch bolt: 300 kg
• Deep closure of 17,5 mm of the latch bolt
• Easy left or right changing

Specifications:

• Left-Right Adjustability: Yes
• Installation Method:
  • Click-it
  • Hexagon Screws (HEX 2.5 / 4)
• Voltage: 12V-24V AC/DC
• Consumption: 0,4A @ 24V 0,8A @ 12V
• Power: 9.6W
• Gate Profile: 40 mm; 50 mm
• Minimal Distance Gate - Post: 10mm
• IP Rating: 54
• Materials Main Part(s):
  • Anodised Aluminium
  • Resin Encapsulated PCB
  • Stainless Steel
• Hours of Salt Spray Testing: 500
• Test Frequency: 500000
• Corrosion Resistant: Black anodized aluminum housing
