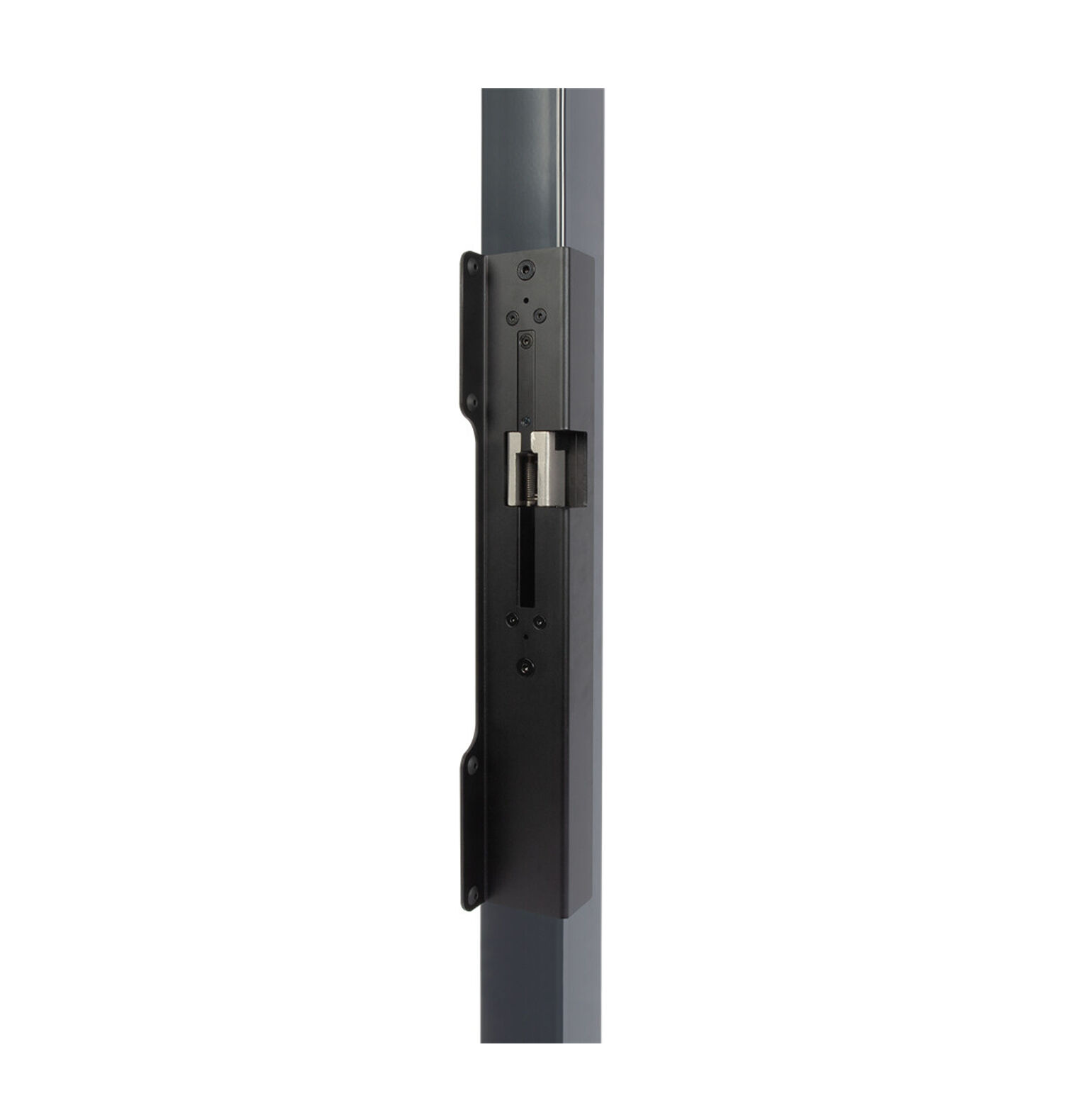

Locinox INTRALEC Electric Strike for Forty Mortice Locks Fail Close
P00011570-9005


Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

Features:

• Elegant and discreet electric keep which is built-in the post. Easy installation thanks to the patented Click-It system
• Can be installed without a strike plate and a mechanical override is possible
• Intralec is available in Fail Open (Ruptura) and Fail Close (Emissa) version

Specifications:

• Left-Right Adjustability: Yes
• Operating Voltage:
  • 12V AC/DC
  • 24V AC/
• DC Operating Current:
  • 0.4A at 24V
  • 0.8A at 12V
• Power: 9.6W
• Gate Profile: 1-9/16 in; 2 in
• Minimal Distance Gate: Post: 3/8 inches
• IP Rating: 54
• Materials Main Parts:
  • Anodised Aluminium
  • Resin Encapsulated PCB
  • Stainless Steel
• Hours of Salt Spray Testing: 500
• Test Frequency: 500000
