Locinox Intralec Electric Strike Mortice Locks
P00011562-9005

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

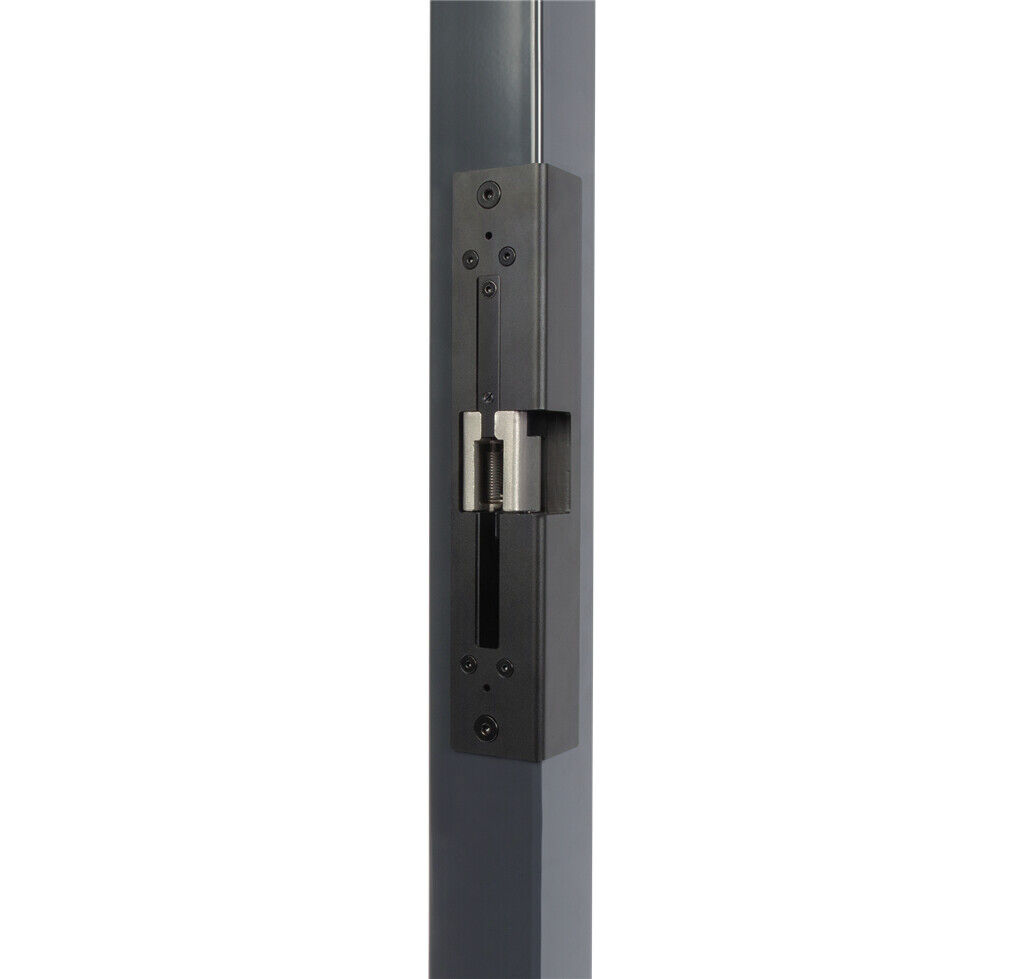

• The Locinox Built-in Electric Strike is specifically designed for gate frames with a 50mm profile. This electric strike offers a reliable and secure locking solution for your gate system. It is installed directly into the gate frame, ensuring a seamless and integrated look. The fail-oprn functionality ensures that the gate remains unlocked in case of power failure or emergencies. Enhance the access control and security of your gate with the Built-in Electric Strike.

Features:

• Built-in electric keep for Fortylock, Fiftylock and Sixtylock insert locks
• Elegant and discreet electric keep which is built-in the post
• Easy installation thanks to the patented Click-It system
• Can be installed without a strike plate and a mechanical override is possible
• 660 lbs. holding force on the latch bolt
• Fast and easy fixing with Quick-Fix
• Resistance to pressure on the latch bolt: 300 kg
• Tested up to 500 000 movements
• Fail open

Specifications:

• Left-Right Adjustability: Yes
• Voltage: 12V-24V AC/DC
• Consumption: 10W / 12V - 0.8A / 24V - 0.4A
• Power: 9.6W
• Gate Profile: 1-9/16 in; 2 in
• Minimal Distance Gate - Post: 3/8 in
• IP Rating: 54
• Materials Main Part(s):
  • Anodised Aluminium
  • Resin Encapsulated PCB
  • Stainless Steel
• Hours of Salt Spray Testing: 500
• Test Frequency: 500000
• Corrosion Resistant: Black anodized aluminum housing
