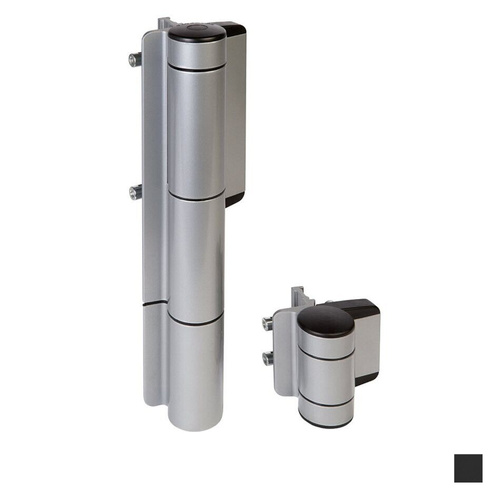

Locinox Mammoth Heavy Duty 180 Degree Hydraulic Gate Closer and Hinge

Hydraulic Gate Closers and Hinges are commonly used in residential, commercial, and industrial settings to ensure gates close automatically and securely without slamming.

Hydraulic Gate Closer and Hinge Function - automatically and smoothly closes a gate after it has been opened, providing controlled, self-closing functionality for security and convenience.

Features:

• Integrated hydraulic gate closer and hinge in one unit, ensuring smooth and consistent self-closing action
• Allows gates to open fully to 180 Degrees, providing maximum accessibility
• Adjustable closing speed, force, and final snap for customized operation
• Ensures consistent closing speed regardless of temperature variations
• Meets ADA requirements with a maximum opening force of 16 Nm (approximately 3.5 lbs) for gate widths of 3 feet or more
• Robust aluminum housing with powder-coated finish, designed for exterior use and resistant to weather conditions
• Engineered to prevent unauthorized adjustments and withstand tampering

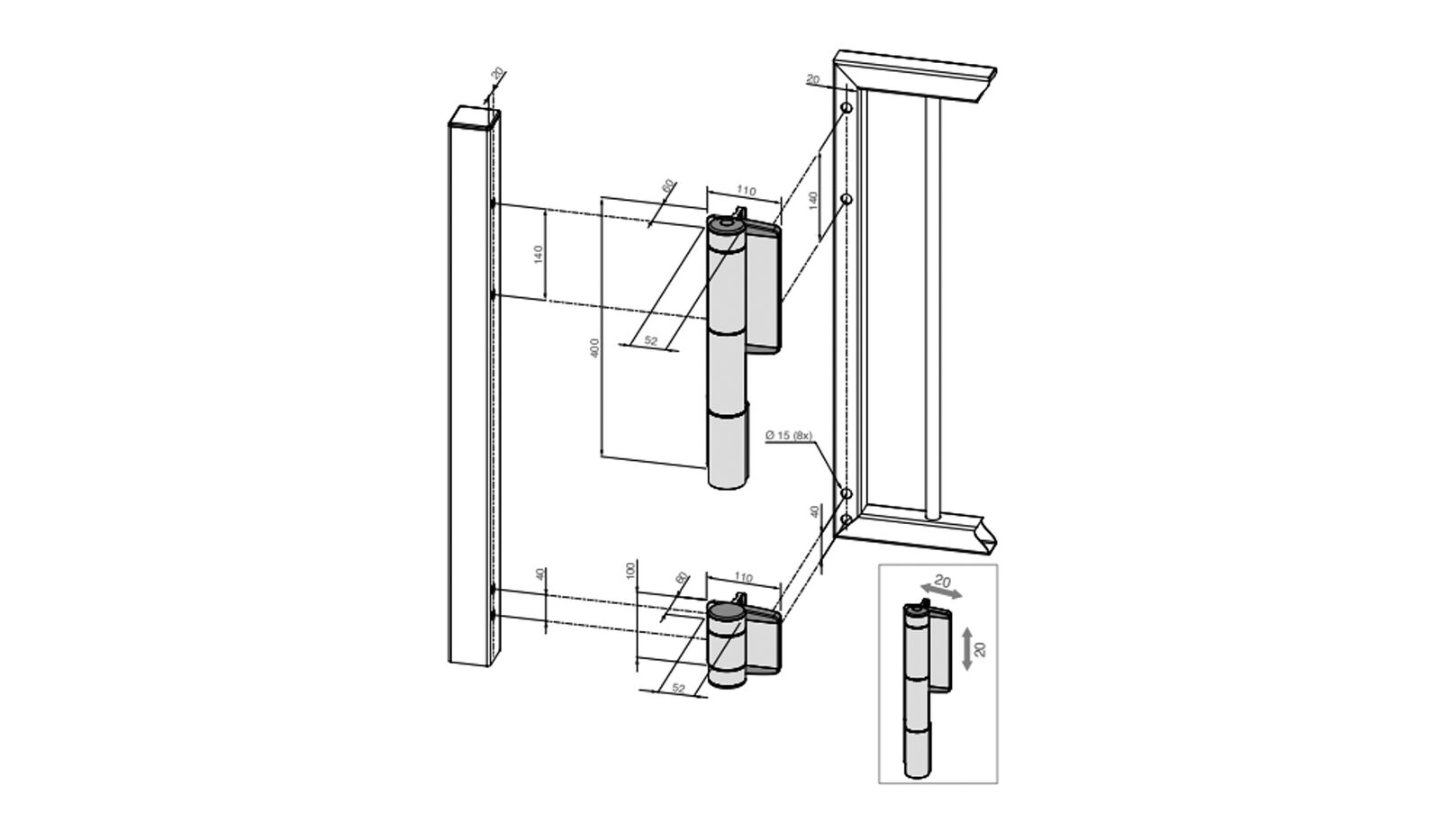

• Quick-Fix mounting system allows for fast and straightforward installation
• Suitable for both left and right-handed gates
• Designed for long-term use without the need for regular maintenance

Specifications:

• Maximum Gate Weight: Up to 330 lbs
• Maximum Gate Width: Up to 5 feet
• Opening Angle: 180 degrees
• Adjustability:
  • Height: Adjustable up 20mm
  • Gap: Installation gap ranges from 14mm to 35mm
• Material: Aluminum housing with stainless steel internal components
• Temperature Range: Operates effectively in temperatures ranging from -30 Degrees Celsius to 70 Degrees Celsius
• Cycle Testing: Tested for 500,000 cycles to ensure durability and reliability
• Available Finish:
  • Black
  • Silver
