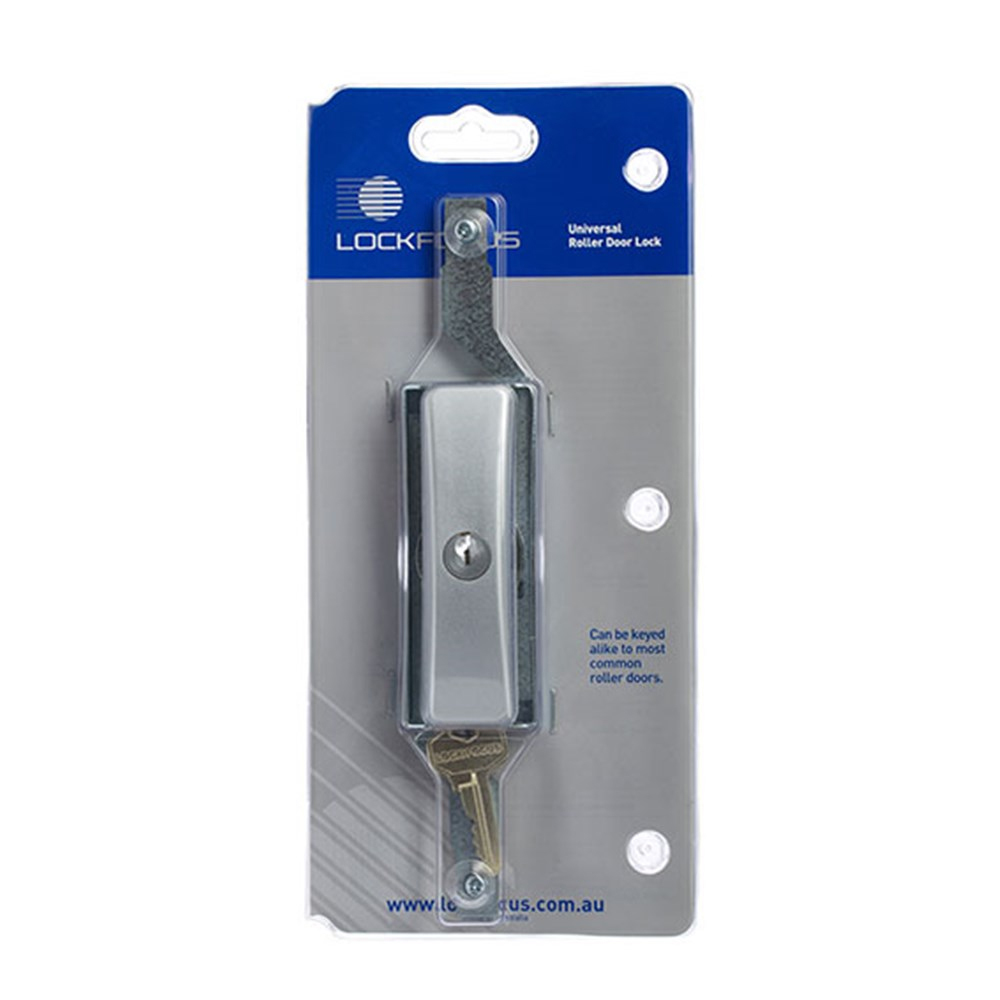

Lock Focus Rolla Lock
80000019

Rolla Lock is commonly used in both low and high-security installations. (e.g. roller doors, swinging and sliding doors)

Rolla Lock Function - a spring rests inside the lock and pushes against each latch, driving it outwards and into the notch with the angled edges. The shackle cannot be pulled out since the latch and notch are interlocked.

Features:

• Key operation from the front
• Latch operation from the rear
• Equal-length arms
• Zinc alloy diecast body.
• Incorporates the Lockwood 001 inner barrel.
• Compatible with most restricted keying systems.
• Using Silca LW4 keyway.

Specifications:

• Fascia Projection: 14mm
• Body Length with Arms Extended: 259mm
• Arm Throw: 19mm
• Fixing: Rear
• Display Packed (CAMLOCK10): Yes
• Key Profile: LW4
• Keyed To Differ (CAMLOCK8): Yes
• Equal Length Arms: Yes
• Finish: Satin Chrome
