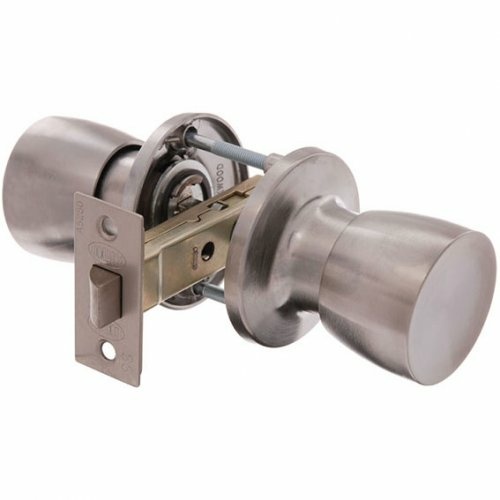

Lockwood 530 Series Passage Knob Set

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

  • Designed as a non handed, easy to install lockset. This top quality range is suitable for residential and commercial applications including office partitioning.

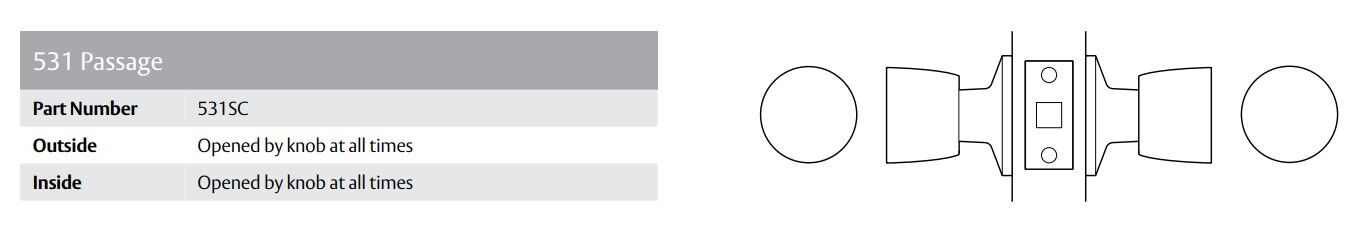

Passage Function: Opened by knob either side at all times.


  • Commercial grade passage knobset
  • Opened by knob either side at all times
  • Brass latch bolt with 13mm projection
  • Knobs and roses made of high purity zinc alloy
  • Fire rated to 2 hours

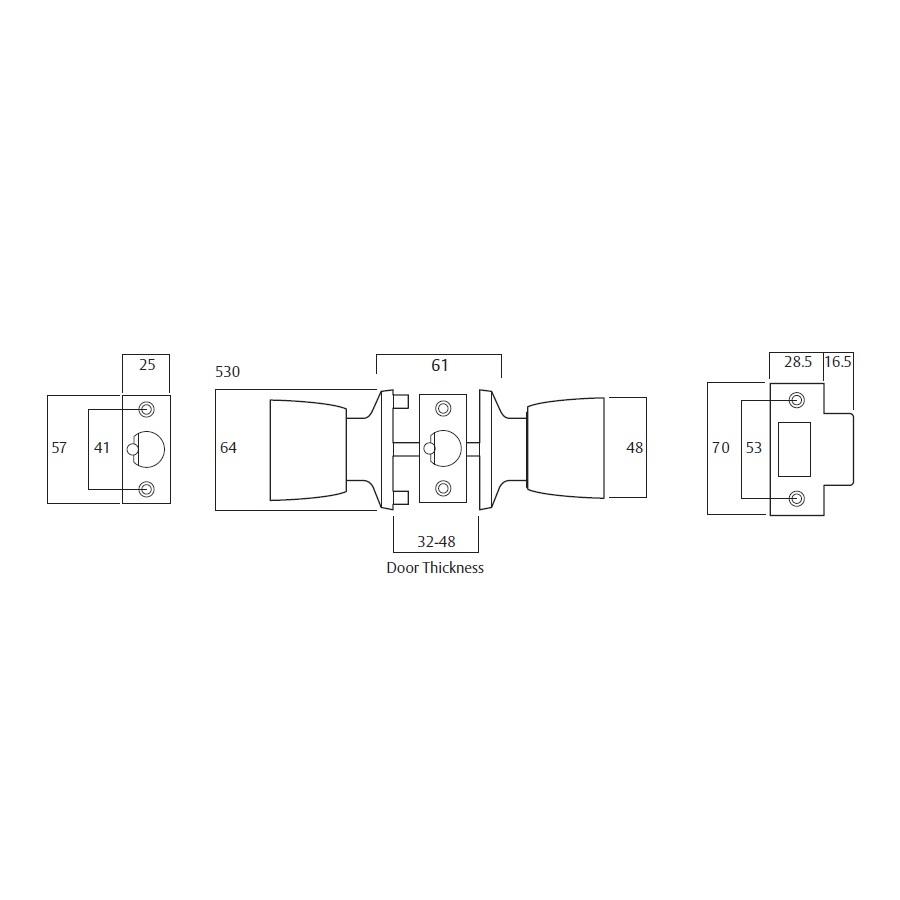

  • Door Thickness: 32-48mm
  • Backset: 60mm
  • Max. Projection: 61mm
  • Strike: 70mm x 28.5mm x 1.2mm
  • Latch: 60mm backset
  • Latch Face Plate: 57mm x 25mm
  • Door Handing: Non-handed
  • Rose Diameter: 64mm
  • Finish: Satin Chrome

Accessories (sold separately):

  • Lockwood Tubular Dead Latch 127mm (530-225SC)
  • Lockwood Rebate Kit (530-9SC)
Barcode # 9311847185241
Brand Lockwood
