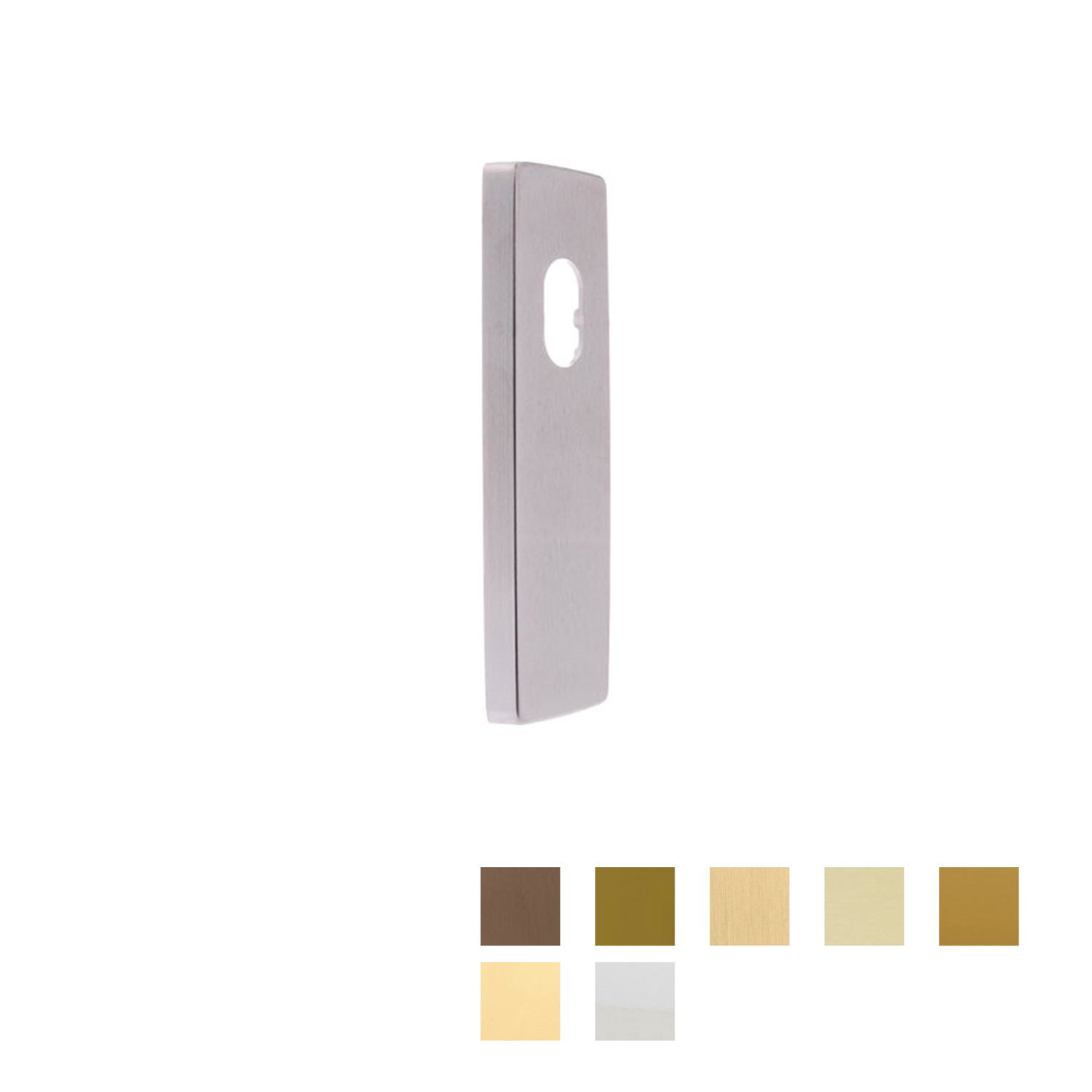

Lockwood Square End Plate with Cylinder Hole 1800

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Lockwood 1800 series exterior square end plate furniture
  • Designed for use with Lockwood 3570 series locks
  • Rectangular exterior square end plate
  • Cylinder hole only
  • Concealed fixing
  • Plates are designed to fit back to back
  • External plates supplied with fixing screws
  • Fire rated

Specifications:

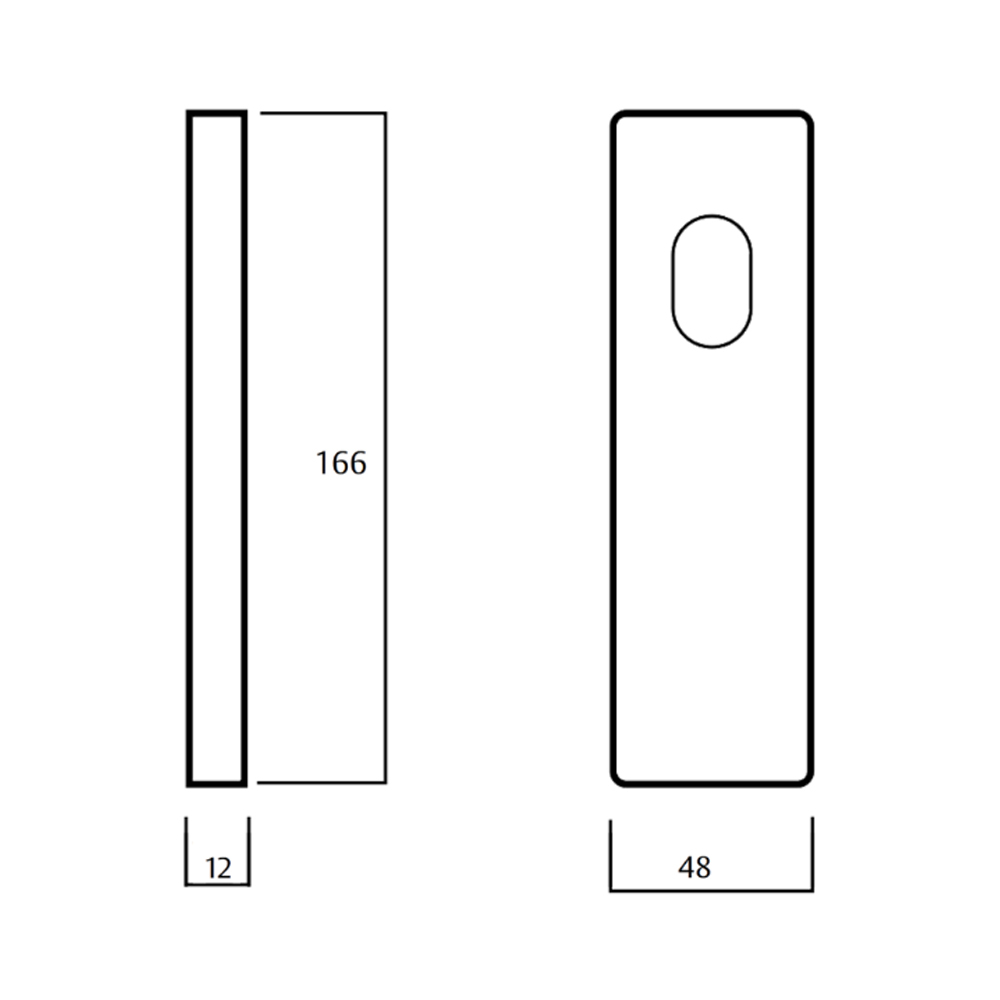

  • Plate Size: 166mm x 48mm x 12mm
  • Door Thickness: 32mm - 50mm
  • Fixing Holes Centres: 148mm
  • Internal / External: External
  • Plate Type: Square End
  • Material: Brass
  • Plate Has Oval Cylinder Hole: Yes
  • Available Finish:
    • Architectural Bronze
    • Chrome Plate
    • Oil Rubbed Bronze
    • Polished Brass
    • Polished Brass Unlacquered
    • Satin Brass
    • Satin Brass Unlacquered
    • Satin Chrome
SKU ASS1800_
Brand Lockwood
