Lockwood 1803 Square End Plate With Emergency Turn & Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.


  • Lockwood 1800 series exterior square end plate furniture
  • Designed for use with Lockwood 3570 series locks
  • Rectangular exterior square end plate
  • Slotted coin turn and 70 series lever
  • Concealed fixing
  • Plates are designed to fit back to back
  • External plates supplied with fixing screws


  • Door Thickness: 32mm - 50mm

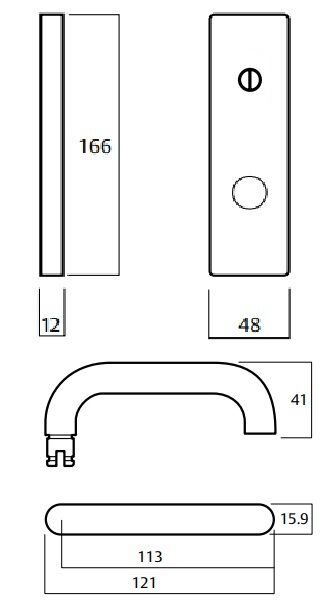

  • Plate Size: 166mm x 48mm x 12mm
  • Screw Fixing Centres: 148mm
  • Internal / External: External
  • Plate Type: Square End
  • Material: Brass
  • Plate Has A Lever: Yes
  • Plate Has An Emergency Slot Turn: Yes
  • Available Finish:
    • Chrome Plate
    • Polished Brass
    • Satin Chrome


  • Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
  • Disabled access AS1428.1 compliant lever.


SKU ASS180370_
Brand Lockwood
