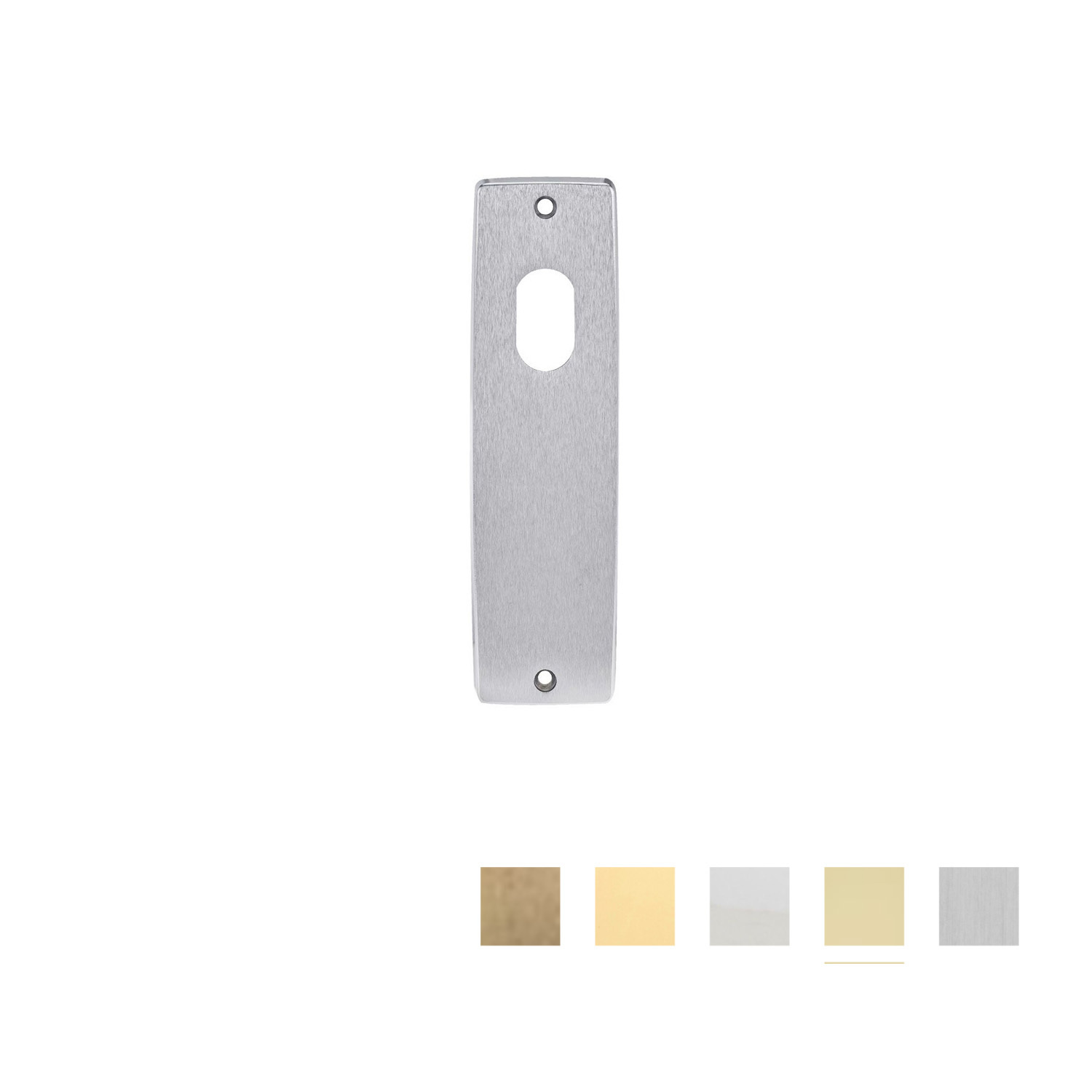

Lockwood 1900 Square End Plate Visible Fix with Cylinder Hole

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Rectangular interior square end plate
  • Cylinder hole only
  • Designed for use with Lockwood 3570 series locks
  • Visible fixing
  • Plates are designed to fit back to back
  • Suitable for use with LW184SC offset pull handle (ordered separately)
  • Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Specifications:

  • Plate Size: 166mm x 48mm x 12mm
  • Door Thickness: 32mm - 50mm
  • Screw Fixing Centres: 148mm
  • AS1428.1 Compliant Lever (AS1428.1CO): No
  • Internal / External: Internal
  • Plate Type: Square End
  • Material: Brass
  • Plate Has Oval Cylinder Hole: Yes
  • Available Finish:
    • Aged Brass
    • Chrome Plate
    • Polished Brass
    • Polished Brass Unlacquered
    • Satin Chrome
    • Satin Chrome Dual Plated



SKU ASS1900_
Brand Lockwood
