Lockwood 1901/70 Furniture Square End Plate with Cylinder and 70 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 8 business days after payment is made.

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Designed for use with Lockwood 3570 series locks
  • Rectangular interior square end plate
  • Cylinder hole and 70 series lever
  • Visible fixing
  • Plates are designed to fit back to back
  • BCA AS1428.1 -2009 compliant leverset.
  • Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets

Specifications:

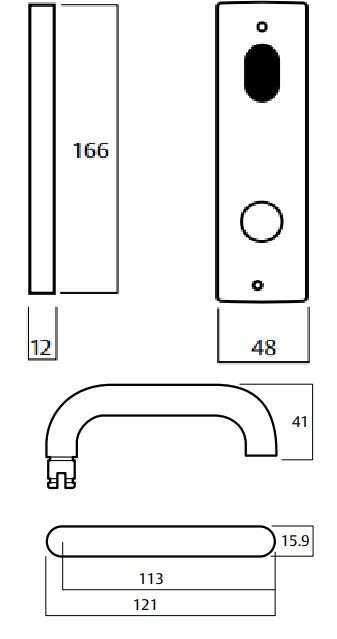

  • Plate Size: 166mm x 48mm x 12mm
  • Door Thickness: 32mm - 50mm
  • Screw Fixing Centres: 148mm
  • Internal / External: Internal
  • Plate Type: Square End
  • Fire Rated: Yes
  • Material: Brass
  • Plate Has A Lever: Yes
  • Plate Has Oval Cylinder Hole: Yes
  • Available Finish:
    • Architectural Bronze Unlacquered
    • Chrome Plate
    • Oil Rubbed Bronze
    • Polished Brass
    • Polished Brass Unlacquered
    • Satin Chrome Dual Plated
SKU ASS190170_
Brand Lockwood
