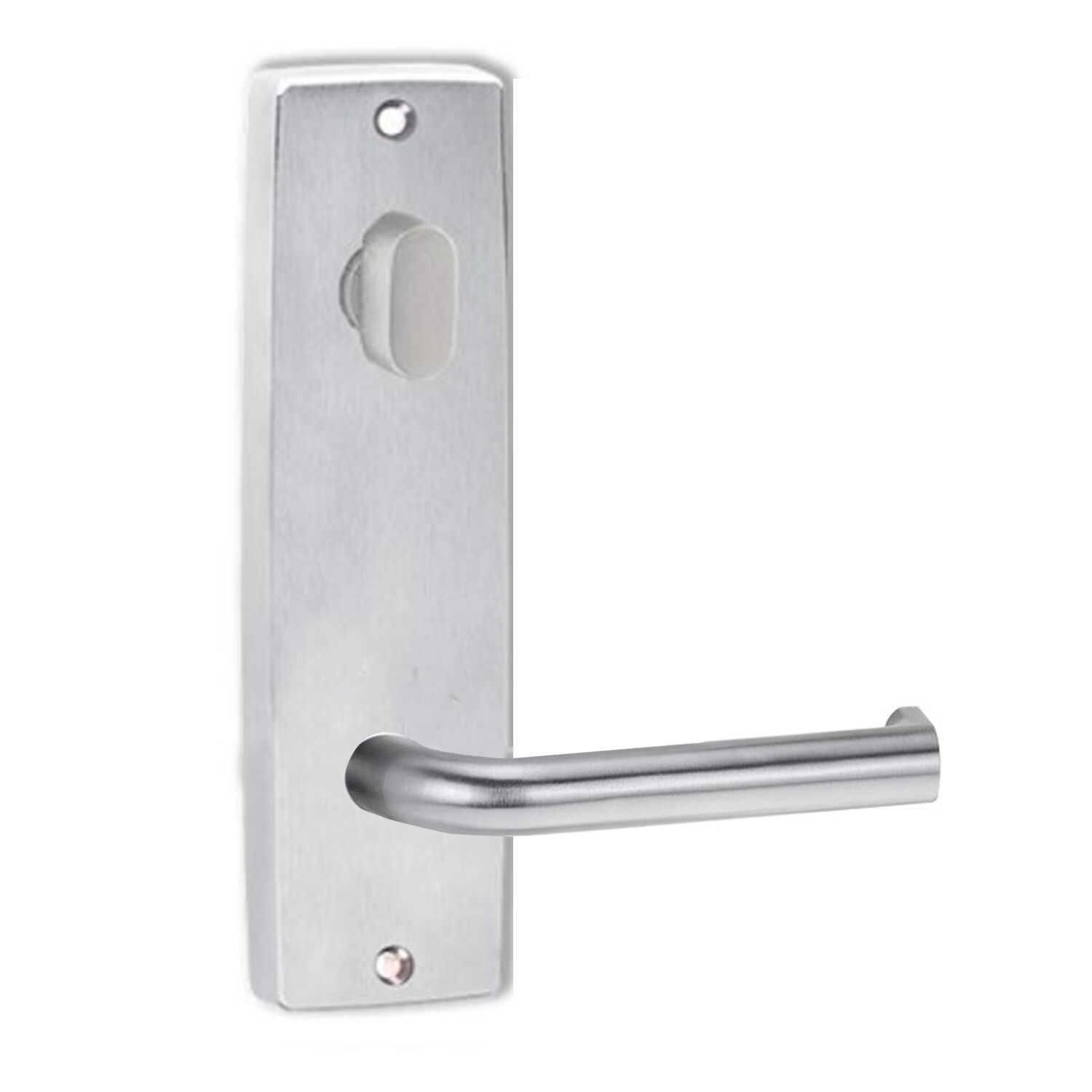

Lockwood 1904 Square End Plate With Turn and 102 Lever
1904/102SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Features:

• Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• the culmination of decades of experience in the design and manufacture of high quality door furniture
• a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements

Specifications:

• Handle Type: Lever 102
• Door Thickness: 32mm to 45mm

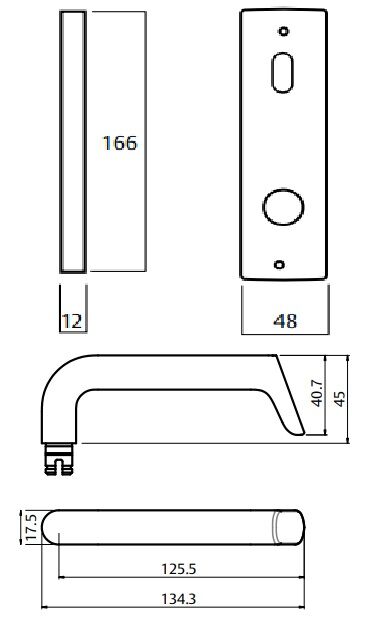

• Plate Dimension:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm
• Lever Dimensions:
  • Length: 130mm
  • Projection: 48.5mm
  • Finger clearance: 28.4mm
• Finish: Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility
